67 63 511 Removing and installing/replacing wiper motor

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete wiper console, refer to 61 61 270 REMOVING AND INSTALLING COMPLETE WIPER CONSOLE

Unfasten nut and remove drive crank with linkage.

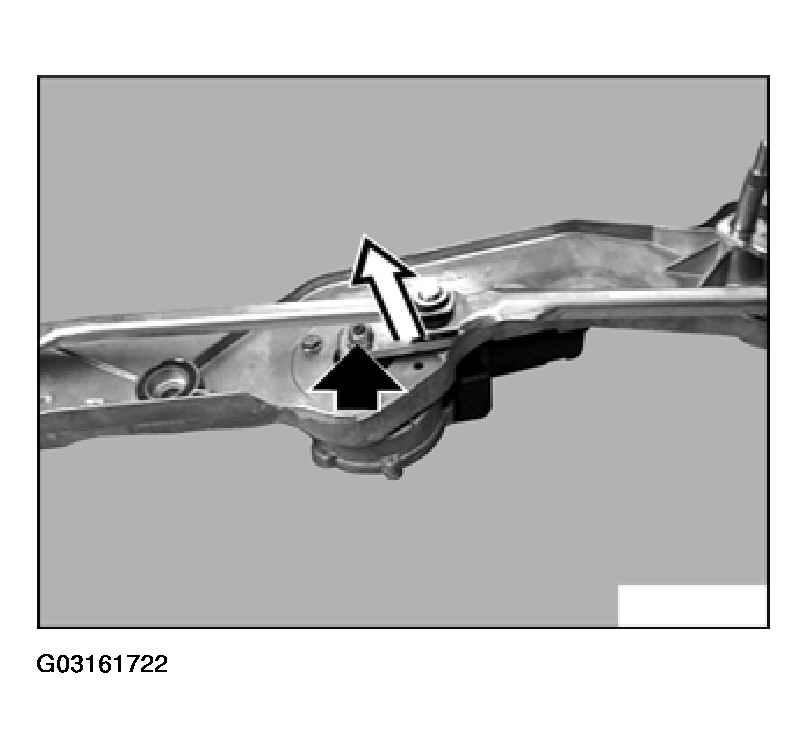

Fig 1: Removing Drive Crank With Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove wiper motor from console.

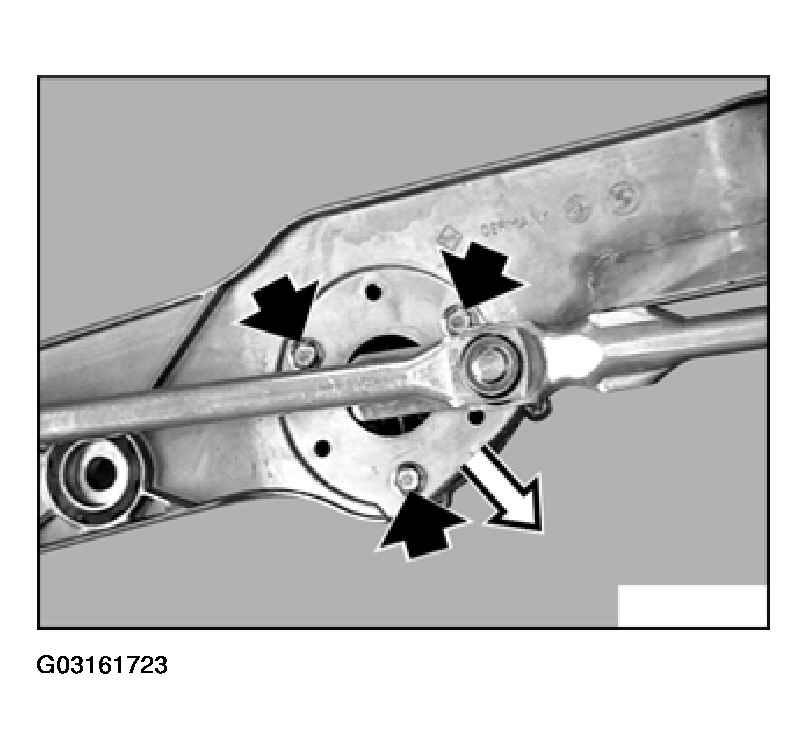

Fig 2: Removing Wiper Motor From Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install wiper motor together with console. Fit connector and run wiper in rest position. Reinsert connector.

Align wiper linkage in one line, attach drive crank to wiper shaft and tighten down. Comply with tightening torque, refer to 61 61 4AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

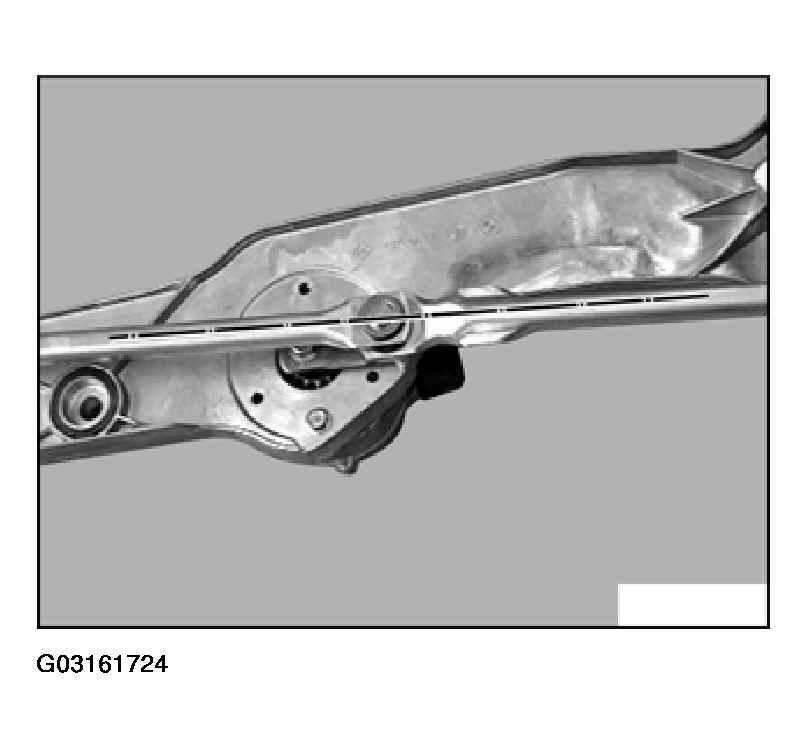

Fig 3: Aligning Wiper Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Refit the connector.
