67 61 510 Removing and installing or replacing drive with gear for actuating slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks :

Remove ceiling light, refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE INTERIOR LIGHT .

Remove panel and disconnect plug connection.

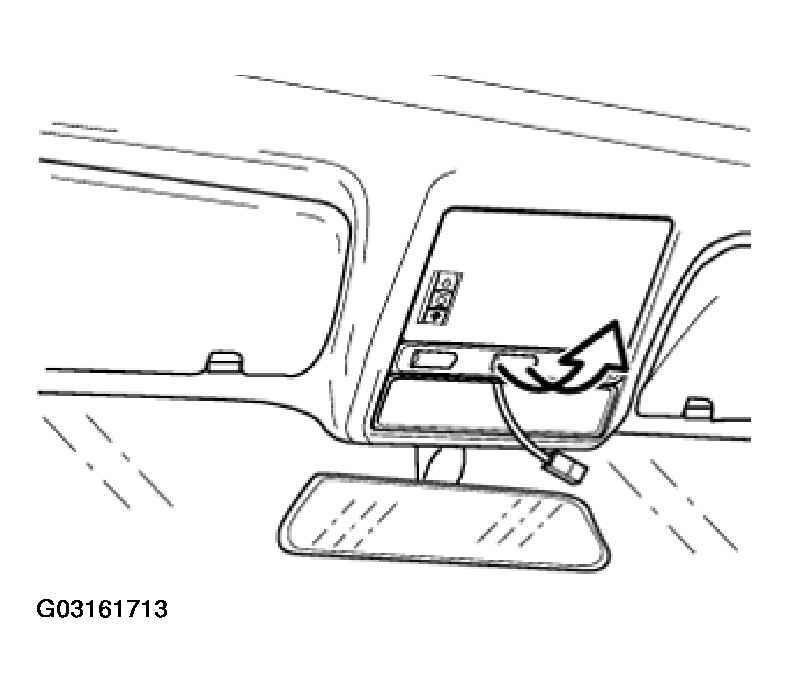

Fig 1: Removing Panel And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

Release screws (1). Tightening torque, refer to 54 13 1AZ in SLIDE/TILT SUNROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

NOTE: Screws (1) are micro-encapsulated.

Lower drive with gear for actuating slide/tilt sunroof (2).

Unlock plug connection (3), disconnect and remove drive with gear for actuating slide/tilt sunroof (2).

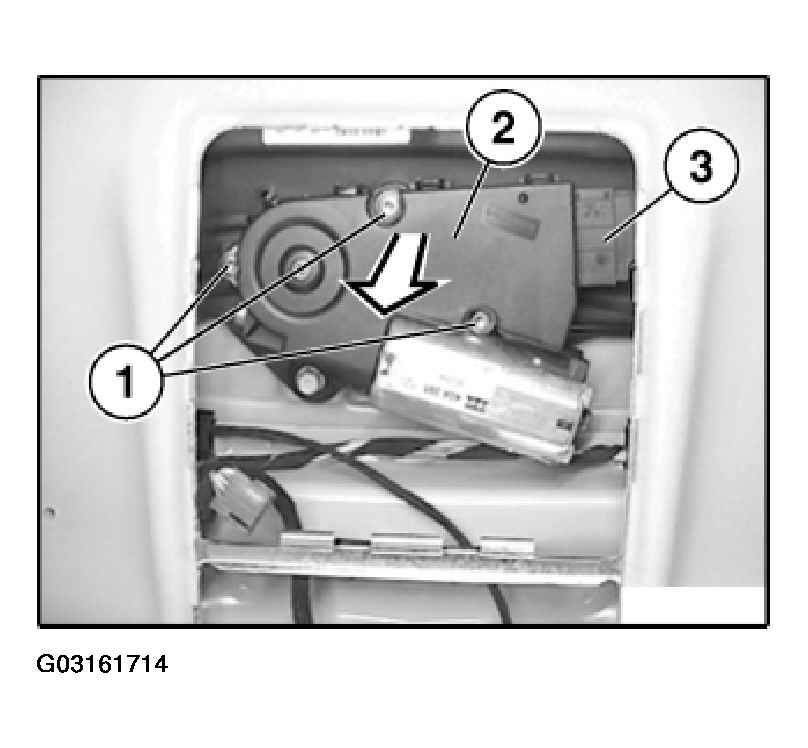

Fig 2: Removing Drive With Gear For Actuating Slide/Tilt Sunroof Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) in gear teeth.

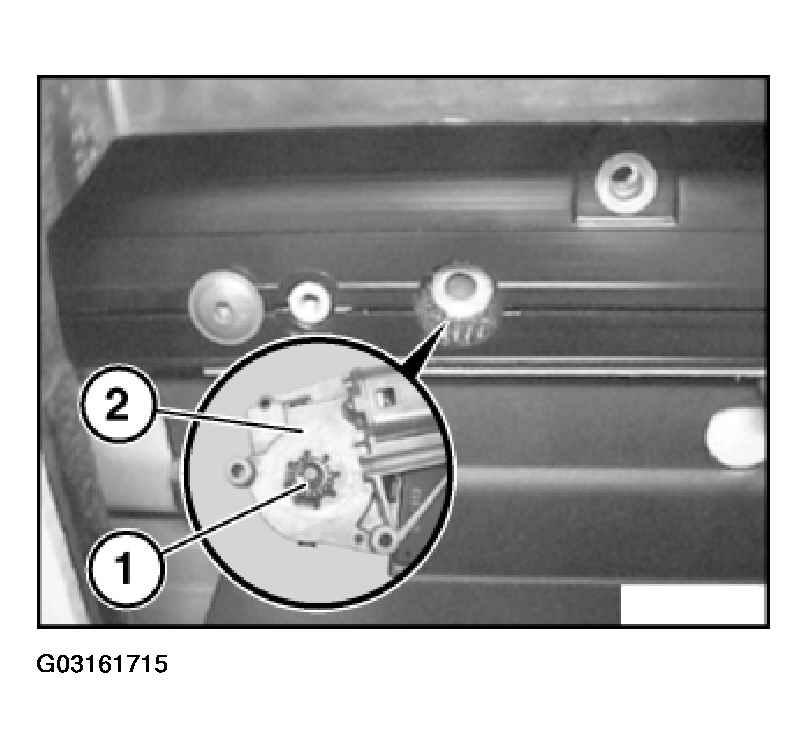

Fig 3: Installing Gear Wheel Of Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After installing/coding drive for actuating slide/tilt sunroof:

Initialise slide/tilt sunroof, refer to 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOF (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
