65 52 013 Removing and installing complete on-board monitor (widescreen)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

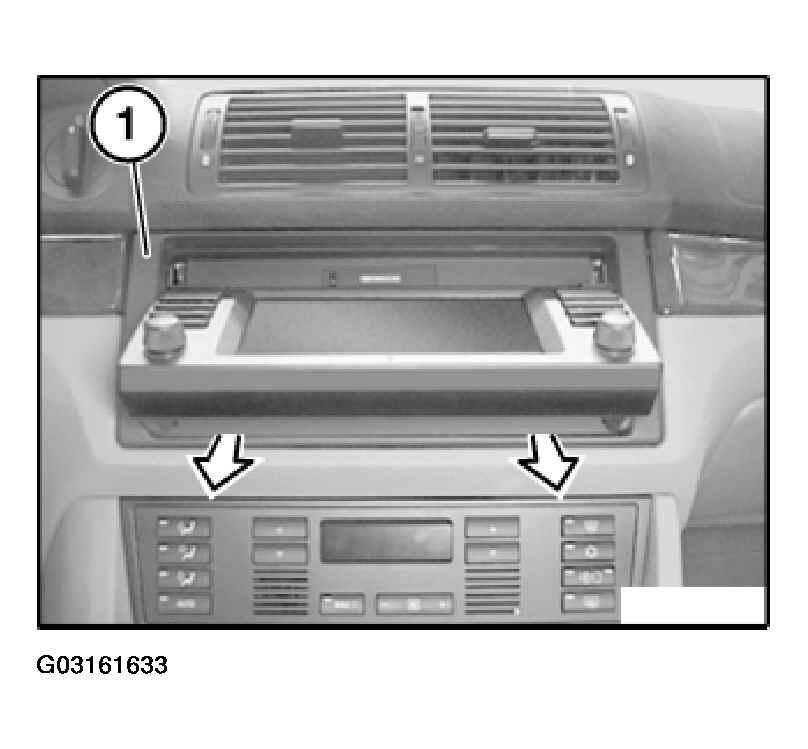

Lower panel for on-board monitor (control panel).

NOTE: Panel for on-board monitor (control panel) returns to its initial position after 15 seconds.

Detach frame for on-board monitor (1) in direction of arrow.

Fig 1: Detaching Frame For On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

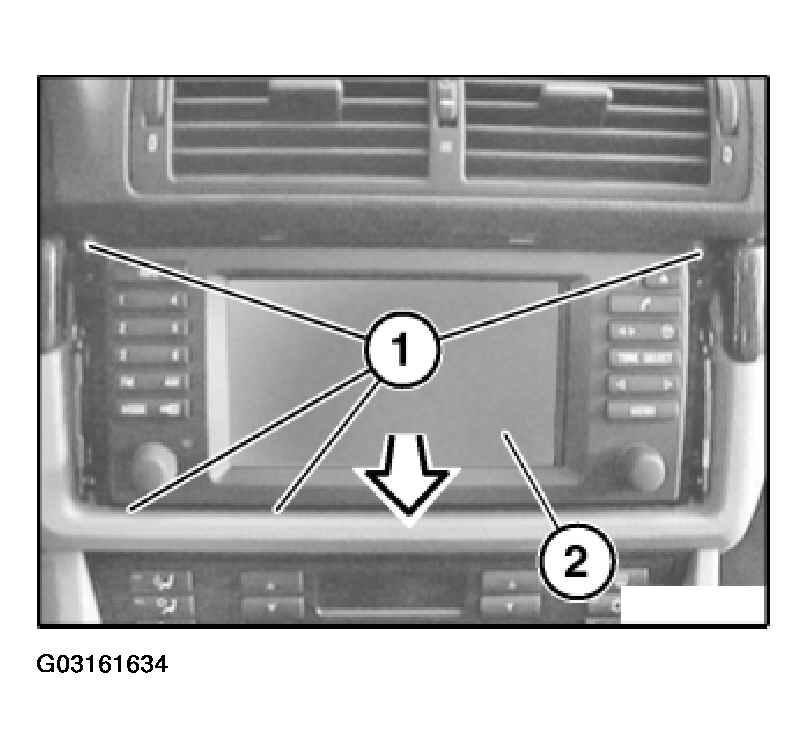

Release screws (1).

Pull out complete on-board monitor (2) in direction of arrow.

Fig 2: Pulling On-Board Monitor Out

Courtesy of BMW OF NORTH AMERICA, INC.

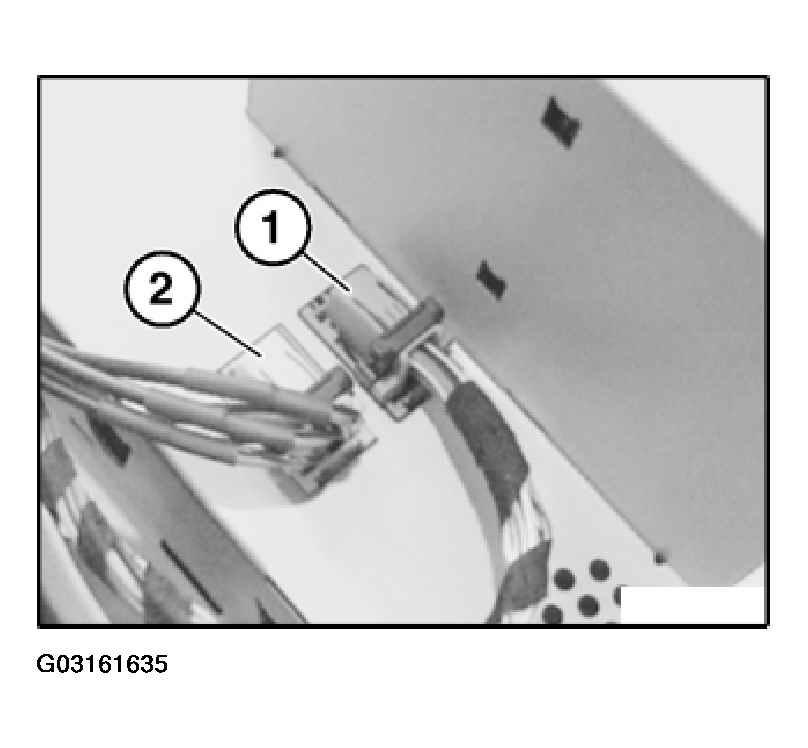

Unlock plug connections (1) and (2) and disconnect.

Remove complete on-board monitor.

Fig 3: Removing On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.
