65 13 071 Removing and installing or replacing loudspeakers (rear shelf): Installation:

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip loudspeaker frame and check position of foam rubber. Foam rubber must not be shifted towards speaker diaphragm.

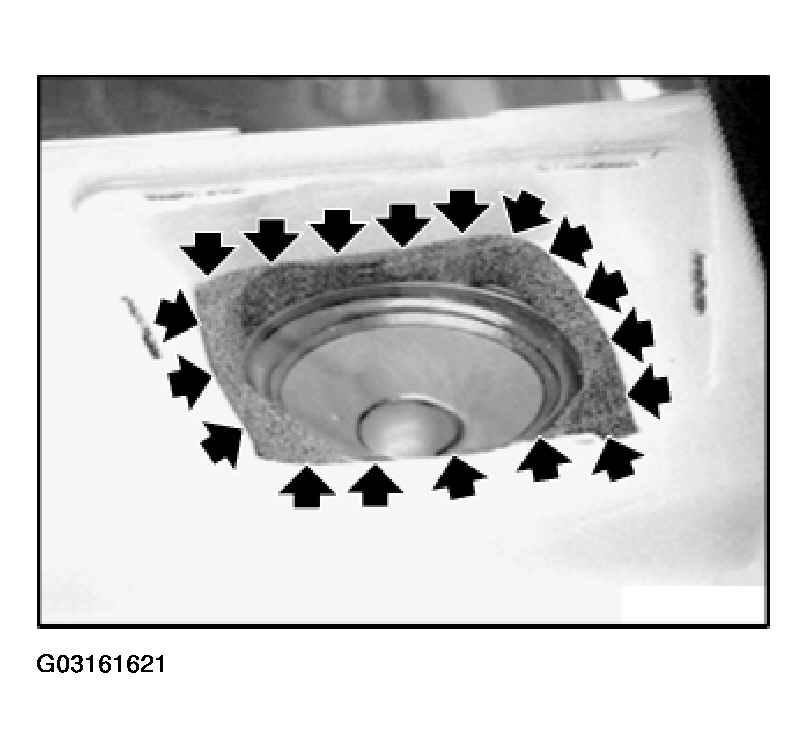

Fig 1: Checking Position Of Foam Rubber

Courtesy of BMW OF NORTH AMERICA, INC.
