65 81 010 Removing and installing/replacing multi-information display (MID or IRIS): Mid

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

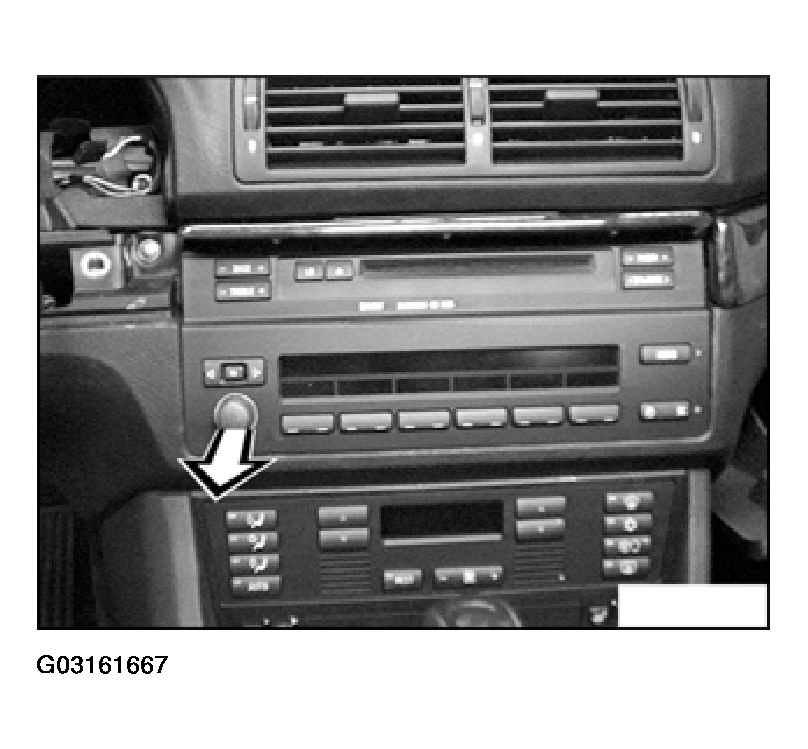

Remove volume control button.

Fig 1: Removing Volume Control Button (MID)

Courtesy of BMW OF NORTH AMERICA, INC.

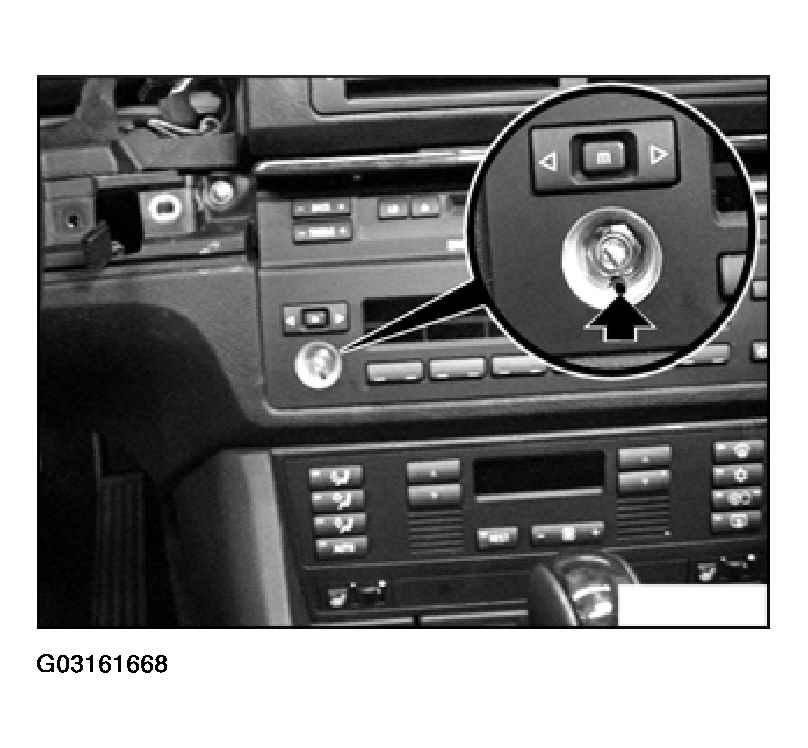

Twist detent with Allen key approx. 90 ° and fold out MID.

Fig 2: Folding Out MID

Courtesy of BMW OF NORTH AMERICA, INC.

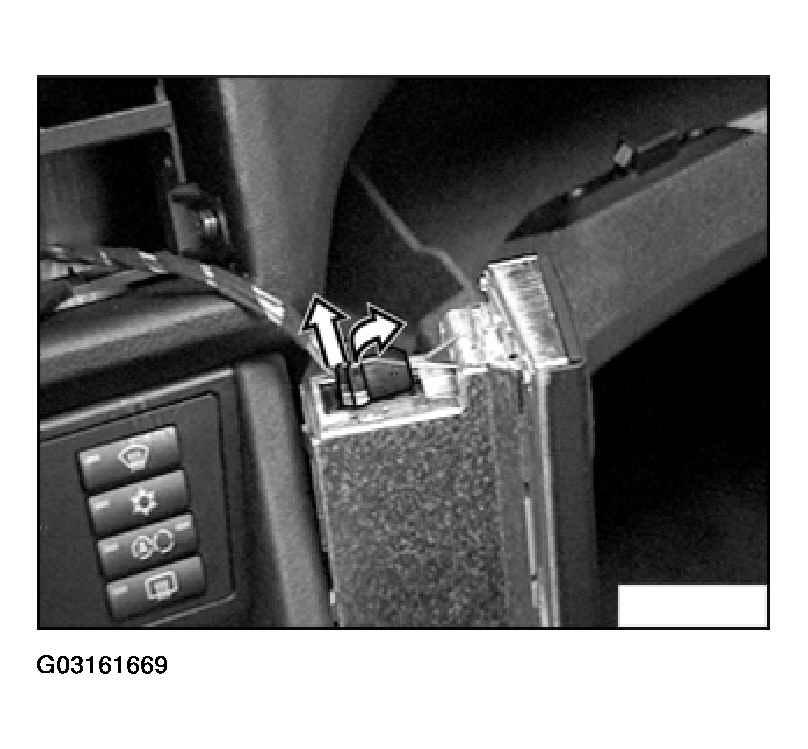

Remove connector

Fig 3: Removing MID

Courtesy of BMW OF NORTH AMERICA, INC.
