65 81 010 Removing and installing/replacing multi-information display (MID or IRIS): Iris

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

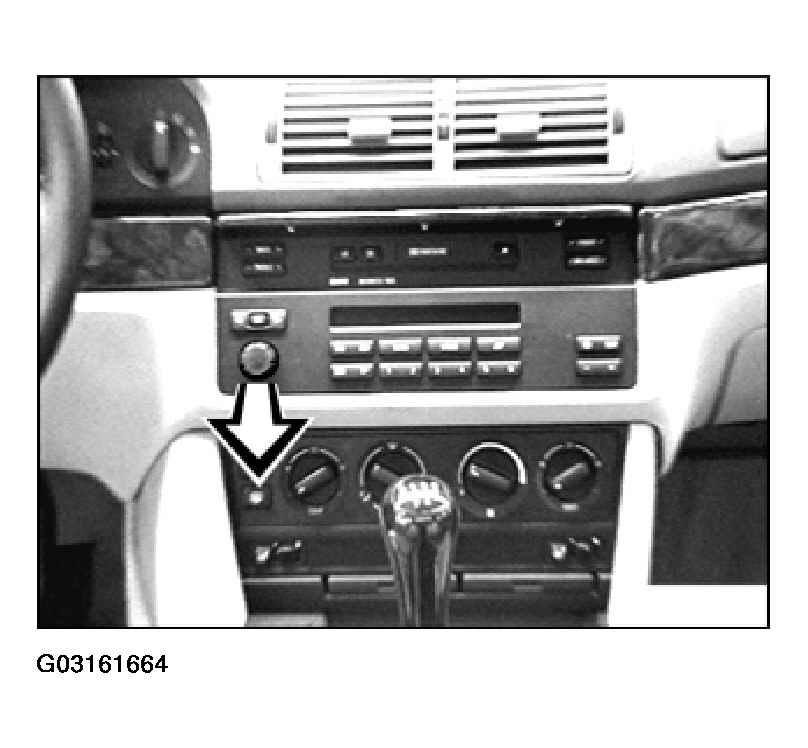

Remove volume control button.

Fig 1: Removing Volume Control Button (IRIS)

Courtesy of BMW OF NORTH AMERICA, INC.

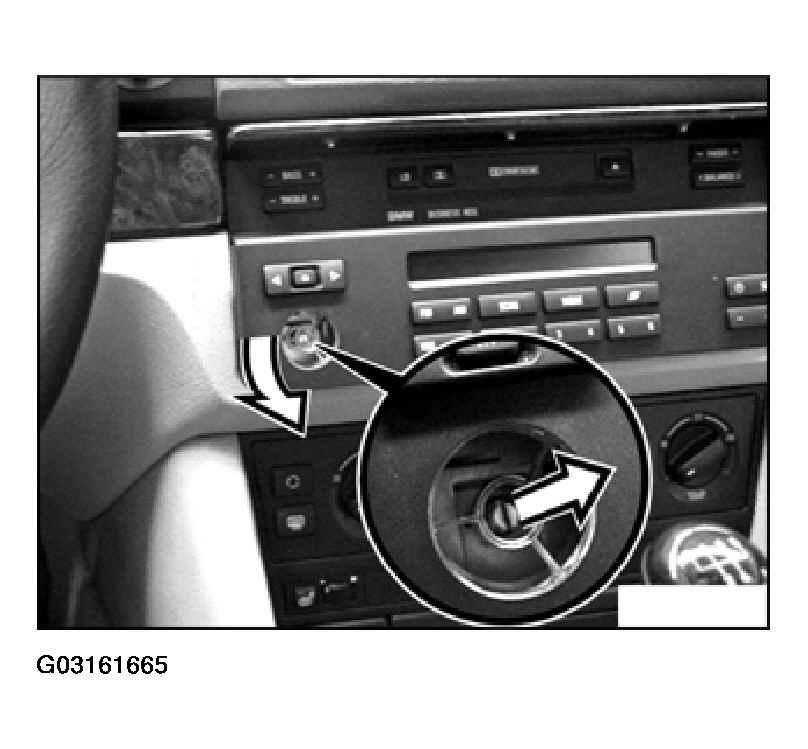

Press detent to one side and fold out IRIS.

Fig 2: Pressing Detent To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

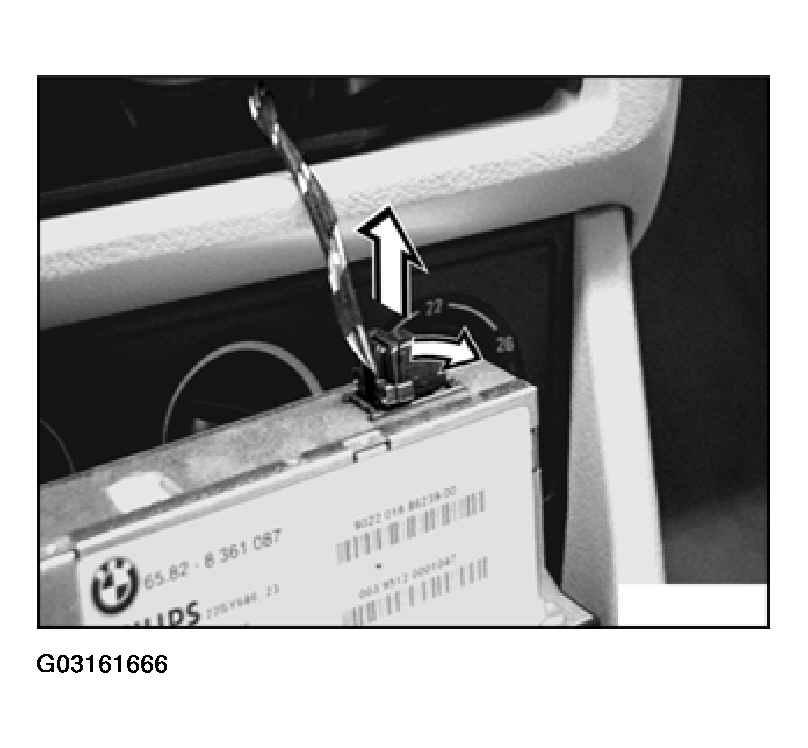

Remove connector

Fig 3: Removing IRIS

Courtesy of BMW OF NORTH AMERICA, INC.
