Radio without MID or IRIS

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

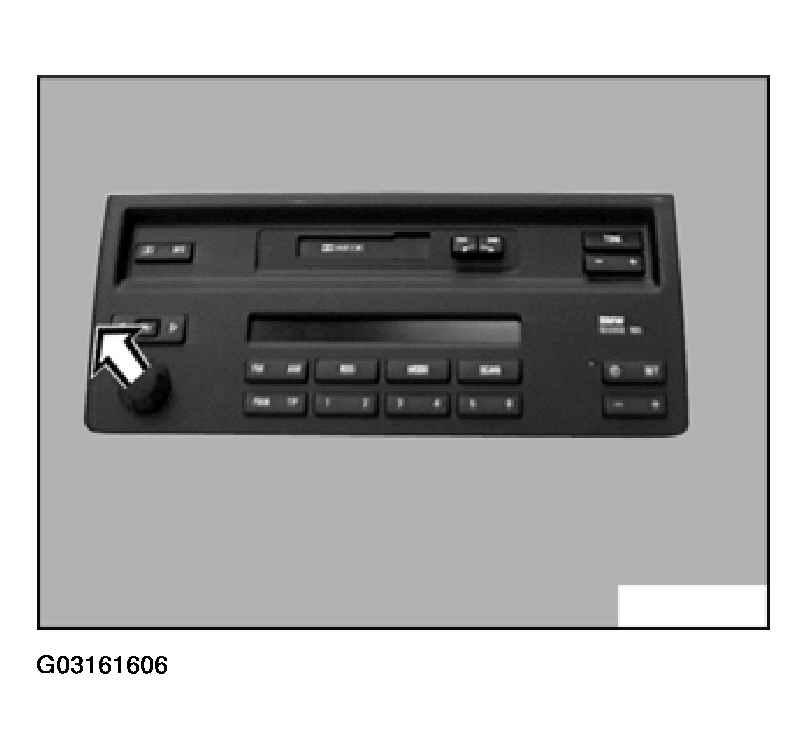

Remove knob from volume control.

Fig 1: Removing Volume Control Knob

Courtesy of BMW OF NORTH AMERICA, INC.

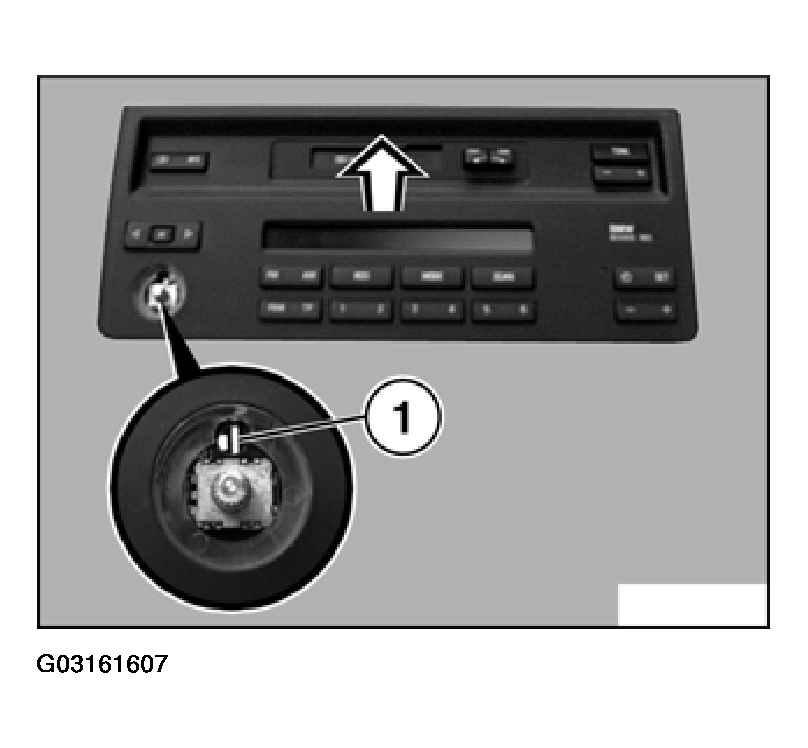

Insert screwdriver (5.5) into slot (1) approx. 1 mm and turn through 90 °.

Fig 2: Inserting Screwdriver Into Slot

Courtesy of BMW OF NORTH AMERICA, INC.

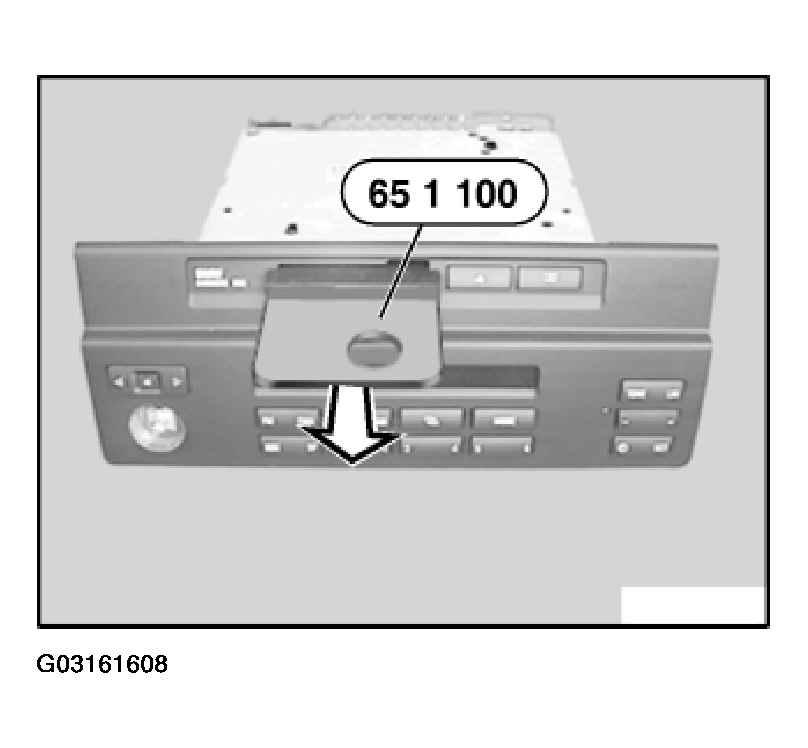

Hook special tool 65 1 100 into cassette socket and pull out radio.

Fig 3: Removing Radio

Courtesy of BMW OF NORTH AMERICA, INC.

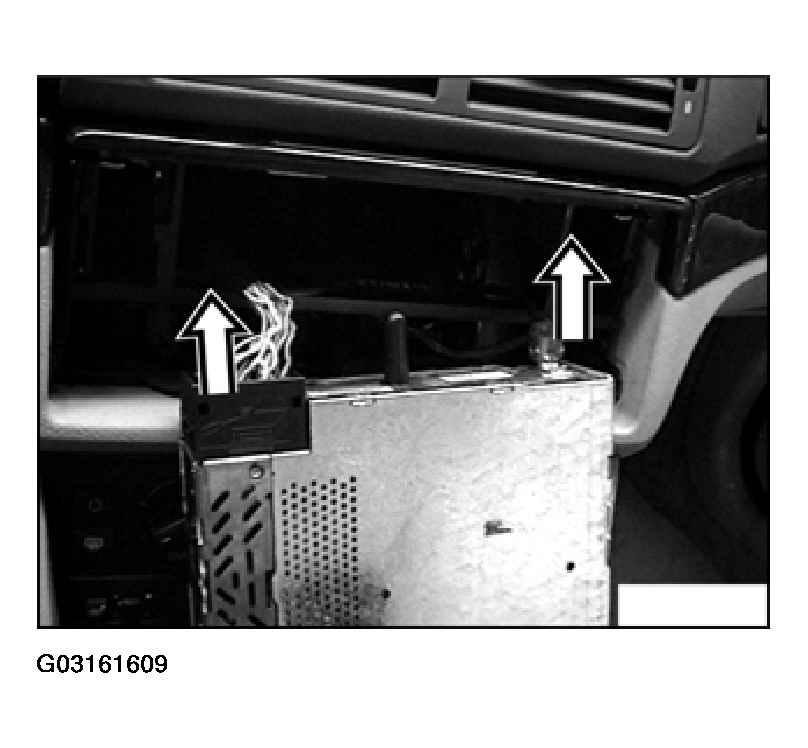

Unfasten plug connection.

Fig 4: Unfastening Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
