65 75 570 Removing and installing/replacing control unit for radio interior protection

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip and remove cover.

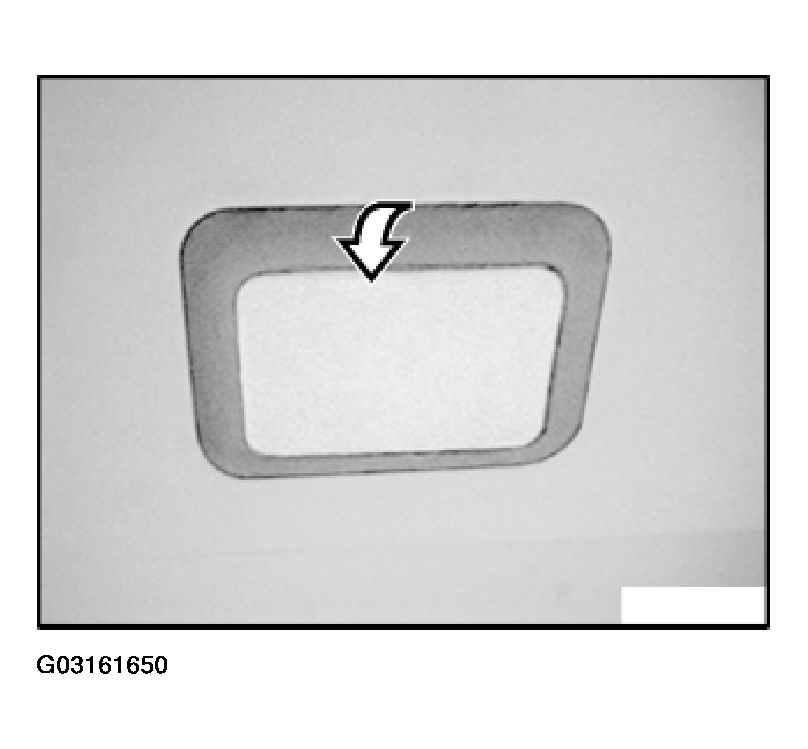

Fig 1: Removing Radio Interior Protection Control Unit Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and allow control unit to hang down.

IMPORTANT: The old control unit can be installed without the shield plate. The shield plate provided must always be installed.

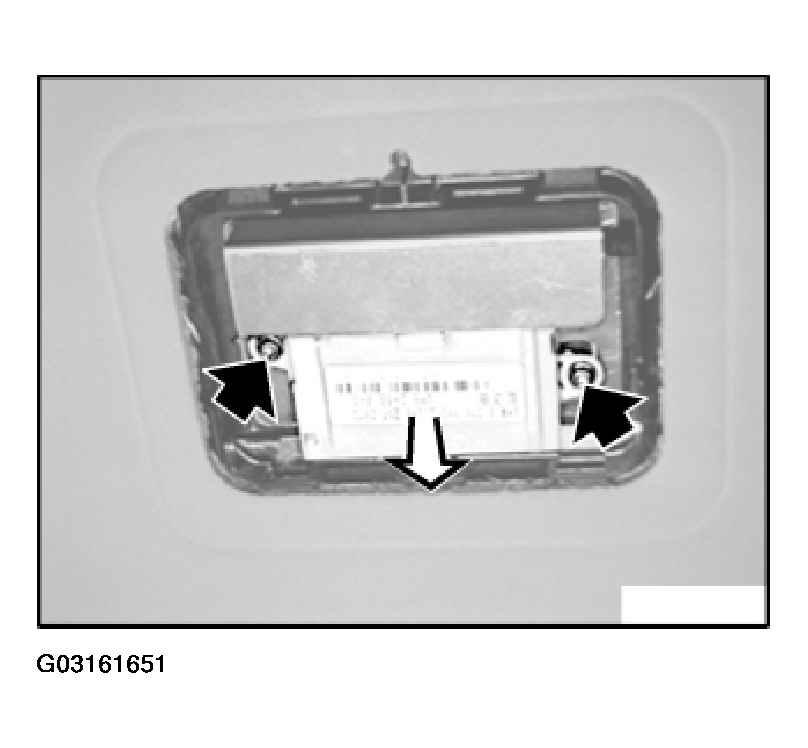

Fig 2: Identifying Radio Interior Protection Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connector and thread out cable.

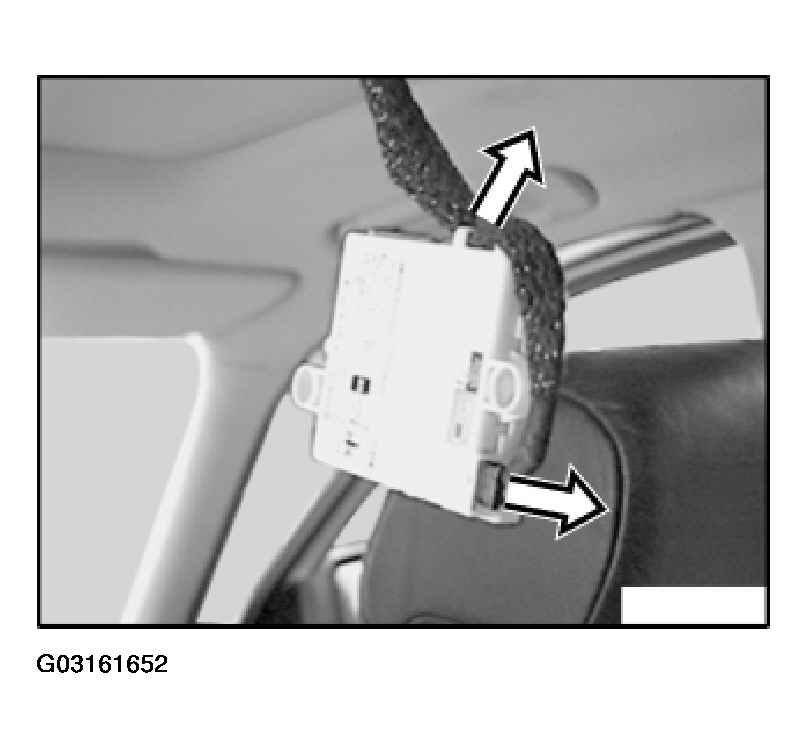

Fig 3: Removing Radio Interior Protection Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
