64 22 161 Removing and installing/replacing center fresh-air grille

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Pull out lower glove compartment trim toward rear.

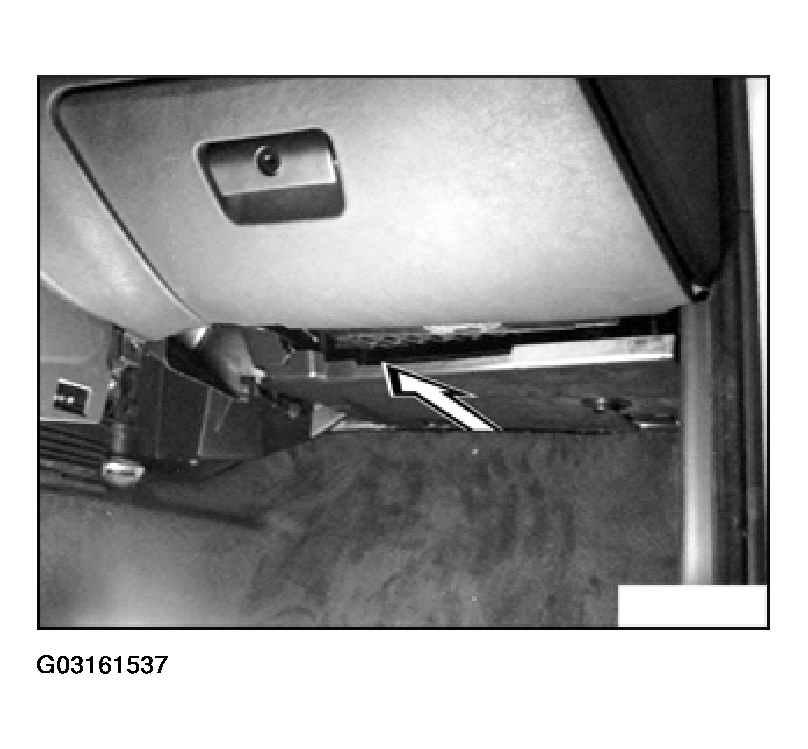

Fig 1: Pulling Out Lower Glove Compartment Trim

G03161537

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip damper and retaining strap and fold down glove compartment.

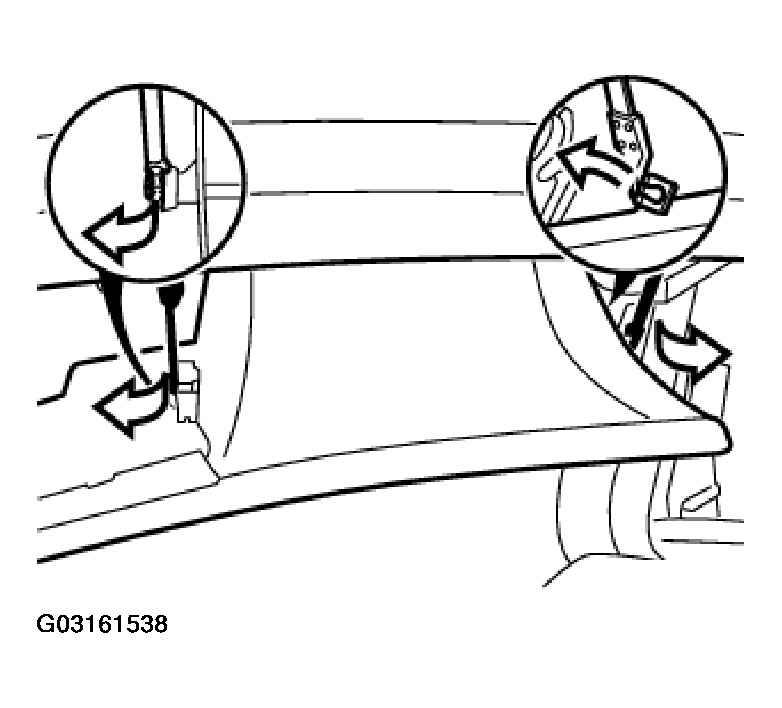

Fig 2: Uncliping Damper And Retaining Strap

G03161538

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and take off trim (2).

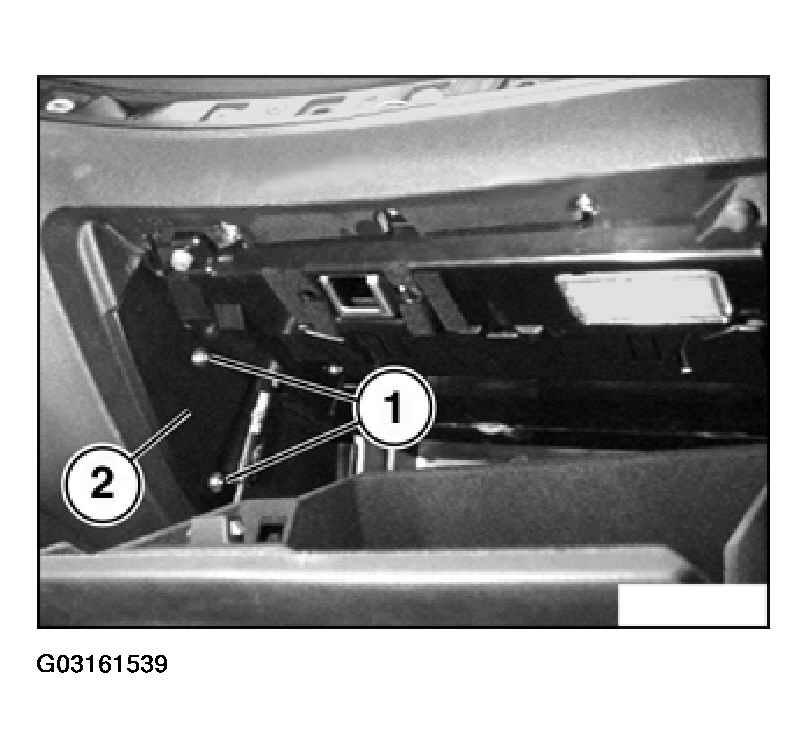

Fig 3: Removing Trim

G03161539

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable for mixing flap.

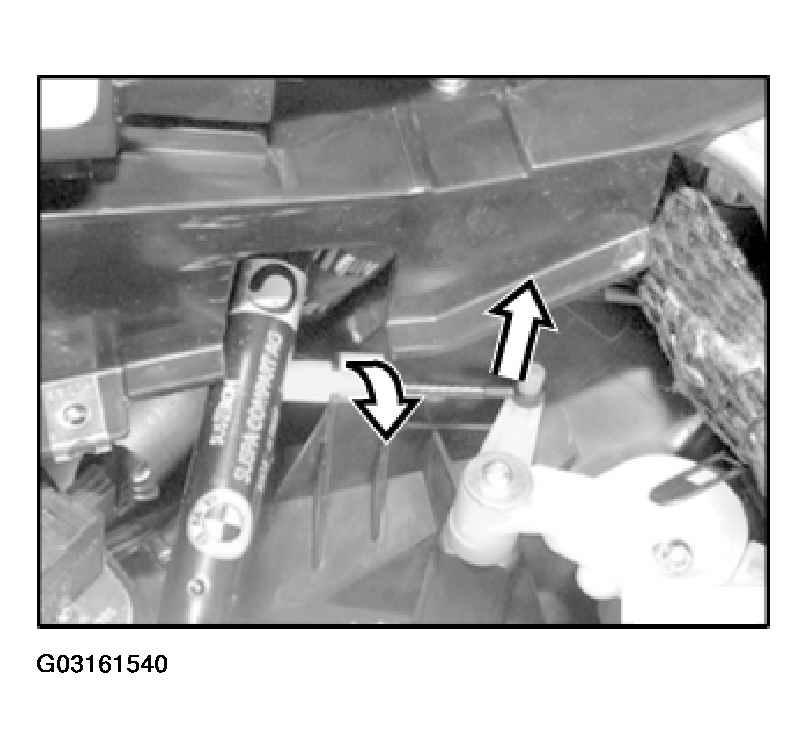

Fig 4: Unhooking Mixing Flap Bowden Cable

G03161540

Courtesy of BMW OF NORTH AMERICA, INC.

Guide special tool 00 9 300 from center at an angle outward under retaining hooks (1). This releases retaining hooks.

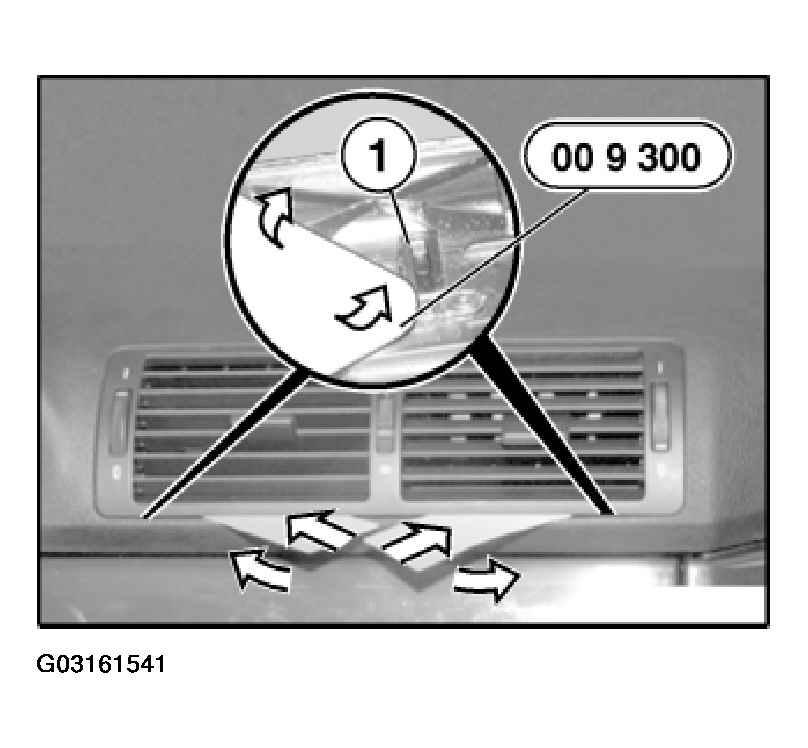

Fig 5: Releasing Center Fresh-Air Grill Retaining Hooks

G03161541

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out lower fresh-air grill using special tools 00 9 300 and pull out with Bowden cable. Disconnect cable.

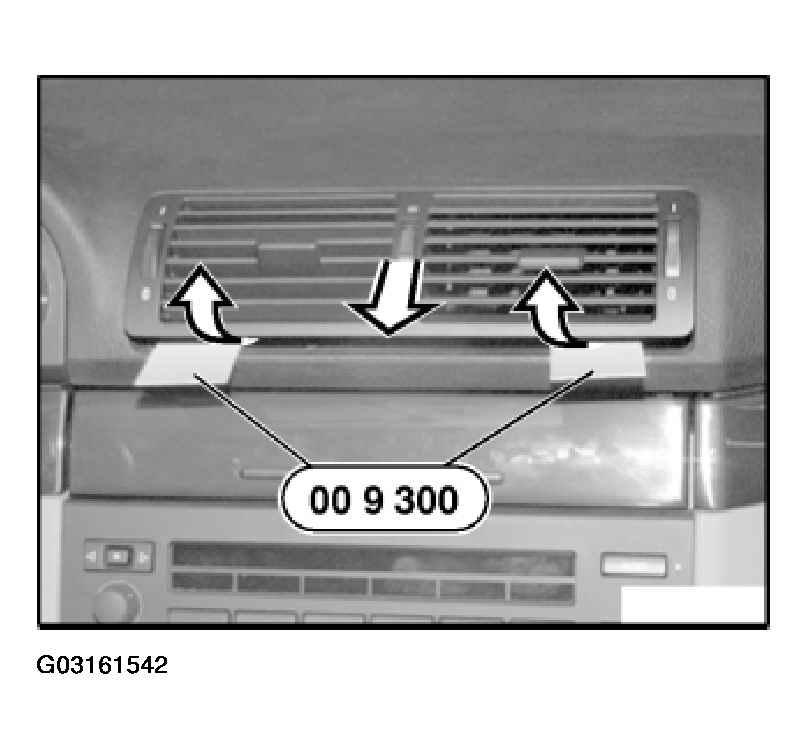

Fig 6: Removing Center Fresh-Air Grill

G03161542

Courtesy of BMW OF NORTH AMERICA, INC.
