64 11 829 Replacing servodrive of ventilation flaps (automatic A/C)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

NOTE: Servodrive is located behind steering spindle.

Unclip lock (1) and pull out servodrive (2) in direction of arrow.

Disconnect connector.

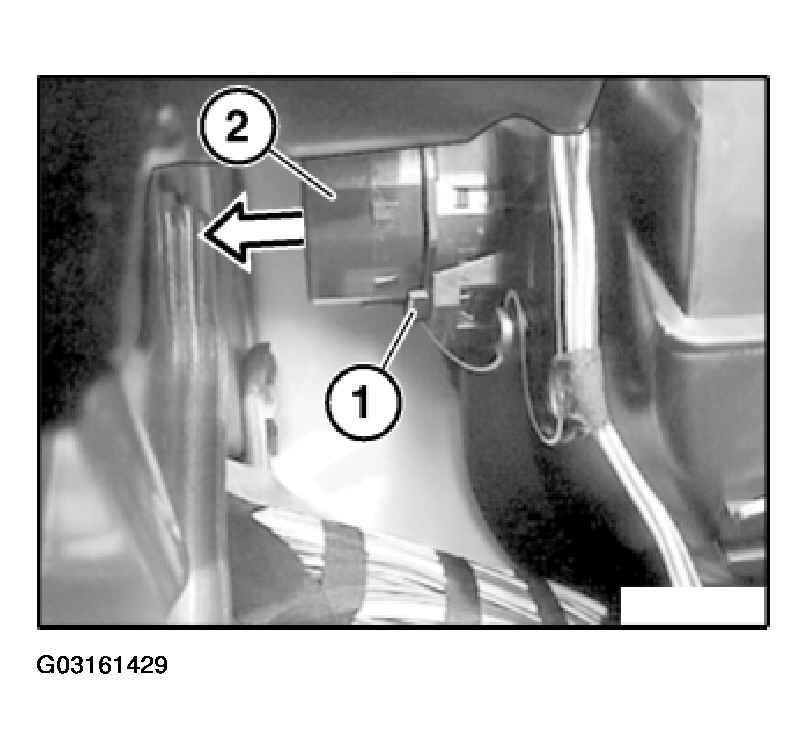

Fig 1: Removing Ventilation Flap Servodrive (Automatic A/C)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of ventilation flaps to position of servodrive.

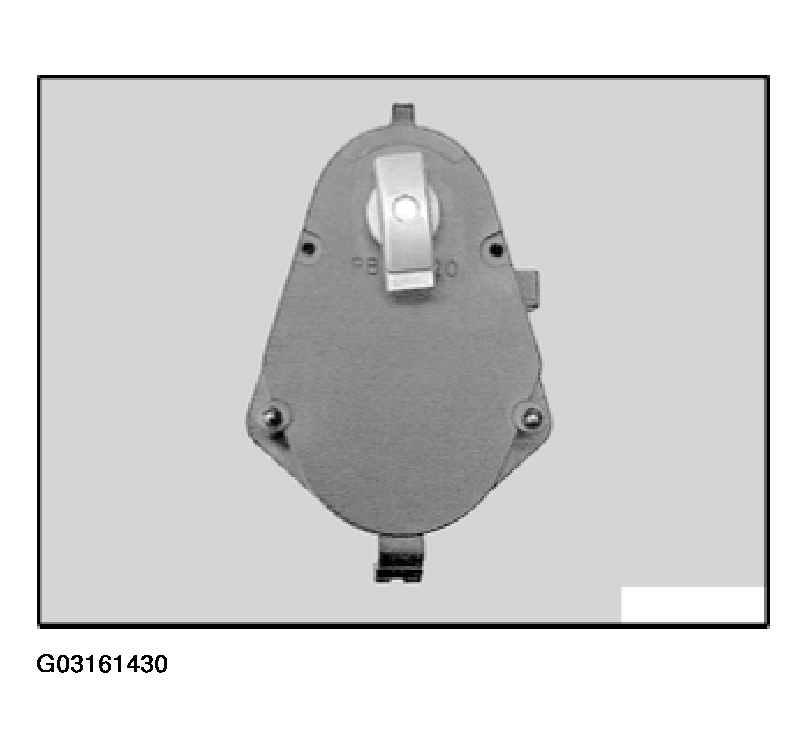

Fig 2: Identifying Servodrive Installed Position

Courtesy of BMW OF NORTH AMERICA, INC.
