64 11 772 Removing and installing/replacing the rear fan completely

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

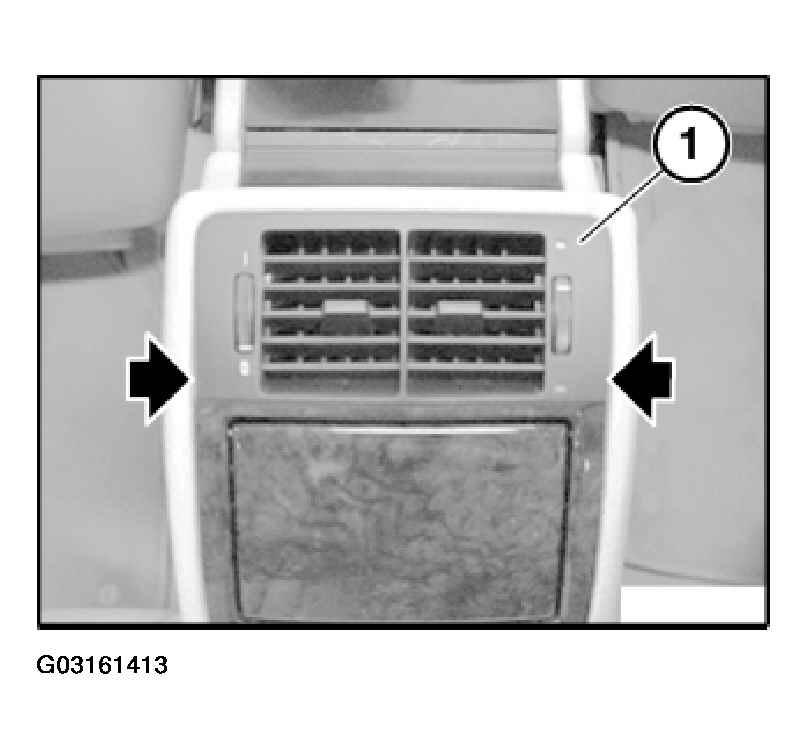

Unclip fresh air grill (1) at sides and pull out.

Fig 1: Pulling Out Fresh Air Grill

G03161413

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When inserting fresh air grill: do not lay cables in front of air duct.

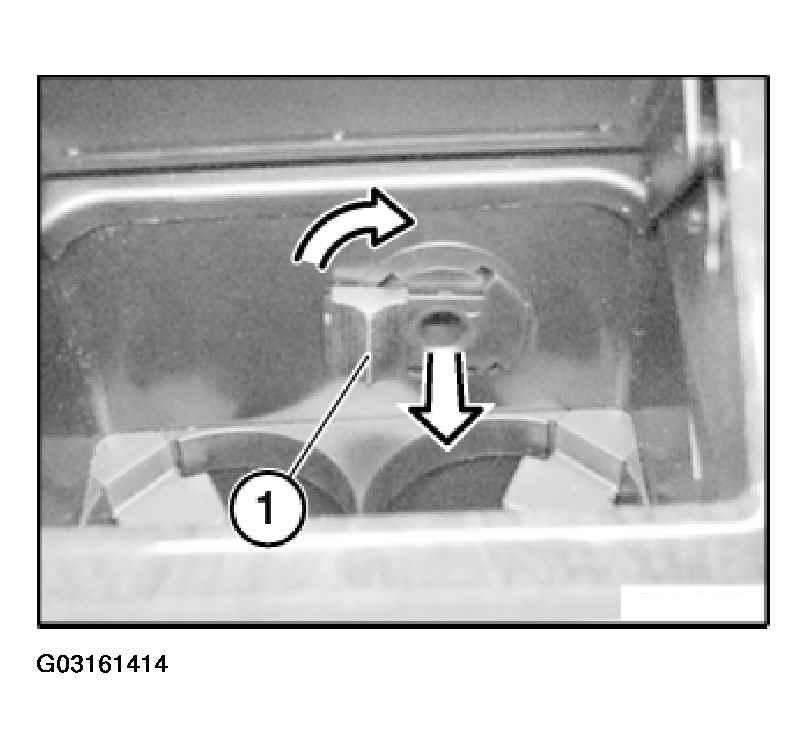

Turn adapter (1) clockwise, unlock and pull out towards rear.

Fig 2: Pulling Out Adapter

G03161414

Courtesy of BMW OF NORTH AMERICA, INC.

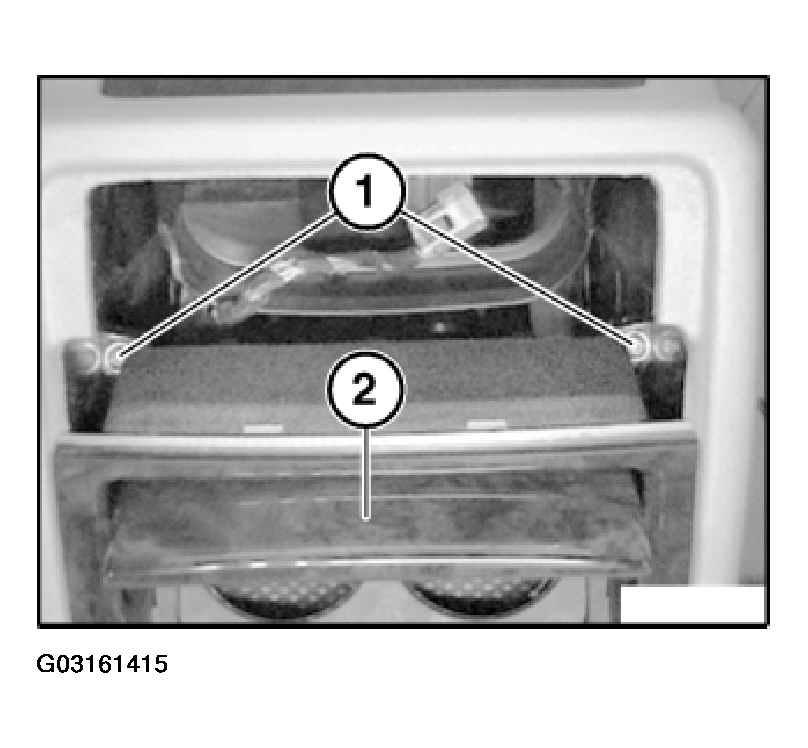

Unscrew bolts (1). Pull out storage tray (2) towards top.

Fig 3: Pulling Out Storage Tray

G03161415

Courtesy of BMW OF NORTH AMERICA, INC.

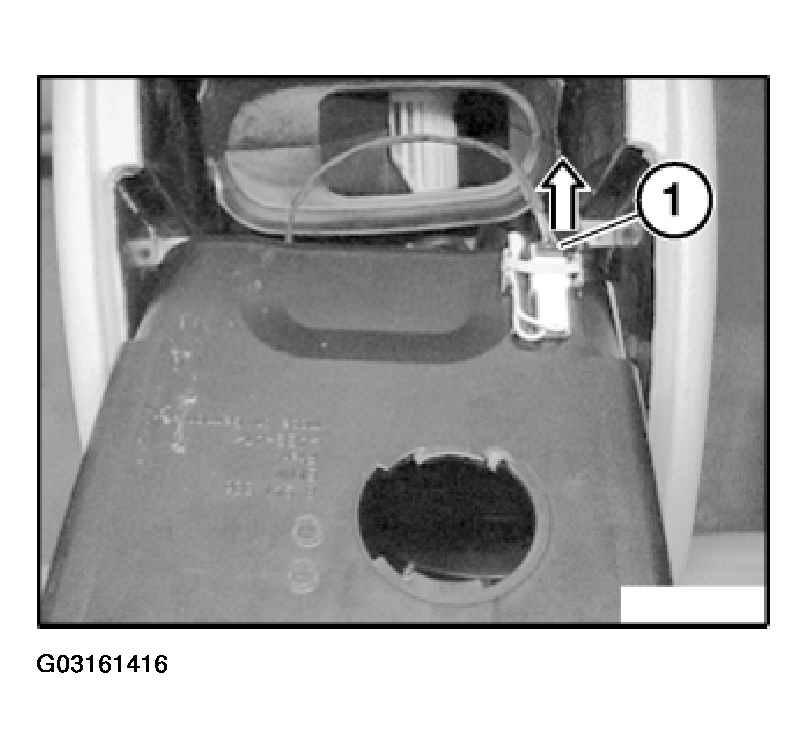

Unfasten plug connection (1).

Fig 4: Unfastening Plug Connection

G03161416

Courtesy of BMW OF NORTH AMERICA, INC.

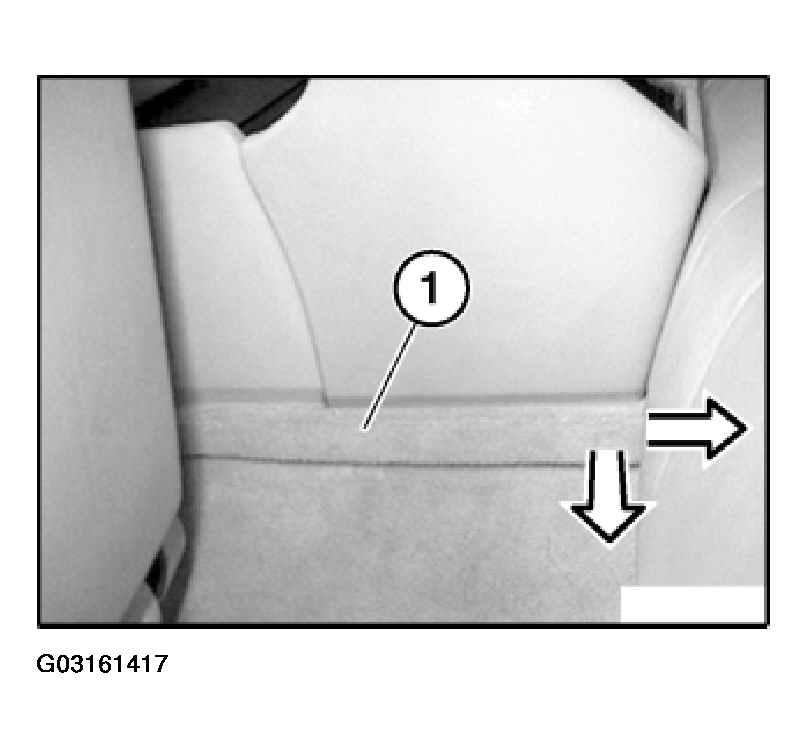

Unclip side carpet (1), left and right, at rear and pull out of clips towards rear.

Fig 5: Uncliping Side Carpet

G03161417

Courtesy of BMW OF NORTH AMERICA, INC.

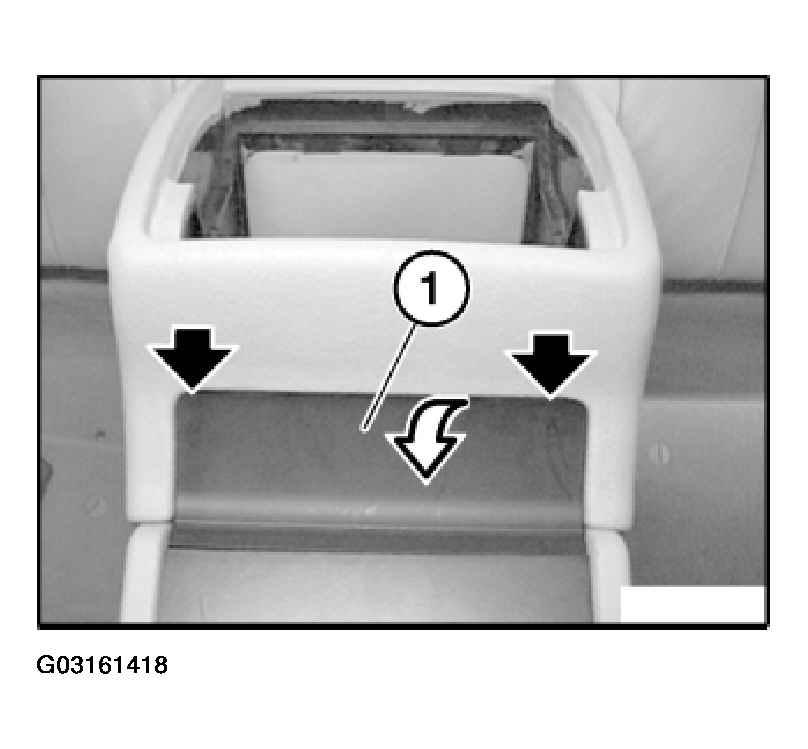

Unclip trim (1) from above and take out towards front.

Fig 6: Removing Trim

G03161418

Courtesy of BMW OF NORTH AMERICA, INC.

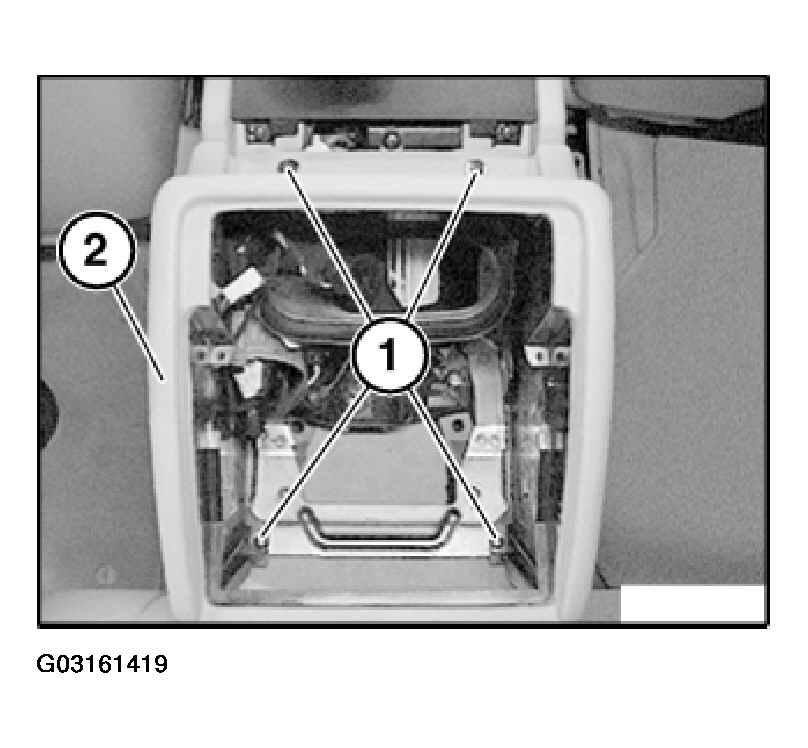

Unscrew bolts (1). Remove console (2) towards top.

Fig 7: Removing Console Towards Top

G03161419

Courtesy of BMW OF NORTH AMERICA, INC.

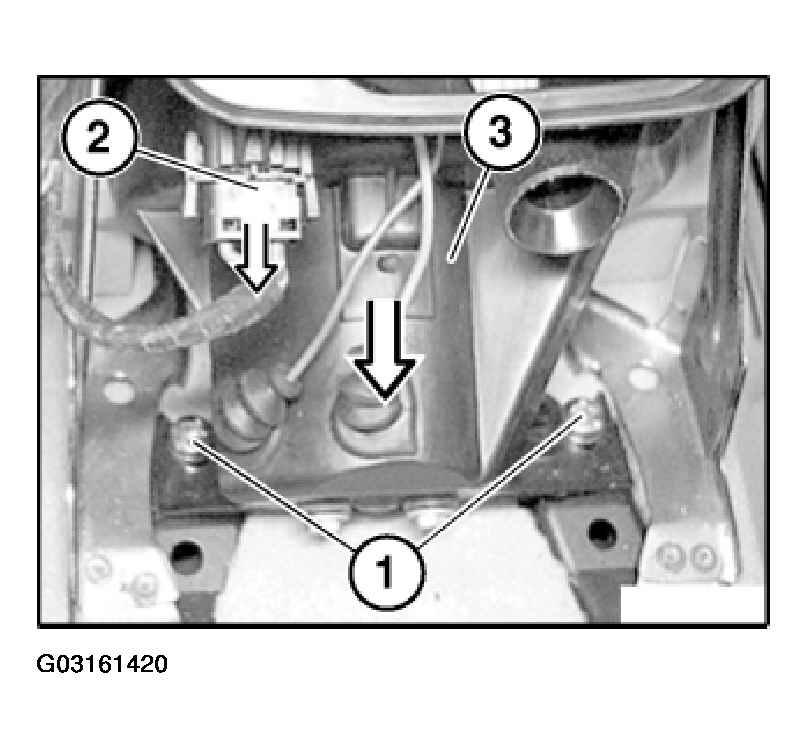

Unscrew bolts (1). Disconnect connector (2). Pull out rear fan (3) towards rear.

Fig 8: Removing Rear Fan

G03161420

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure air duct is correctly seated.
