64 11 748 Removing and installing heater controls (A/C control)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove switch unit from center console, refer to 61 31 057 REMOVING AND INSTALLING SWITCH UNIT IN CENTER CONSOLE .

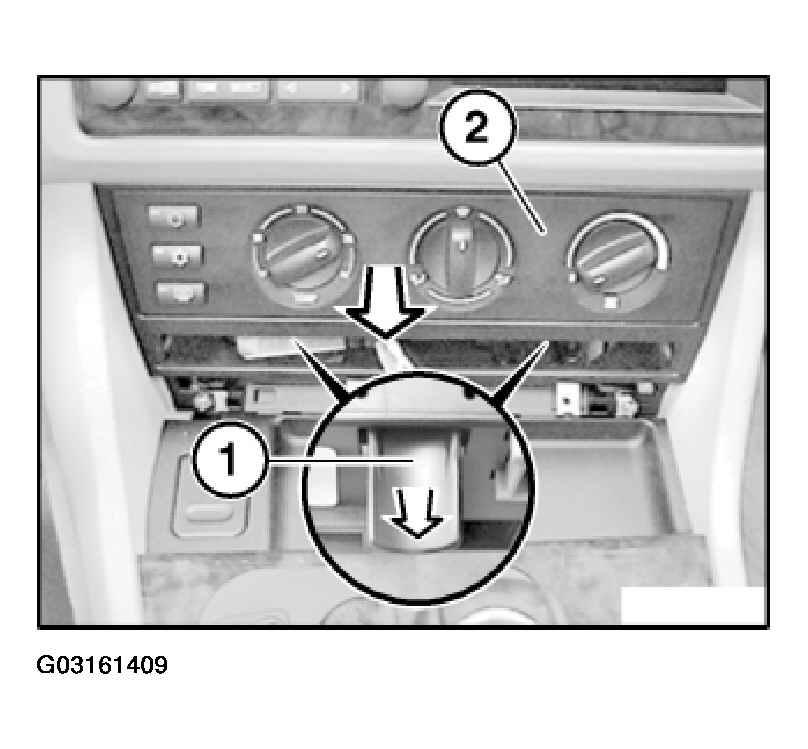

Press retaining hook (1) upwards through opening for switch unit.

Remove heating controls (2).

Fig 1: Removing Heating Controls

Courtesy of BMW OF NORTH AMERICA, INC.

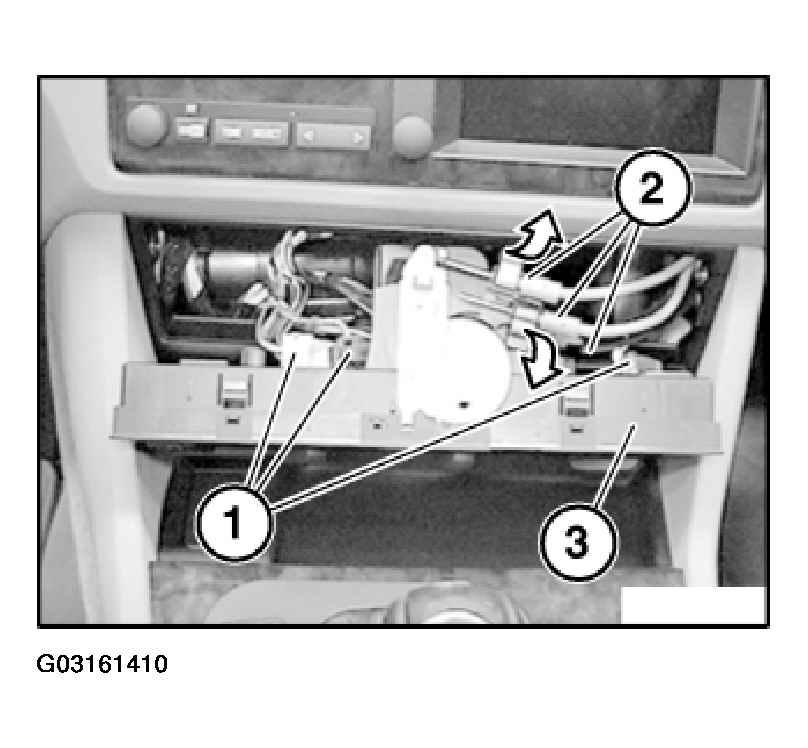

Disconnect plug connections (1).

Unclip Bowden cables (2) and remove.

Fig 2: Removing Plug Connections & Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to color coding of Bowden cables (2).

Remove heating controls (3).
