64 12 750 Removing and installing/replacing auxiliary water pump for latent heat accumulator

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove left front wheel and left wheel arch trim.

If necessary, remove plastic cover from valve unit

Disconnect hoses (1), unfasten hose clip (2) and pull off hoses.

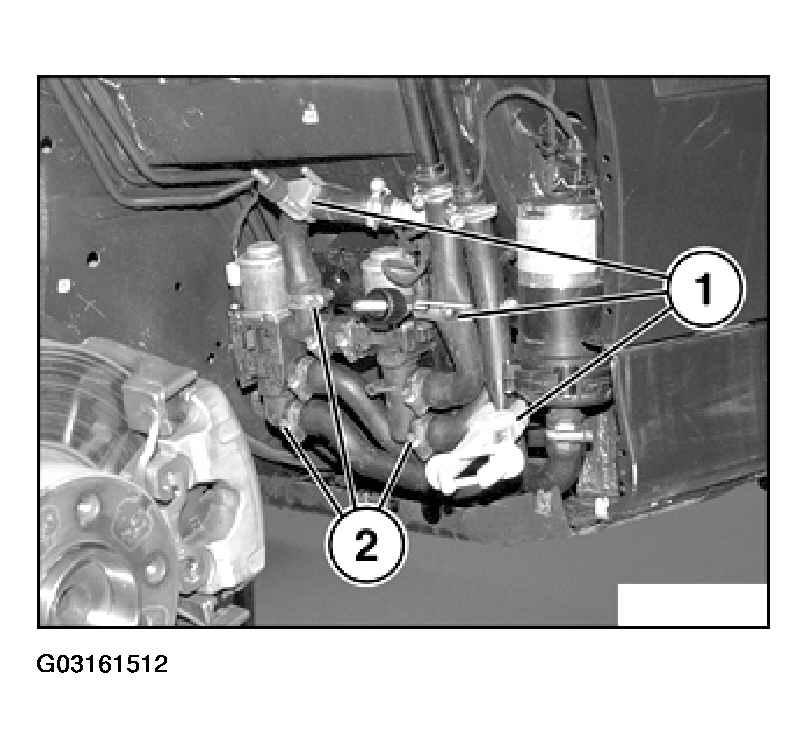

Fig 1: Disconnecting Latent Heat Accumulator Valve Unit Hoses

G03161512

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

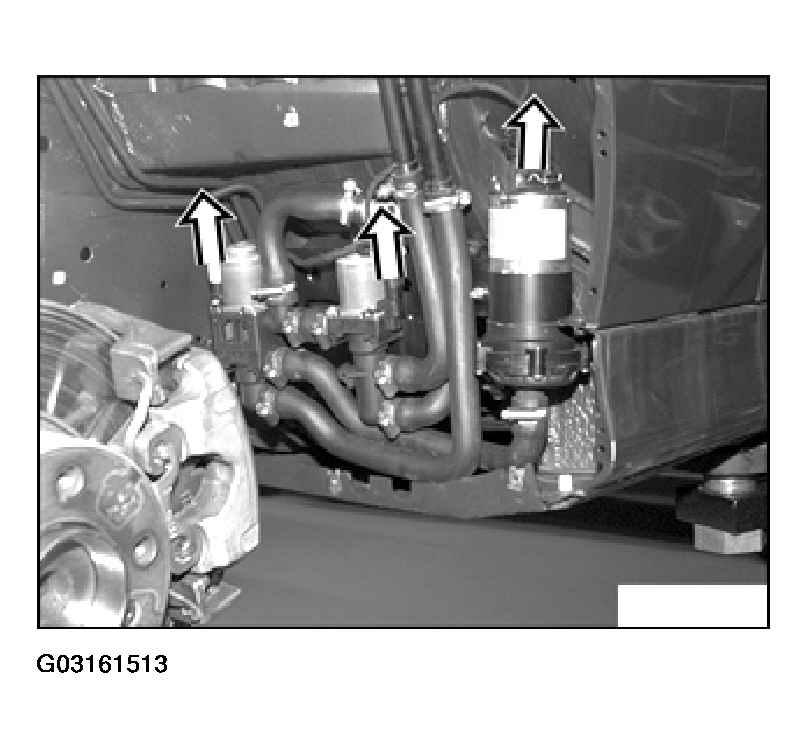

Fig 2: Disconnecting Latent Heat Accumulator Valve Unit Connectors

G03161513

Courtesy of BMW OF NORTH AMERICA, INC.

Slide valve unit upwards and lift forwards to remove.

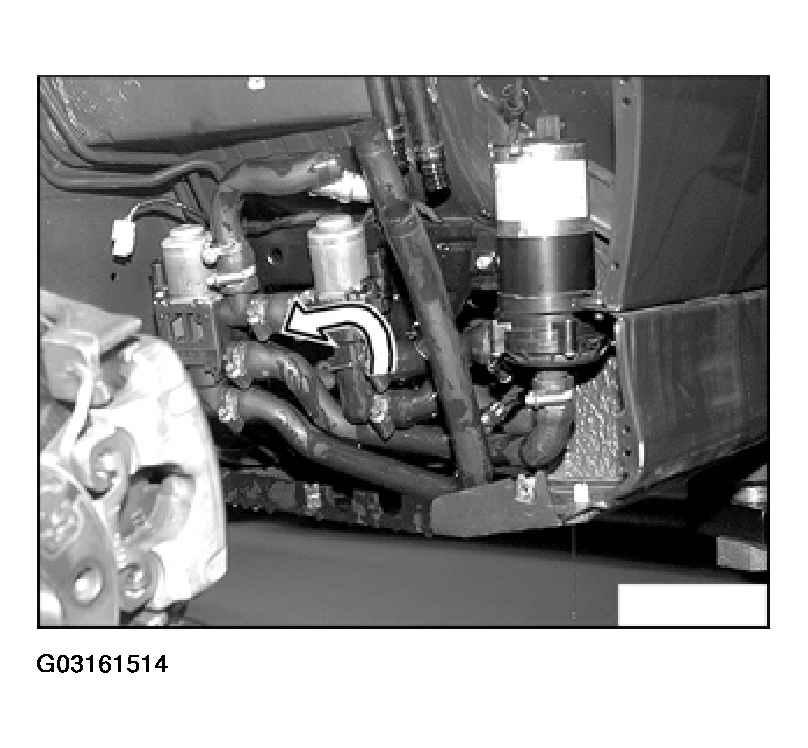

Fig 3: Removing Latent Heat Accumulator Valve Unit

G03161514

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach rubber mount of valve unit to the guide and press downwards to remove.

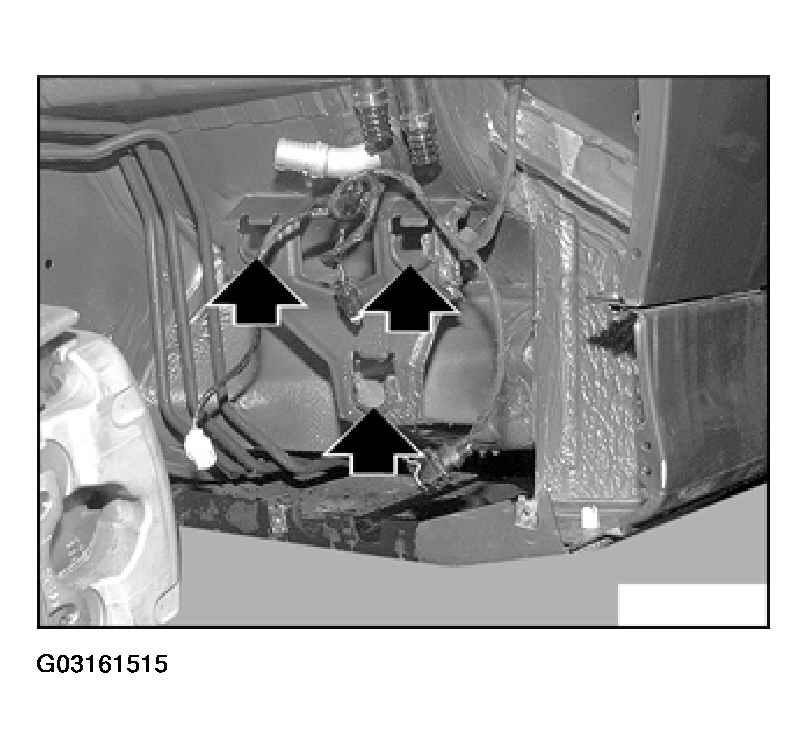

Fig 4: Attaching Rubber Mount Of Valve Unit To Guide

G03161515

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clip and pull off hose.

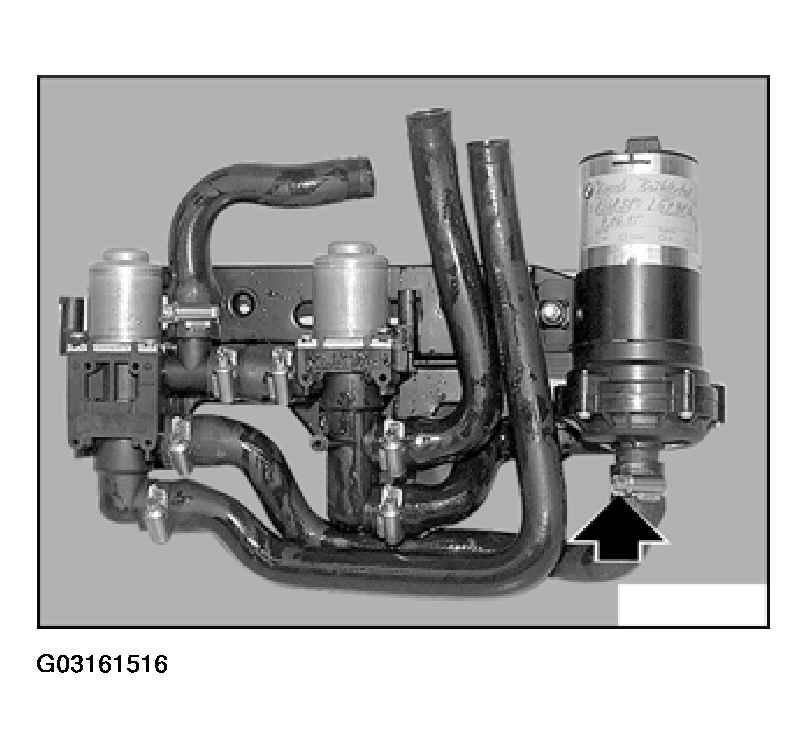

Fig 5: Removing Hoses Form Auxiliary Water Pump

G03161516

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clip and pull off hose.

Loosen screw and pull out auxiliary water pump and hose clip.

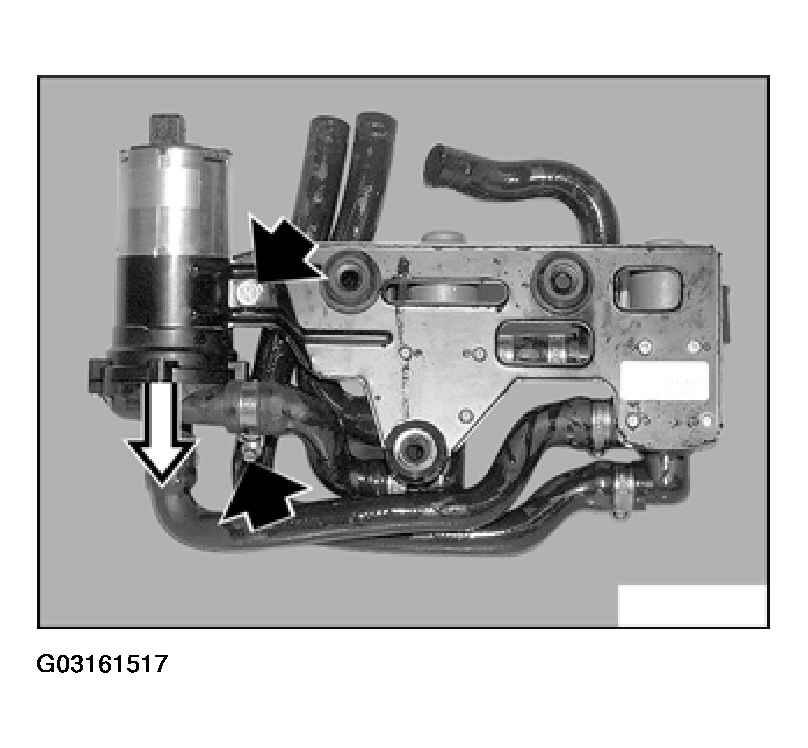

Fig 6: Removing Auxiliary Water Pump

G03161517

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After completion of repair work, bleed the latent heat accumulator, refer to 64 12 VENTING LATENT HEAT ACCUMULATOR (LWS) .
