64 12 600 Removing and installing or replacing fuel pump
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Release screws and remove floor covering.
Fig 1: Removing Floor Covering
Courtesy of BMW OF NORTH AMERICA, INC.

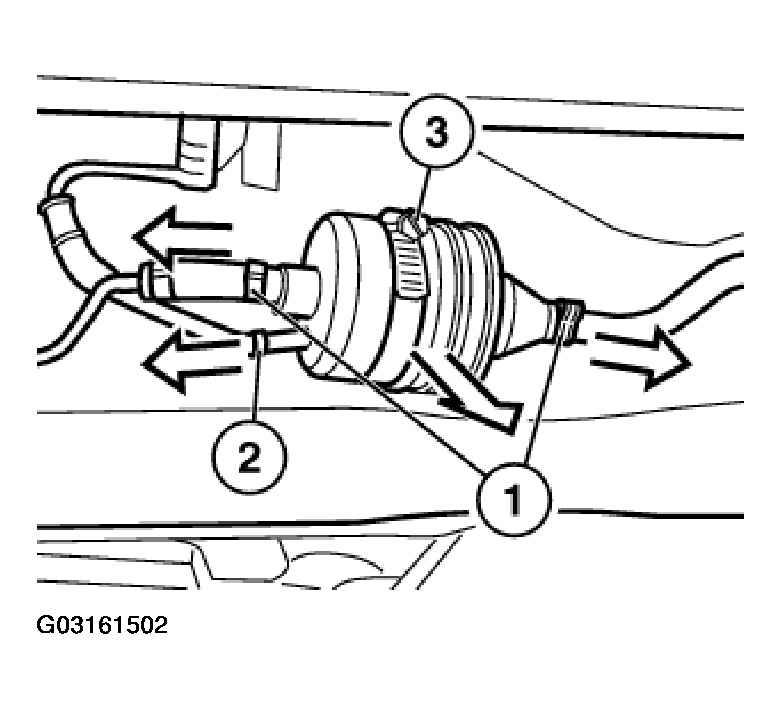

Release hose clips (1) and disconnect hoses. Pull off plug (2).
