64 12 505 Removing and installing/replacing glow element (Thermo Top S)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

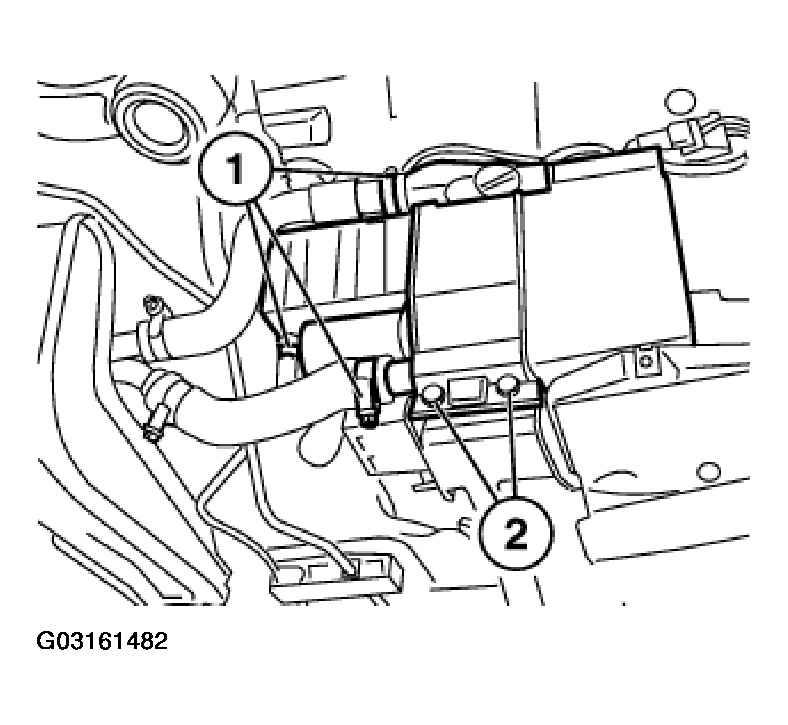

Release screws and turn over heater.

Fig 1: Turning Over Heater

Courtesy of BMW OF NORTH AMERICA, INC.

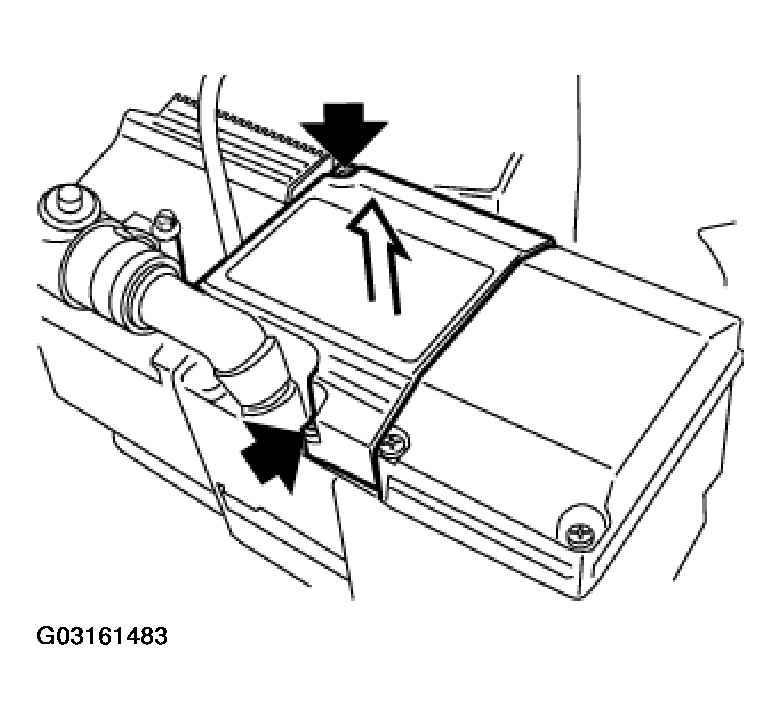

Release screws and remove central cover.

Fig 2: Removing Central Cover

Courtesy of BMW OF NORTH AMERICA, INC.

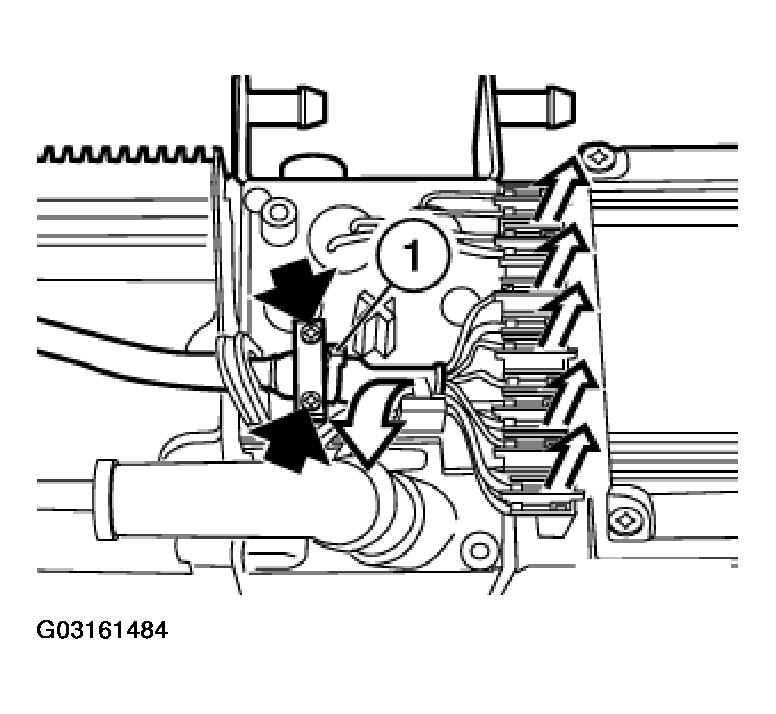

Disconnect all plug connections. Release screws and remove pull relief. Place wiring harness to one side.

Fig 3: Disconnecting Heater (Thermo Top S) Harness Connectors & Pull Relief

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cable tie (1) must be located in front of pull relief.

Unfasten screws.

NOTE: The burner cover is welded plastically with the heater housing.

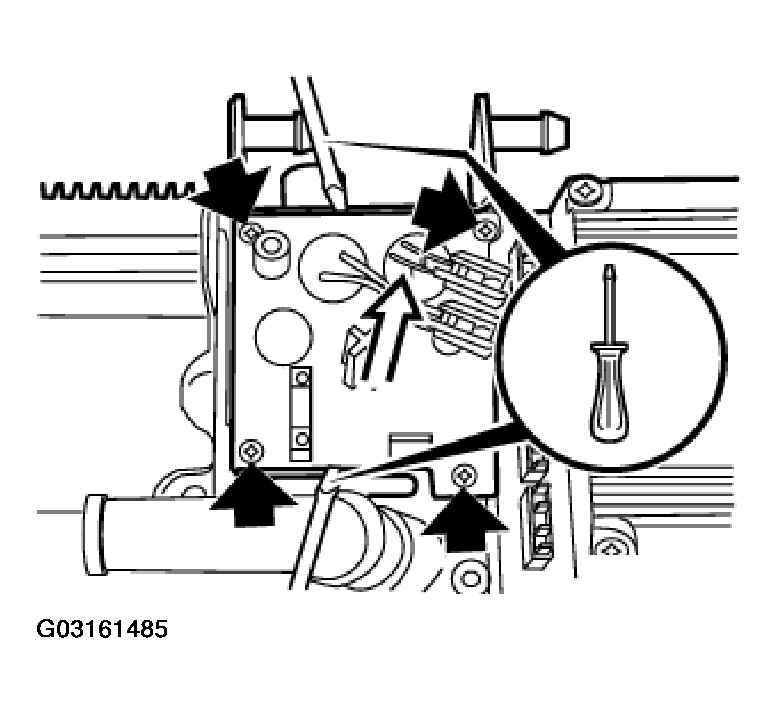

Lever out burner cover with screwdriver.

Fig 4: Levering Out Burner Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove old sealing compound from cover and coat with new sealing compound provided.

Observe tightening torque, refer to 64 12 7AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - 5-SERIES .

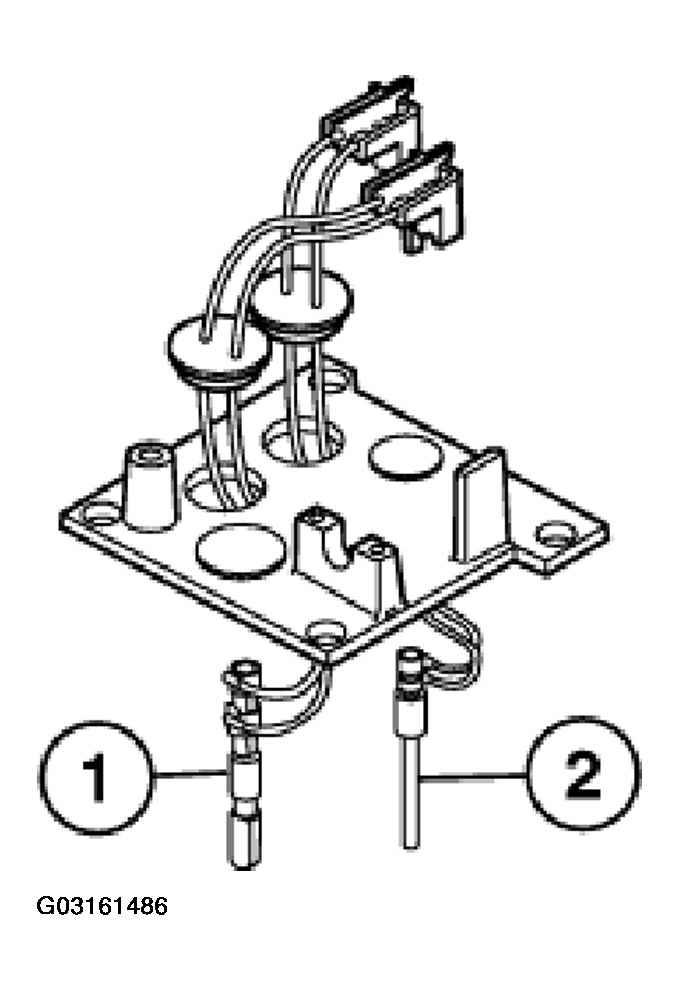

Remove glow element (1) and flame detector (2) from burner insert and detach together with burner cover.

Fig 5: Removing Glow Element And Flame Detector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

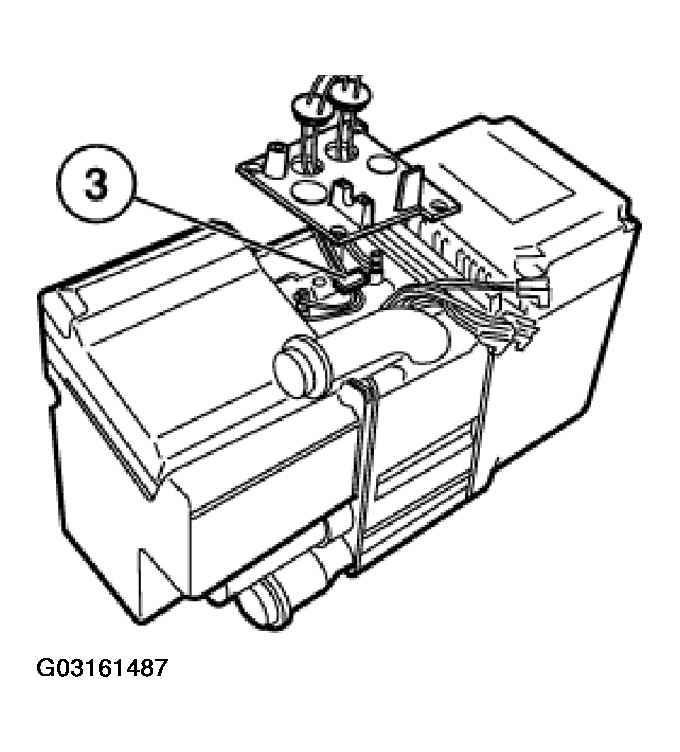

Run wires of glow element under cable duct (3) of burner insert.

Fig 6: Installing Wires Of Glow Element Under Cable Duct Of Burner Insert
