63 99 451 Replacing light bulb for luggage compartment lighting

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights).

Remove luggage compartment light.

Saloon/Sedan:

Remove cover plate in direction of arrow.

Remove bulb underneath.

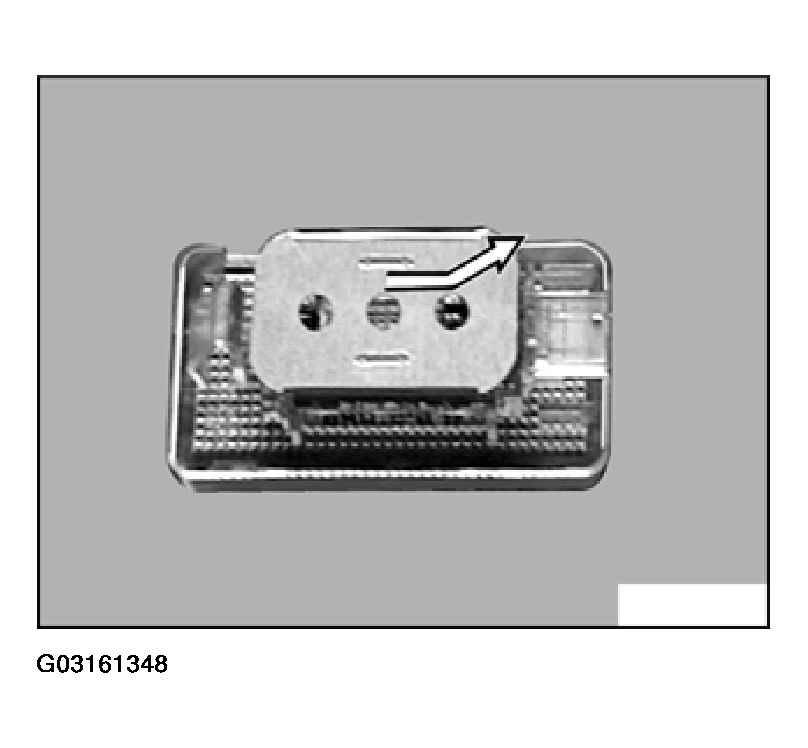

Fig 1: Removing Cover Plate (Luggage Compartment Light - Saloon/Sedan)

Courtesy of BMW OF NORTH AMERICA, INC.

Touring:

Remove cover (1) in direction of arrow.

Remove bulb underneath.

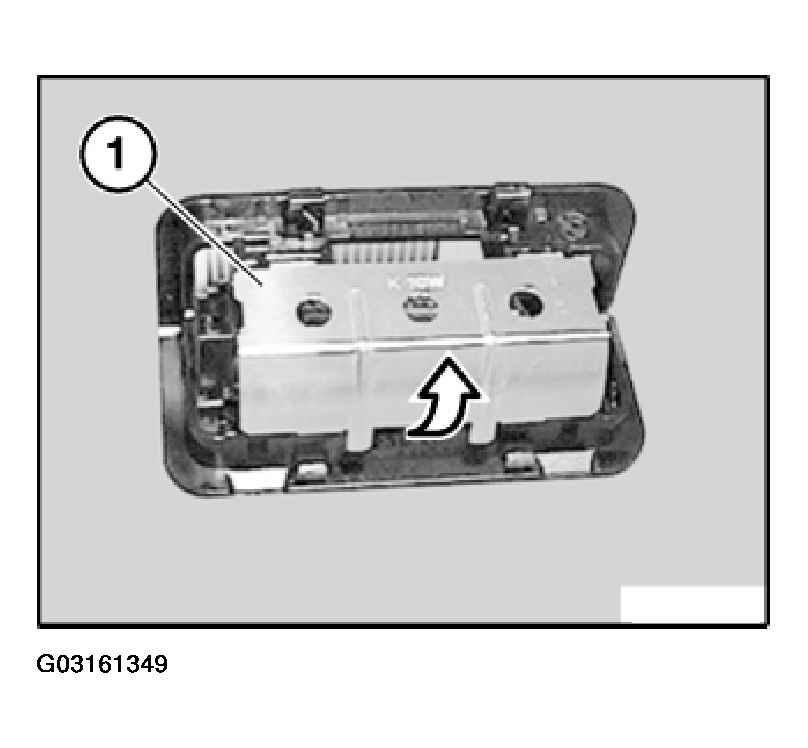

Fig 2: Removing Cover (Luggage Compartment Light - Touring)

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb, refer to LIGHTS - TECHNICAL DATA .
