63 99 435 Replacing bulb(s) for left or right interior light

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights).

All:

Remove interior light, refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE INTERIOR LIGHT .

Saloon/Sedan Only:

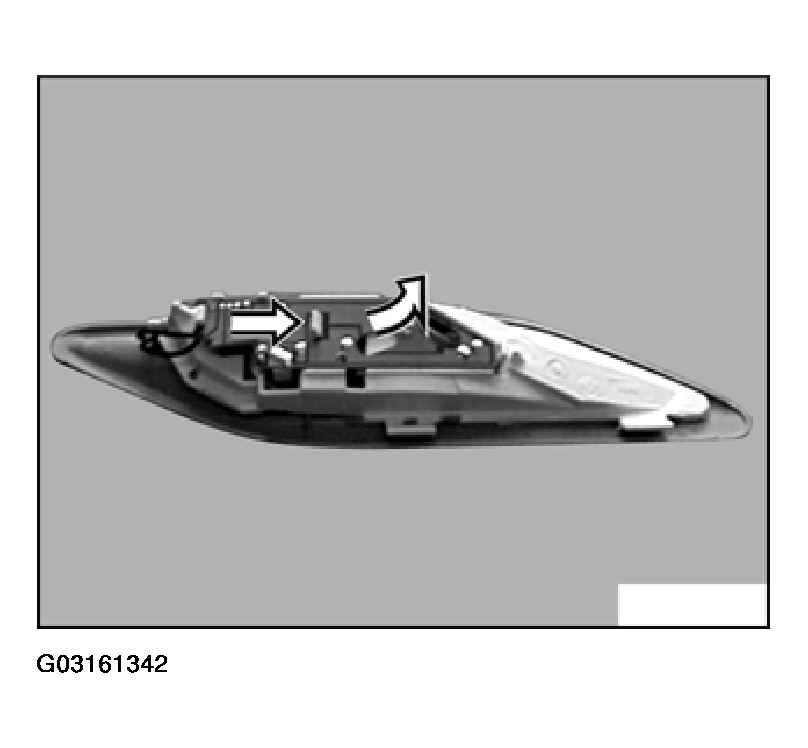

Press detent lug to one side and lever out base plate.

Fig 1: Levering Out Interior Light (Saloon/Sedan)

Courtesy of BMW OF NORTH AMERICA, INC.

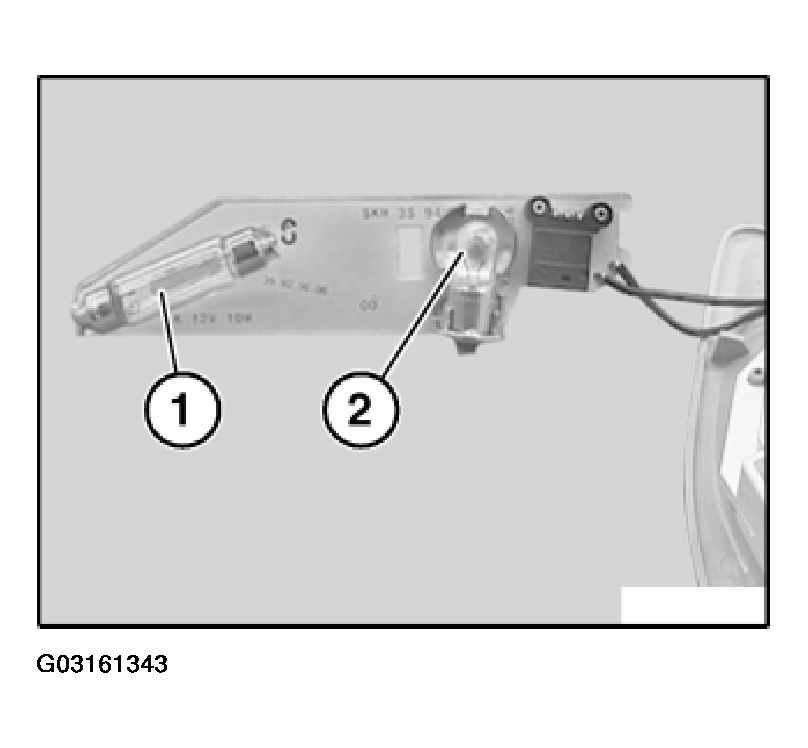

Remove bulb(s).

NOTE:

Bulb, interior light (side)
Bulb, interior reading light (rear)

Fig 2: Removing Interior Light Bulbs (Side & Interior Reading)

Courtesy of BMW OF NORTH AMERICA, INC.

Touring Only:

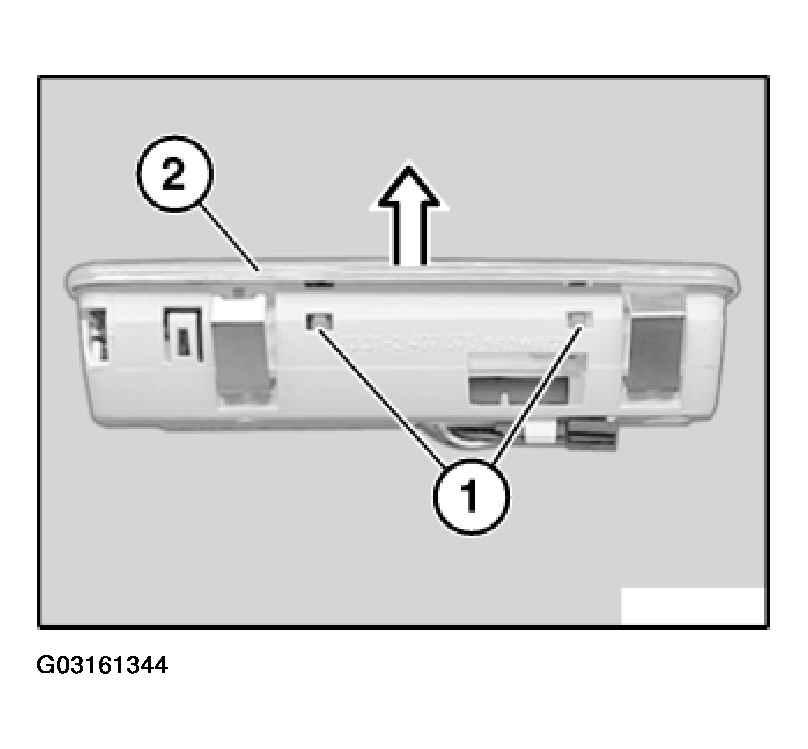

Press detent lugs (1) and clip out lens (2) in direction of arrow.

Fig 3: Levering Out Interior Light (Touring)

Courtesy of BMW OF NORTH AMERICA, INC.

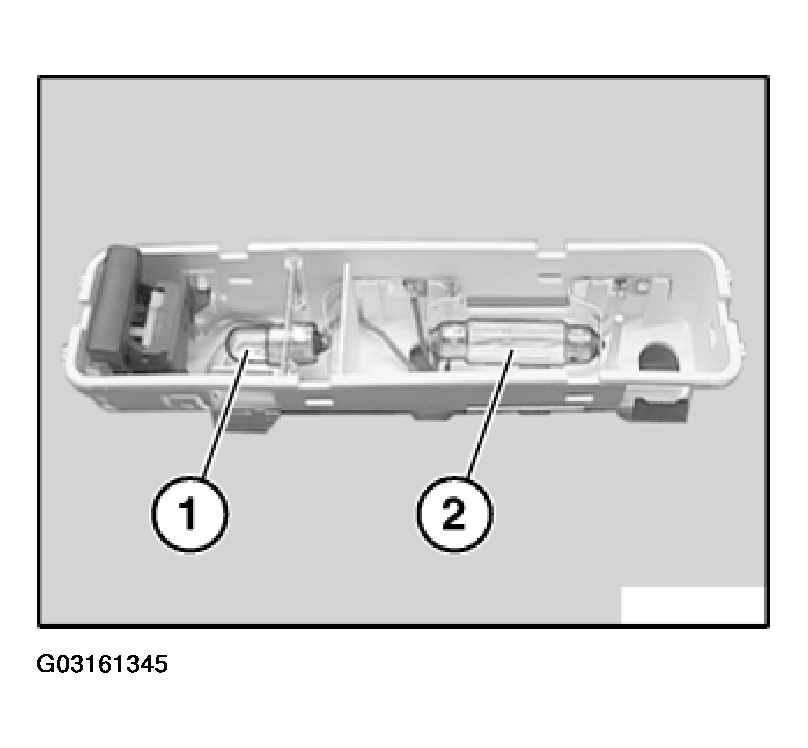

Remove bulb(s).

NOTE:

Bulb, interior reading light (rear)
Bulb, interior light (side)

Fig 4: Removing Interior Light Bulbs (Side & Interior Reading Light Rear - Touring)

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb, refer to LIGHTS - TECHNICAL DATA .
