63 99 431 Replace light bulb for interior light

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

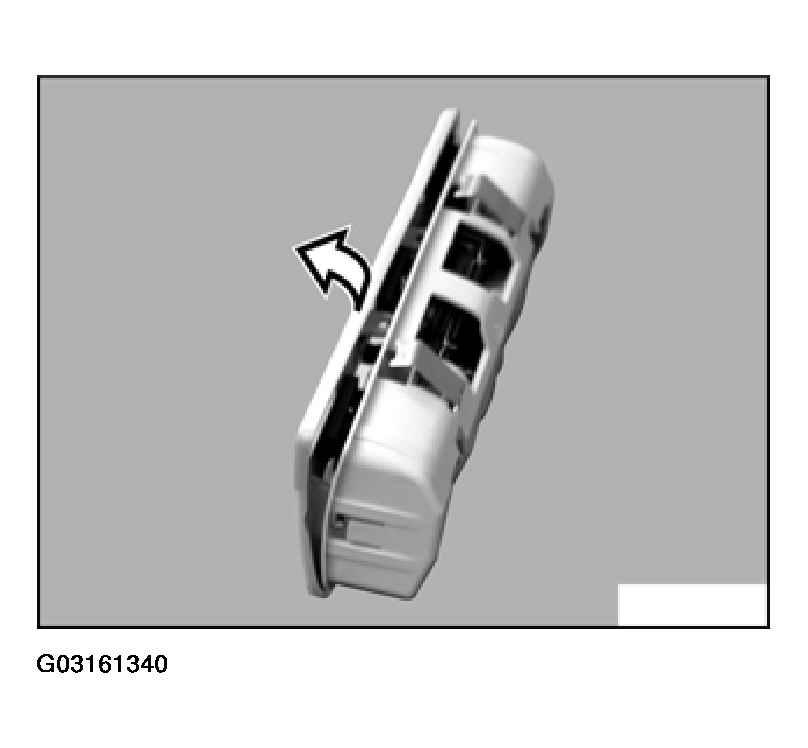

Unclip lens/reflector.

Fig 1: Uncliping Lens/Reflector
G03161340Courtesy of BMW OF NORTH AMERICA, INC.

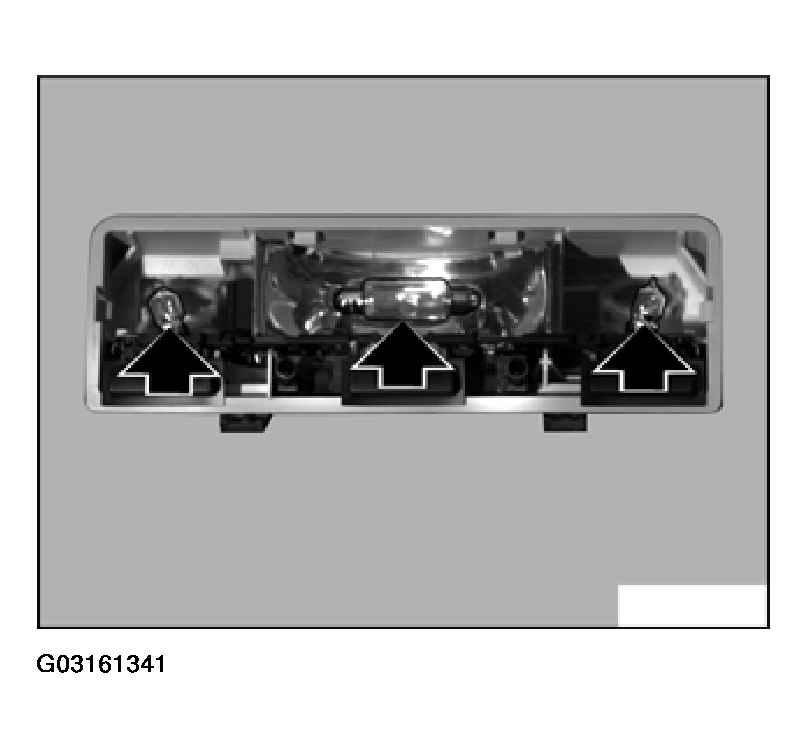

Lift out light bulb.

CAUTION: Do not take hold of glass part of bulb with bare fingers.
Only take hold of bulb on base or with a clean cloth or packaging of light bulb.
Note type of bulb, refer to LIGHTS - TECHNICAL DATA .
Fig 2: Replacing Interior Light Bulb
G03161341Courtesy of BMW OF NORTH AMERICA, INC.
