63 99 375 Replacing bulb for auxiliary brake light

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Unclip cover from auxiliary brake light in luggage compartment.

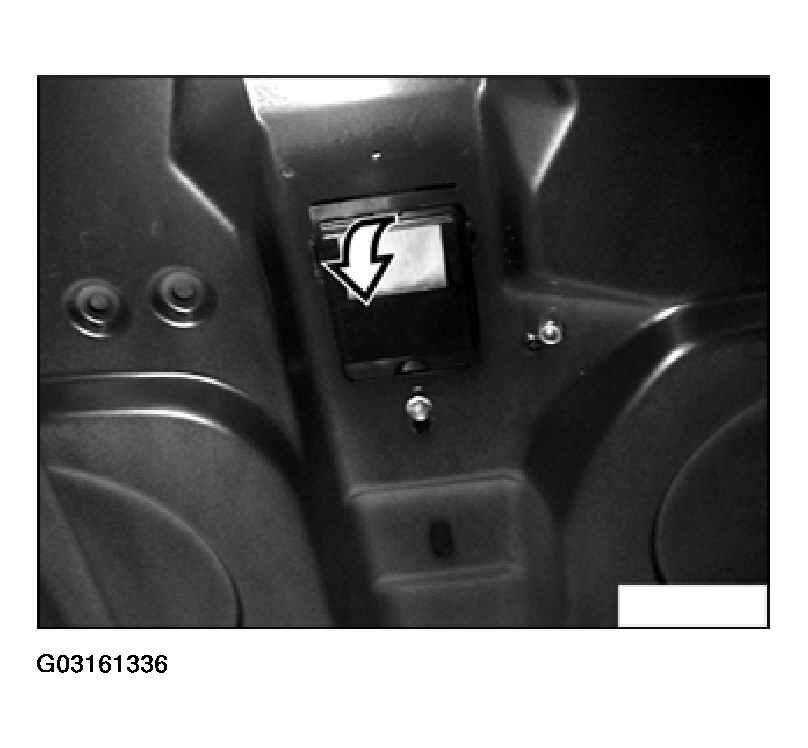

Fig 1: Uncliping Cover From Auxiliary Brake Light In Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder and remove.

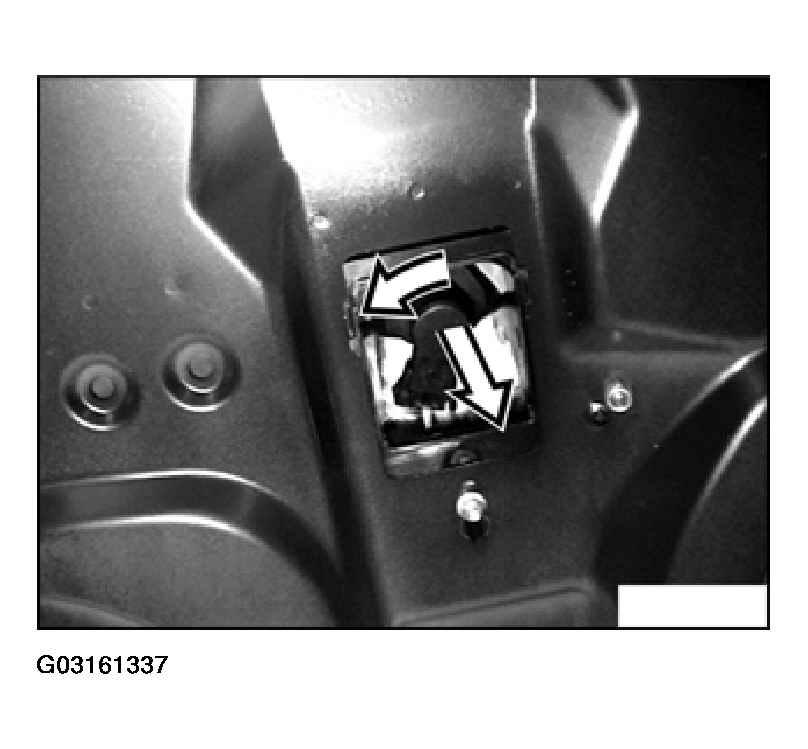

Fig 2: Removing Auxiliary Brake Light Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Twist bulb and remove.

Installation:

Note type of bulb, refer to LIGHTS - TECHNICAL DATA .

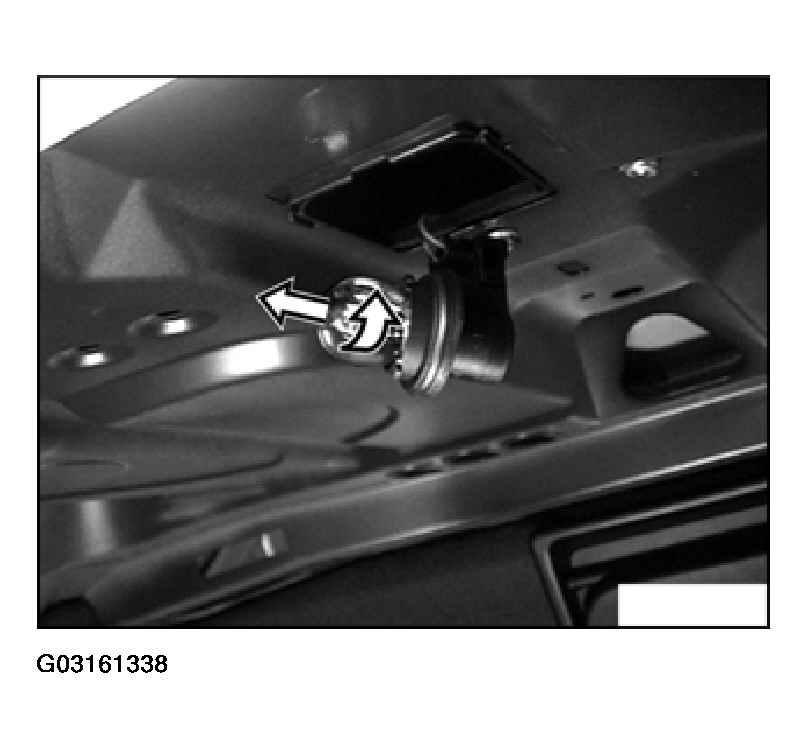

Fig 3: Removing Auxiliary Brake Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
