63 99 076 Replacing left lamp for left Xenon light

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

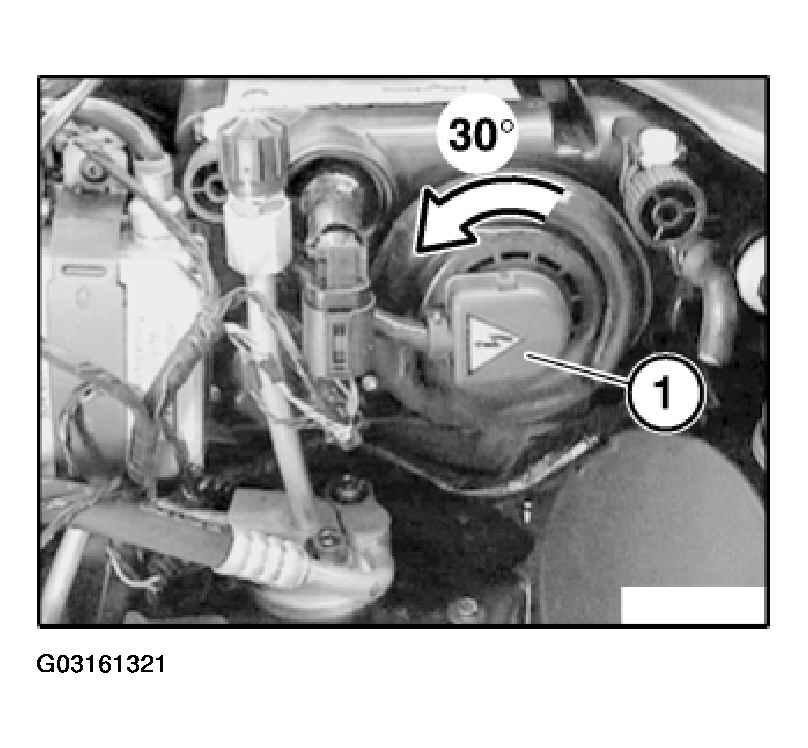

Turn plug connection (1) approx. 30° to left and disconnect.

Fig 1: Disconnecting Headlight Plug Connection (Xenon Light)

Courtesy of BMW OF NORTH AMERICA, INC.

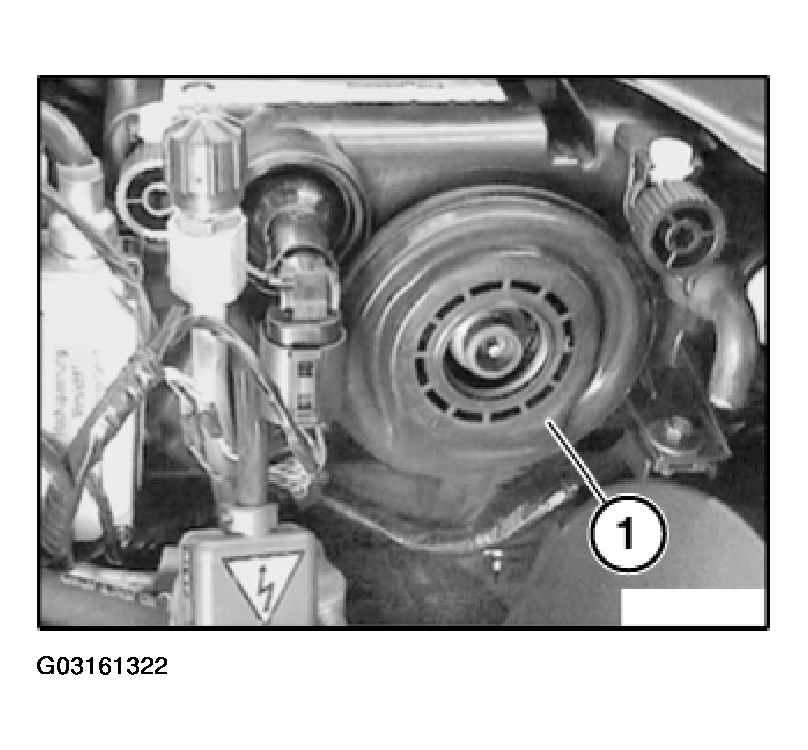

Detach cover (1).

Fig 2: Detaching Headlight Cover

Courtesy of BMW OF NORTH AMERICA, INC.

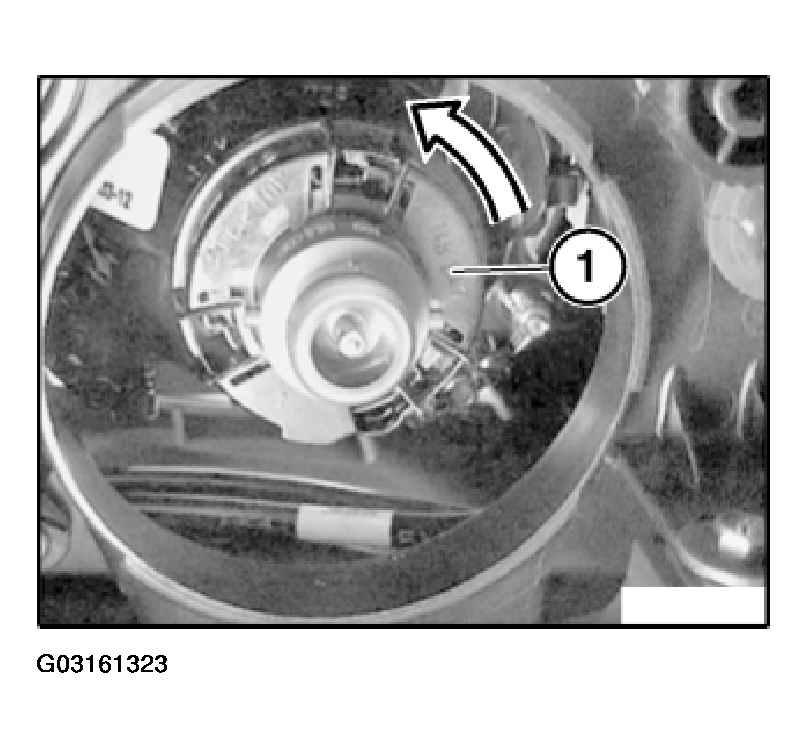

Turn fastener (1) to left.

Withdraw xenon lamp with fastener.

Fig 3: Withdrawing Xenon Lamp With Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

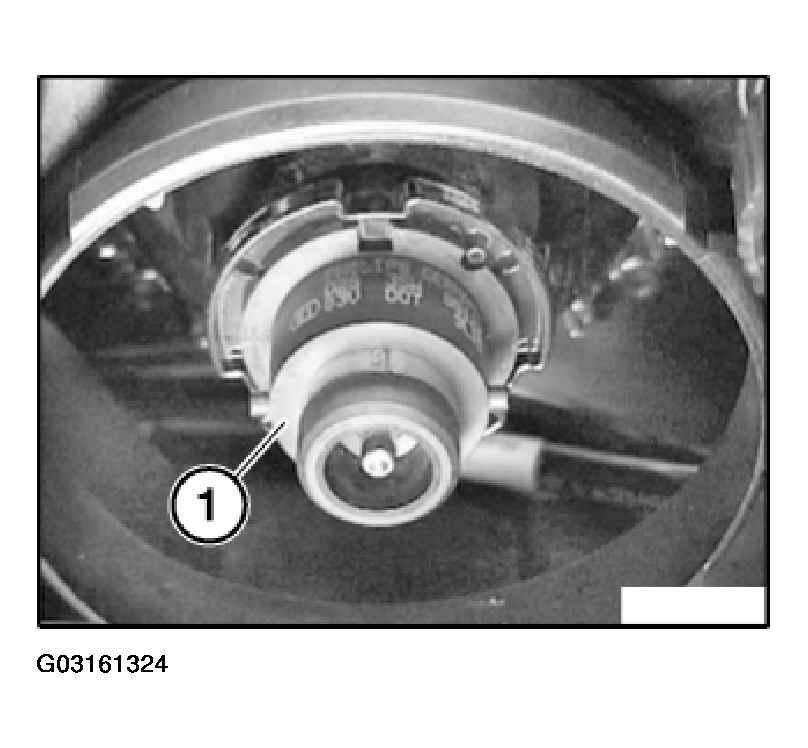

Install xenon lamp (1) in position.

Fit fastener and lock by turning to right.

Fig 4: Installing Xenon Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
