63 31 020 Removing and installing/replacing footwell light

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Pry out footwell light from side

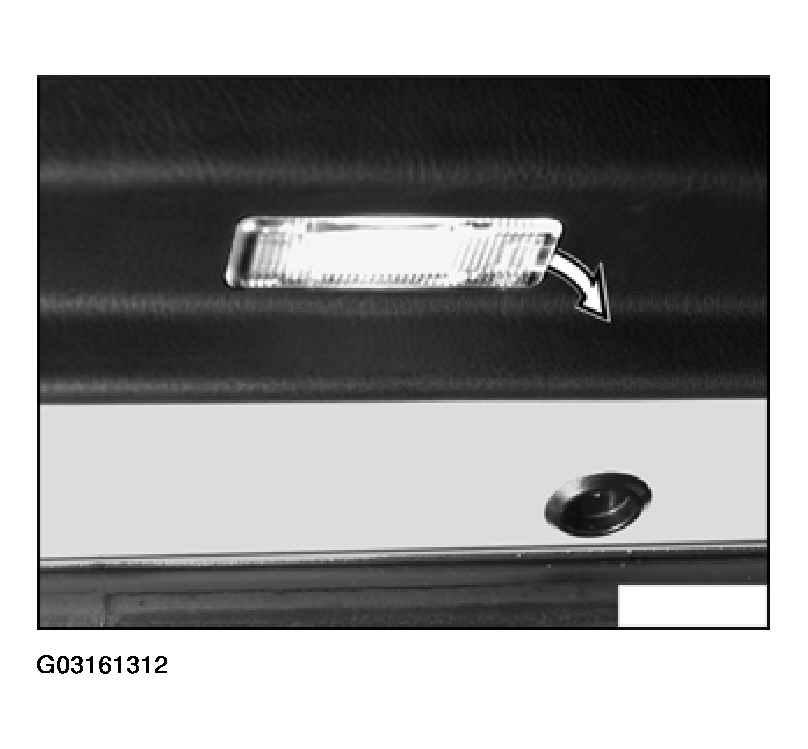

Fig 1: Prying Out Footwell Light From Side

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out connector and remove light.

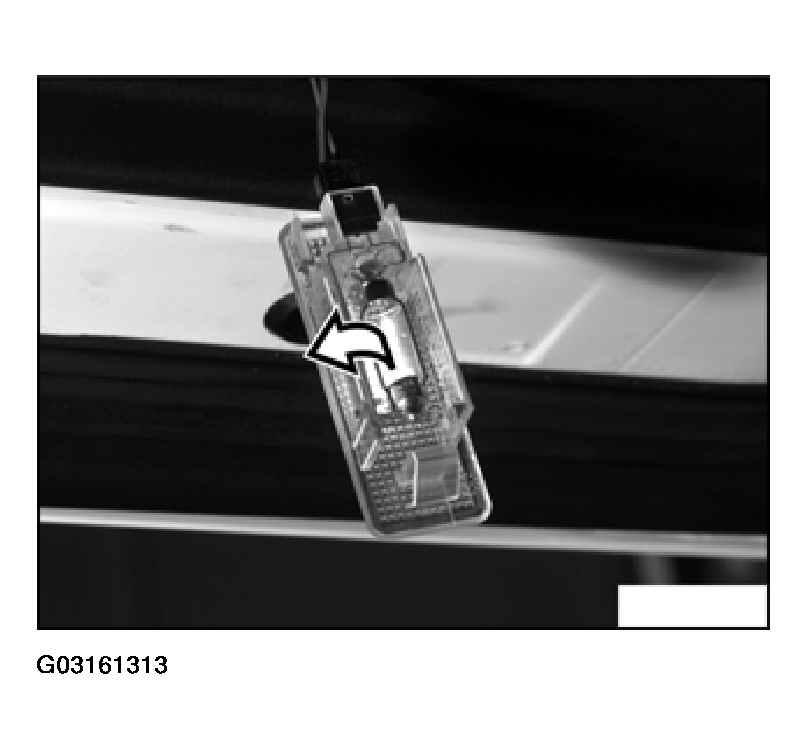

Fig 2: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.
