63 31 015 Removing and installing/replacing left or right interior light

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Saloon/Sedan:

Lever out interior light (1) in direction of arrow.

Disconnect plug connection underneath and remove interior light (1).

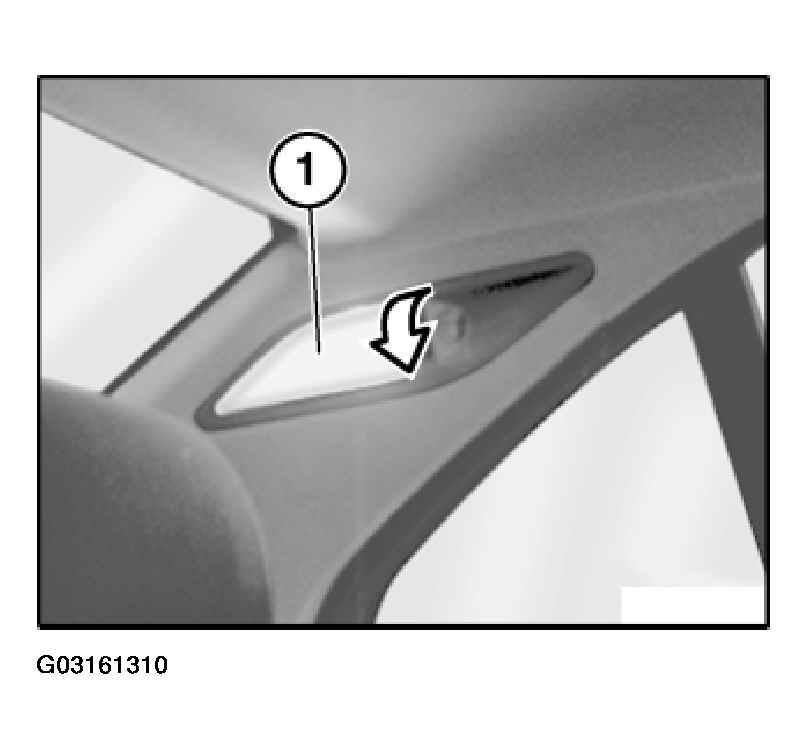

Fig 1: Removing Interior Light (Saloon/Sedan)

Courtesy of BMW OF NORTH AMERICA, INC.

Touring:

Lever out interior light (1) in direction of arrow.

Disconnect plug connection underneath and remove interior light (1).

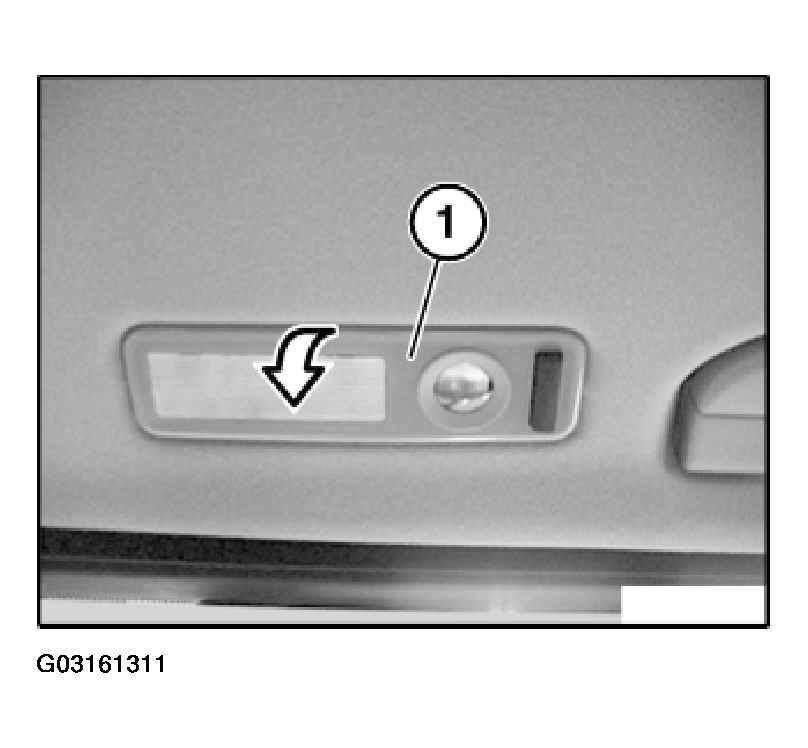

Fig 2: Removing Interior Light (Touring)

Courtesy of BMW OF NORTH AMERICA, INC.
