63 12 860 Replacing control unit for left xenon headlamp
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Xenon headlamps: Danger to life due to high voltage!
Therefore disconnect xenon headlamps from voltage supply.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Therefore disconnect xenon headlamps from voltage supply.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Remove intake filter housing, refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54) .
NOTE:
Headlamp removed for purposes of clarity.
Release screws and remove control unit for xenon headlamp with ignition unit.
Following illustrations show right xenon headlamp.

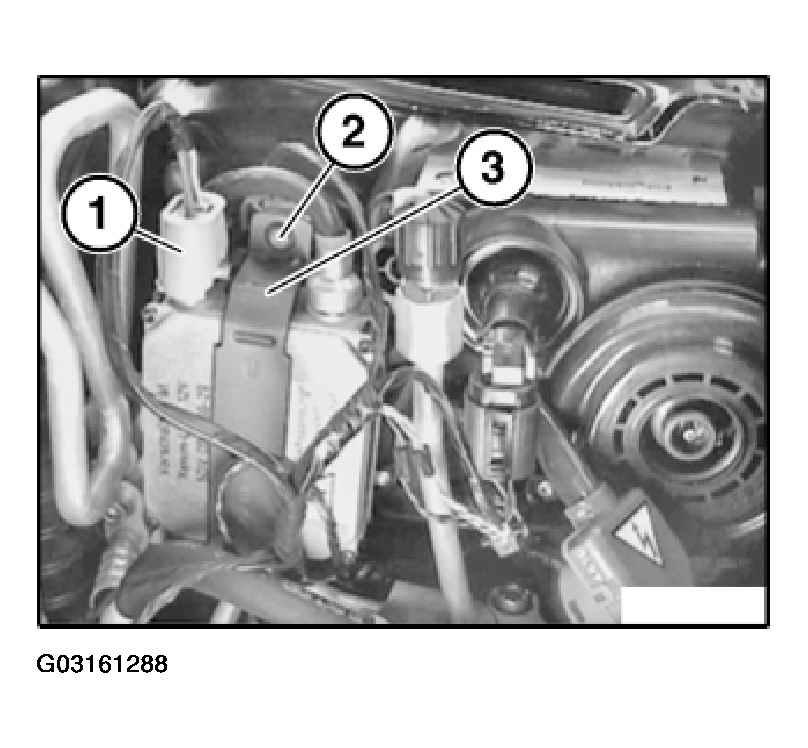

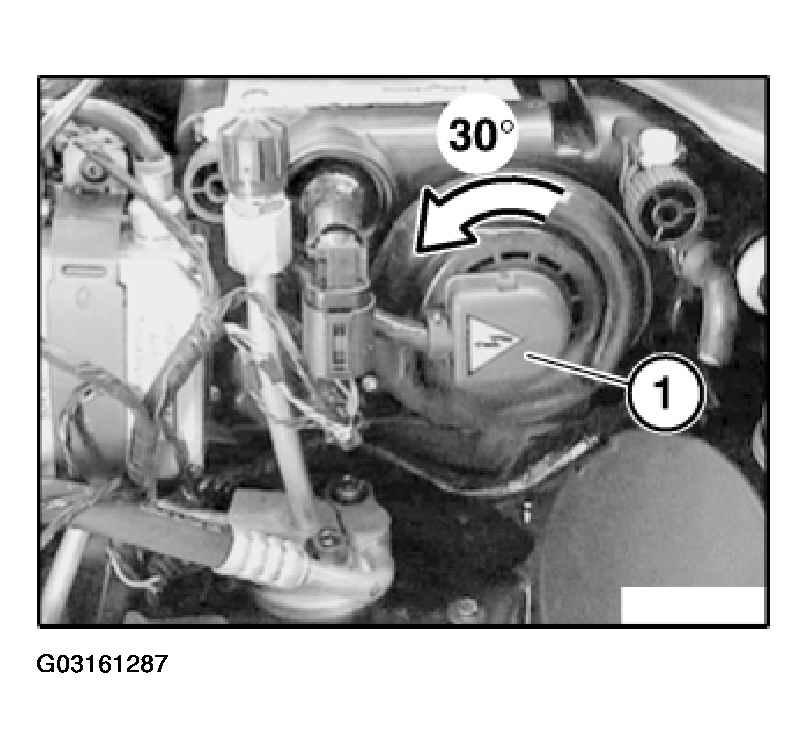

Turn plug connection (1) in direction of arrow and disconnect.
Disconnect plug connection (1).
Release screw (2) and remove control unit holder (3).
Remove control unit for xenon headlamp.
