Cars With Headlight Cleaning Systems Only:

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove washer pump of headlight cleaning system and place to one side, refer to 61 67 010 REMOVING AND INSTALLING/REPLACING WASHER PUMP OF HEADLIGHT CLEANING SYSTEM .

Installation:

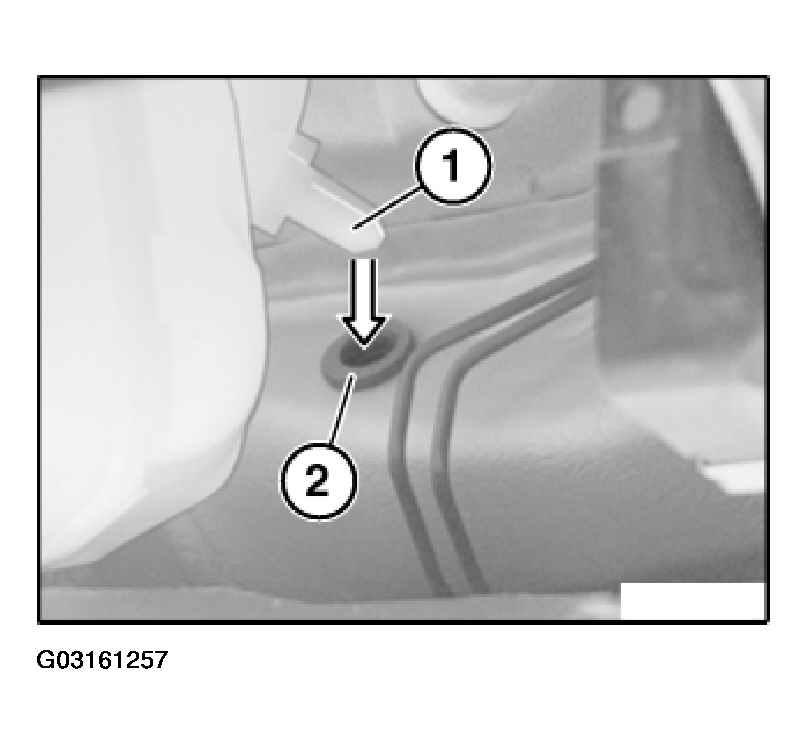

Feed journal (1) into grommet (2).

Replace grommet (2) if necessary.

Fig 1: Feeding Journal Into Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

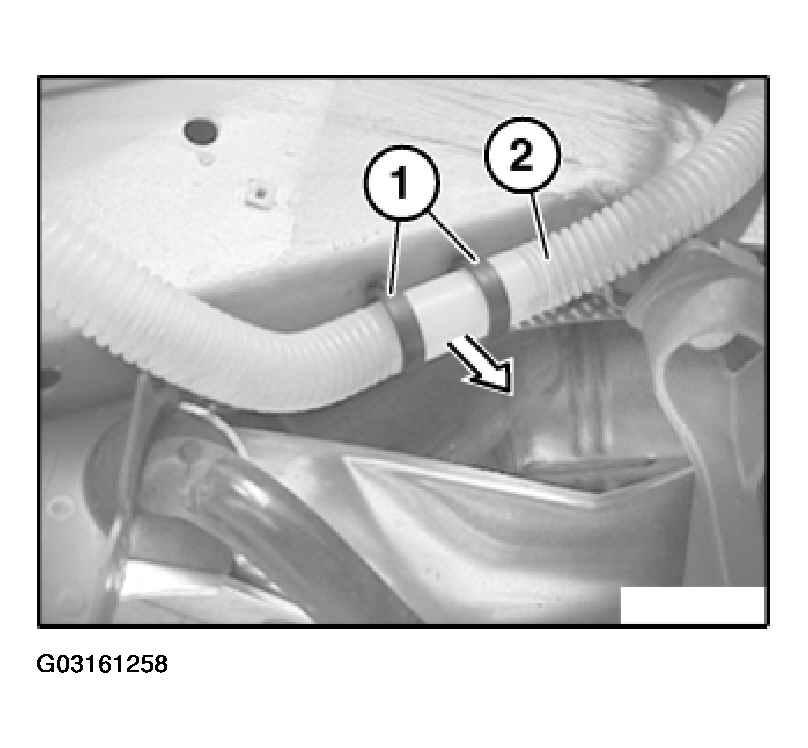

Unclip hose holder (1) in direction of arrow and remove from filler neck (2).

Fig 2: Removing Hose Holder From Filler Neck

Courtesy of BMW OF NORTH AMERICA, INC.

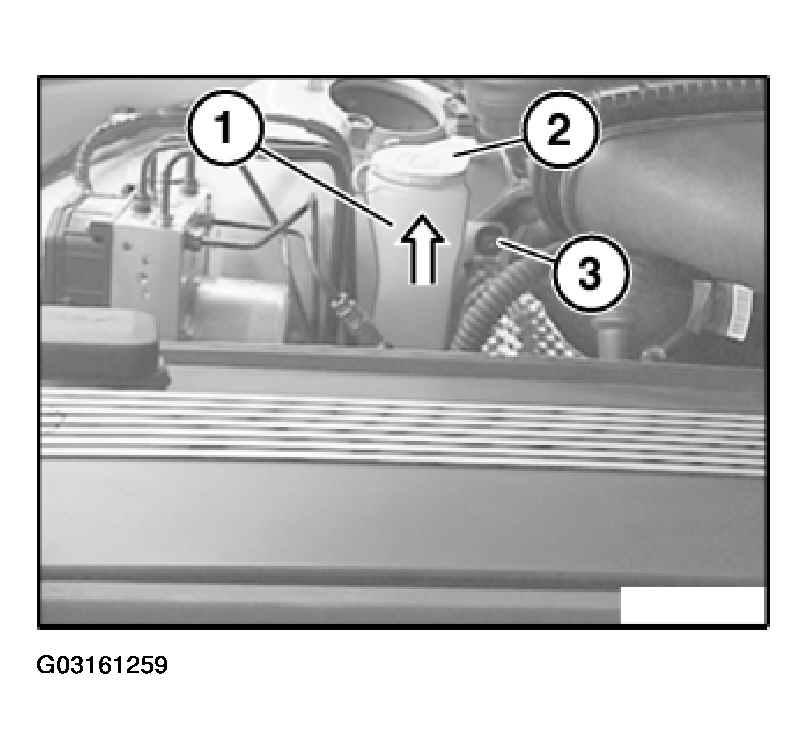

Remove cover (2) and strainer underneath.

Release plastic nut (3).

Withdraw filler neck (1) in direction of arrow.

Fig 3: Removing Filler Neck

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace plastic nut (3).
