61 71 004 Adjusting windshield washer spray nozzles

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Twin Nozzle System

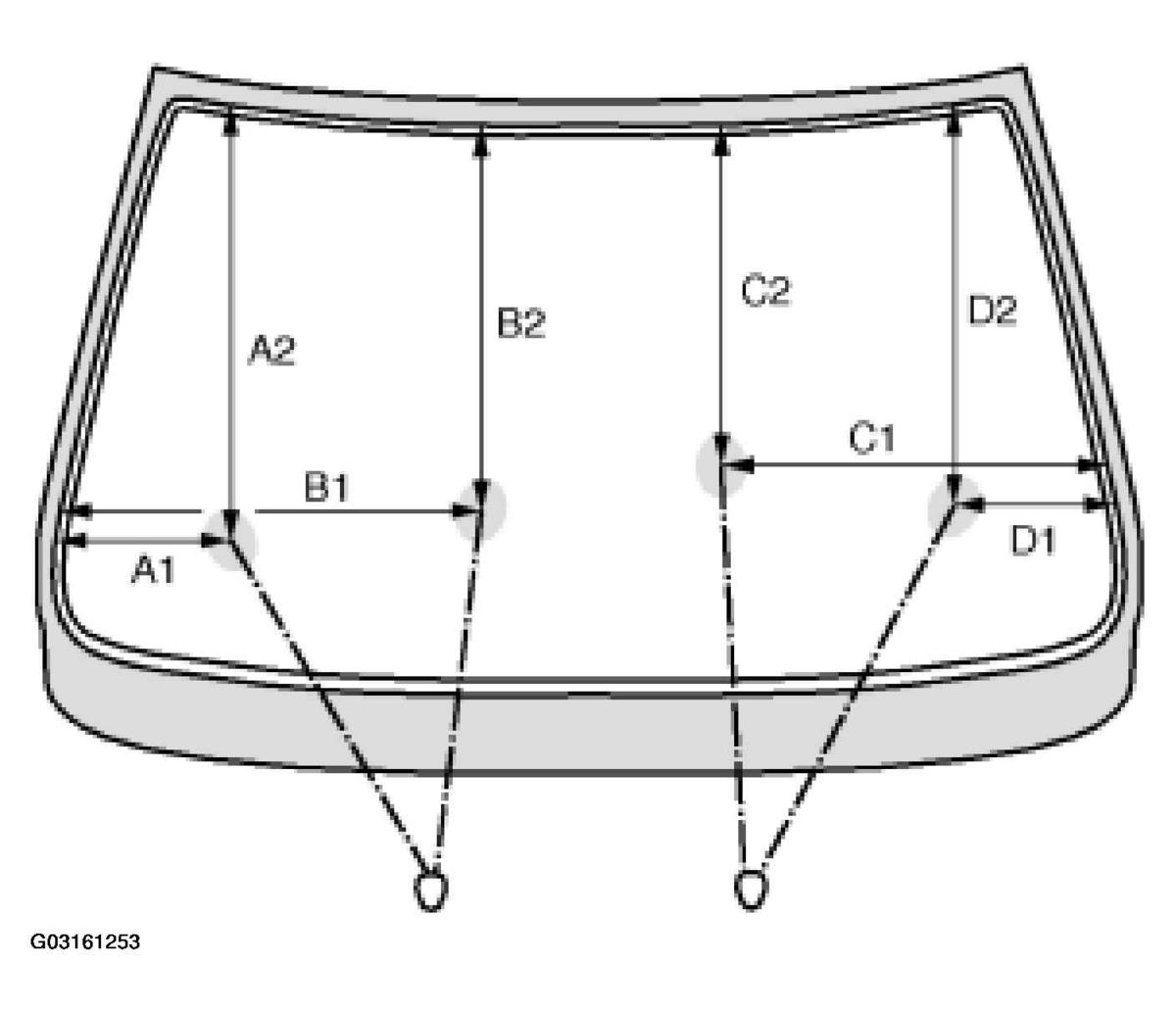

Fig 1: Identifying Windshield Washer Spray Nozzle Contact Points

Courtesy of BMW OF NORTH AMERICA, INC.

Mark the contact points with crepe tape or felt pen and operate the washer unit. The spray jets should strike the center of this field.

Adjustment values in mm

WINDSHIELD WASHER SPRAY NOZZLES ADJUSTING VALUES ⁽¹⁾

A1 = 226

C1 = 490

A2 = 450

C2 = 450

B1 = 530

D1 = 210

B2 = 506

D2 = 505

⁽¹⁾	Adjustment values in mm.

Mark points of contact with adhesive tape.

Adjust spray nozzles using special tool 00 9 200.

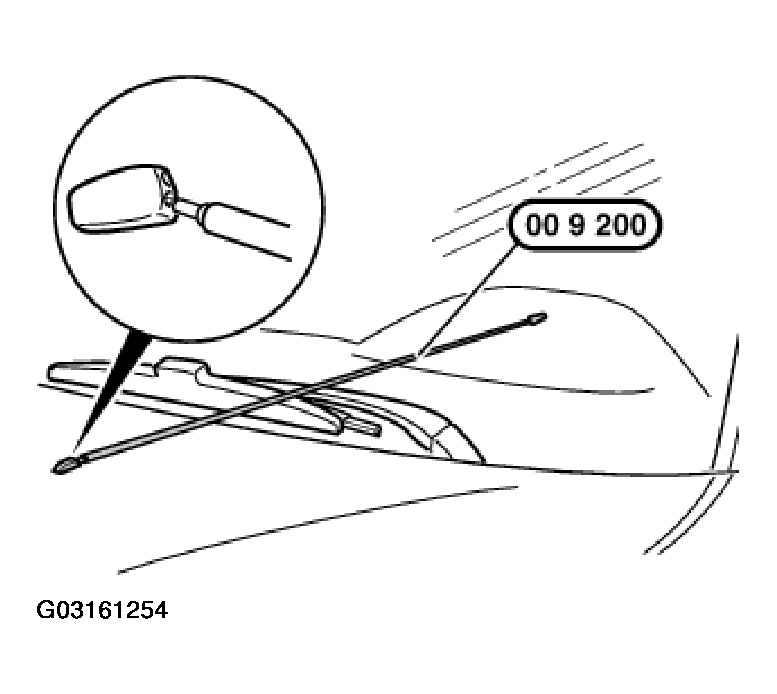

Fig 2: Adjusting Spray Nozzles

Courtesy of BMW OF NORTH AMERICA, INC.
