Driver's Side:

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover.

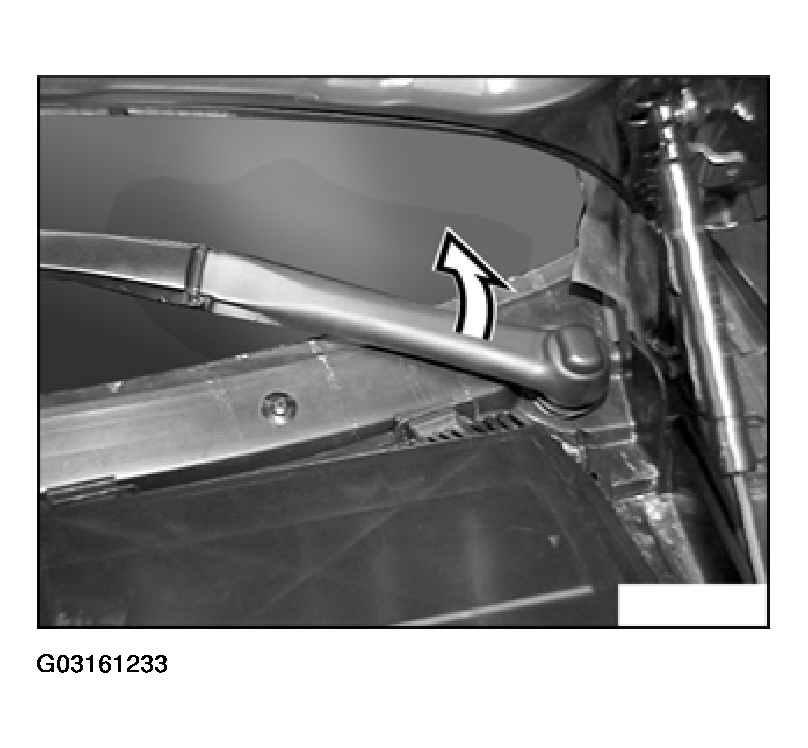

Fig 1: Removing Wiper Arm Cover (Driver's Side)

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not bend windshield wiper arm when removing it (risk of breakage!).

Release nut and remove windshield wiper arm.

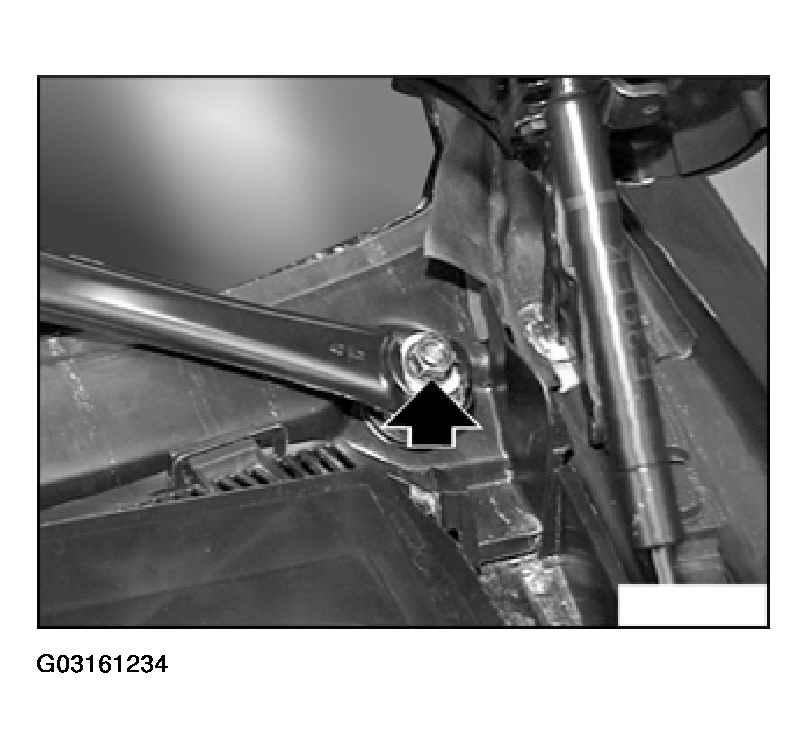

Fig 2: Removing Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 61 61 10AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES - 5-SERIES .

If necessary, detach adjusting disk (1) with special tool 61 6 060.

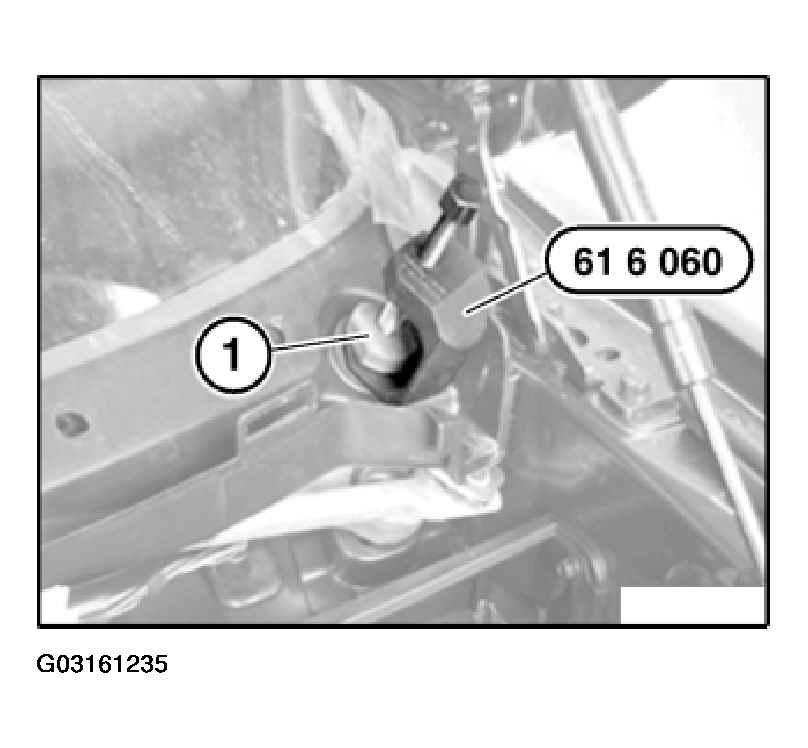

Fig 3: Removing Adjusting Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw adjusting disk (1) together with wiper arm onto shaft.

Check contact angle to windshield with special tool 00 9 230.

If necessary, correct contact angle through displacement of wiper arm on adjusting disk.
