61 61 010 Checking/adjusting approach angle of windshield wiper arms on front windscreen

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

At low vehicle speed and during intermittent operation, a precisely adjusted contact angle for the windshield wiper arms will increase wiping quality.

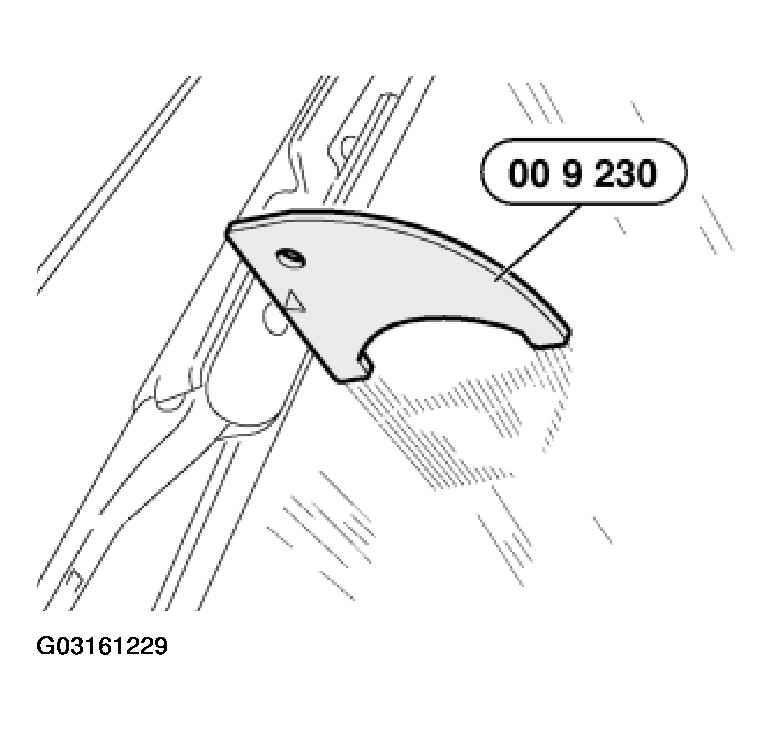

Place special tool 00 9 230 on windshield next to turning point of wiper blade.

Fig 1: Measuring Contact Angle Of Wiper Blade

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger Side:

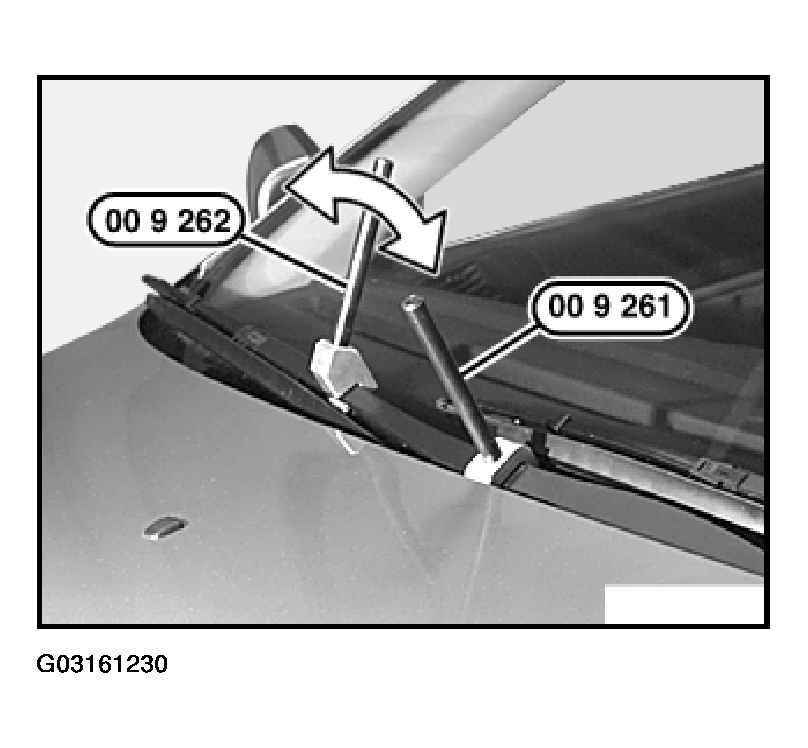

If the contact angle is faulty, grip windshield wiper arm with special tool 00 9 261 at joint and turn with special tool 00 9 262 into correct position.

Fig 2: Adjusting Contact Angle Of Wiper Blade (Passenger Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Driver's Side:

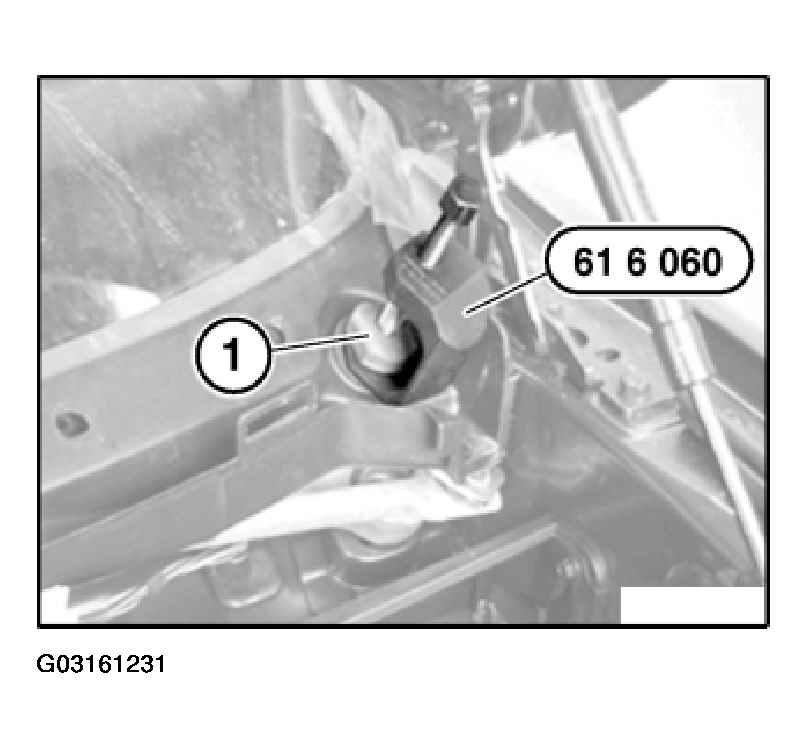

The contact angle of the wiper arm is adjusted by moving the wiper arm on the dial (1).

To remove dial: use special tool 61 6 000 or 61 0 060.

Fig 3: Adjusting Contact Angle Of Wiper Blade (Driver's Side)

Courtesy of BMW OF NORTH AMERICA, INC.
