61 31 396 Replacing relay for air supply system

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove spare wheel.

Remove screws and nuts. Turn air supply system over.

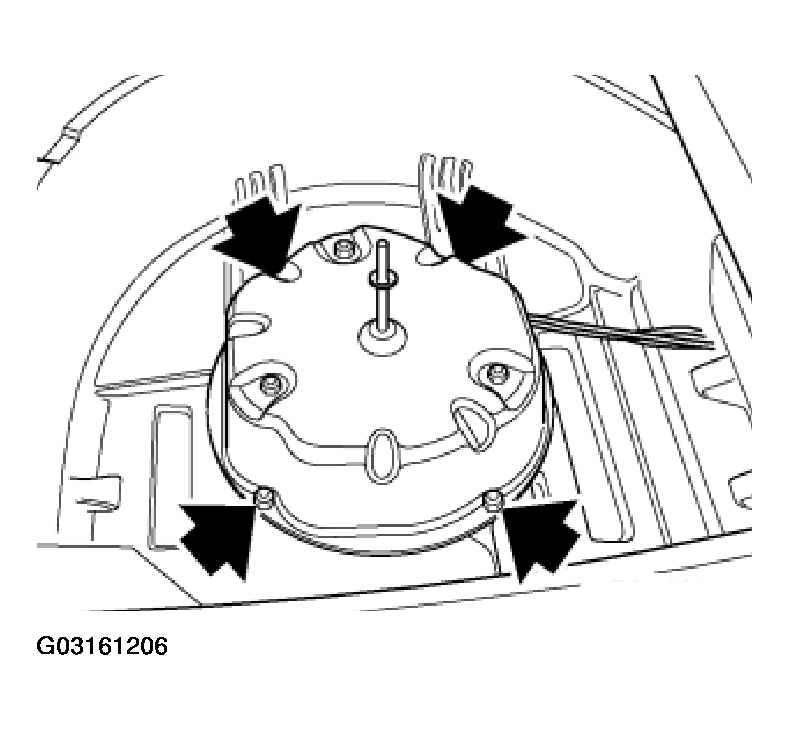

Fig 1: Locating Air Supply System
G03161206Courtesy of BMW OF NORTH AMERICA, INC.

Turn relay receptacle (1) through 45° and remove.

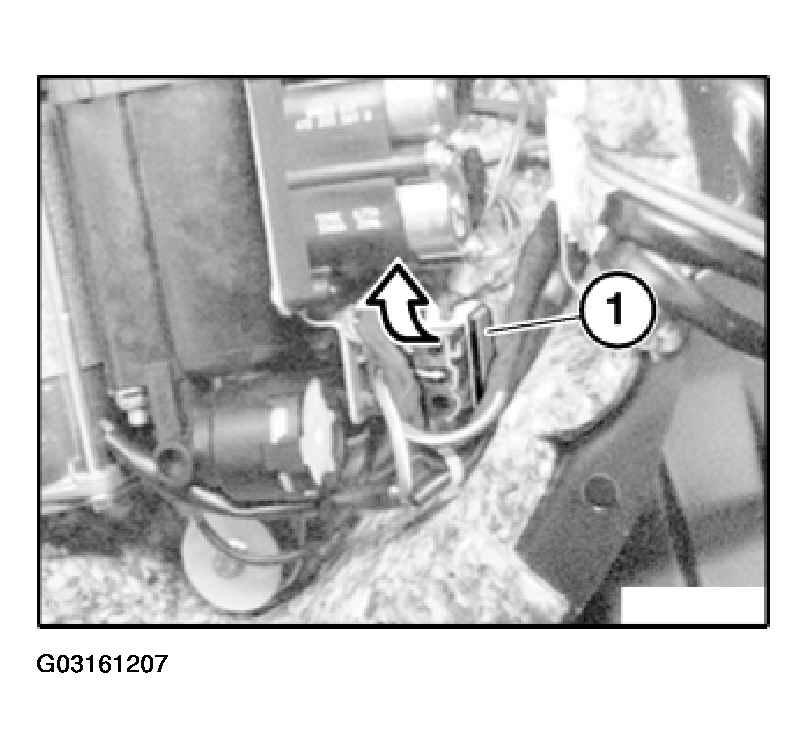

Fig 2: Removing Air Supply System Relay
G03161207Courtesy of BMW OF NORTH AMERICA, INC.
