61 31 245 Removing and installing/replacing rear window button

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing shaft bearing for rear wiper.

Disconnect connector (1) and remove rear window button (2).

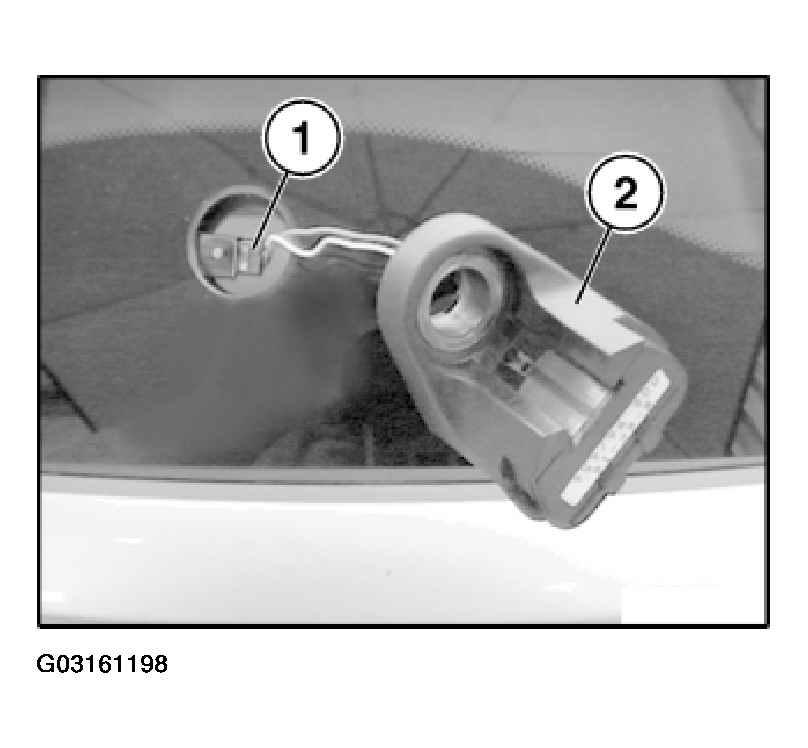

Fig 1: Removing Rear Window Button

Courtesy of BMW OF NORTH AMERICA, INC.
