61 31 224 Replacing switch on impact cushion for left or right airbag

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove airbag unit from steering wheel, refer to appropriate RESTRAINTS article. See AIR BAG CONTROL UNIT

Disconnect plug connection (1).

Loosen screws (2).

Remove switch on impact cushion for airbag (3) in direction of arrow.

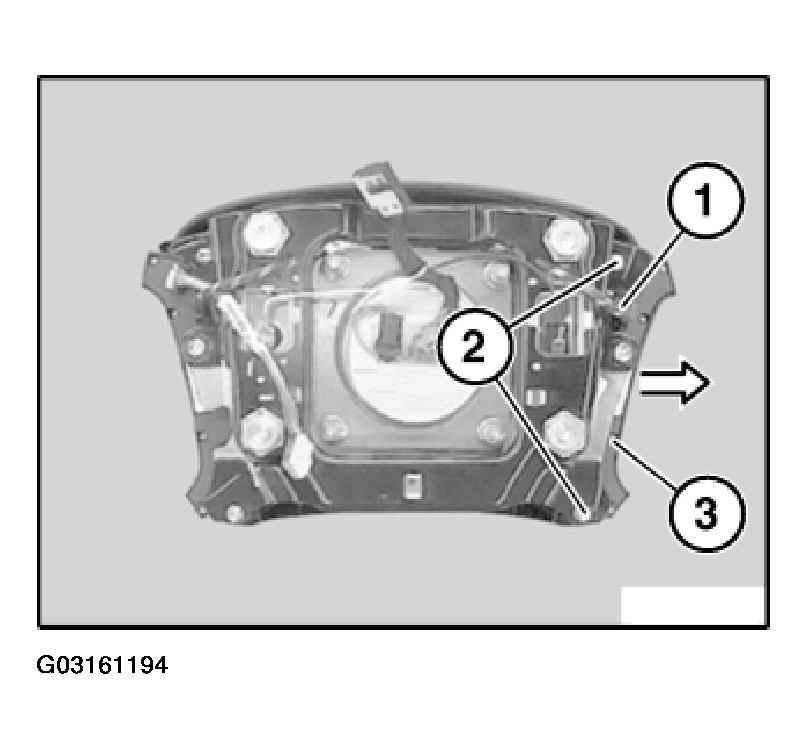

Fig 1: Removing Impact Cushion Switch
G03161194Courtesy of BMW OF NORTH AMERICA, INC.
