61 31 035 Removing and installing/replacing steering column adjustment lever

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bottom section of the steering column panelling, refer to STEERING COLUMN LOWER TRIM SECTION .

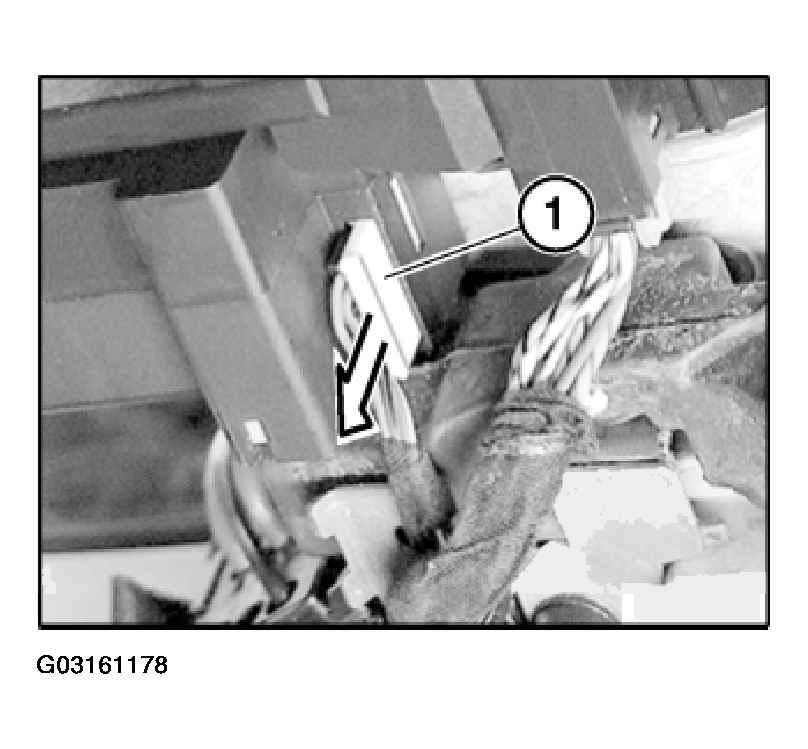

Disconnect plug connection (1) in direction of arrow.

Fig 1: Disconnecting Steering Column Adjustment Lever Connection

Courtesy of BMW OF NORTH AMERICA, INC.

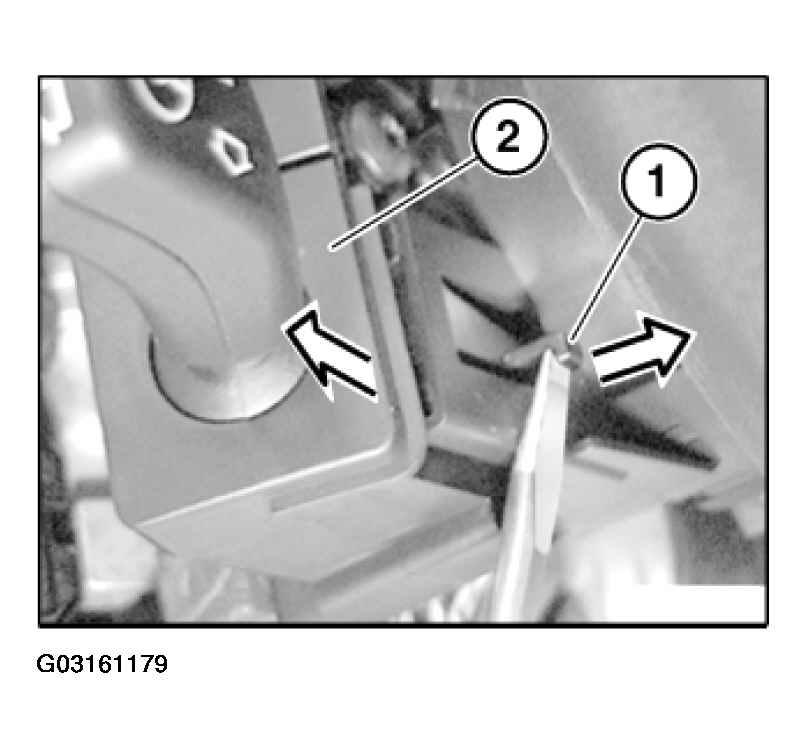

Raise lock (1) with a screwdriver in direction of arrow and pull out switch for steering column adjustment (2) in direction of arrow.

Fig 2: Removing Steering Column Adjustment Switch

Courtesy of BMW OF NORTH AMERICA, INC.
