61 31 020 Removing and installing the ignition switch

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bottom section of the steering column panelling, refer to STEERING COLUMN LOWER TRIM SECTION .

Unlock connector from ignition starter switch and remove.

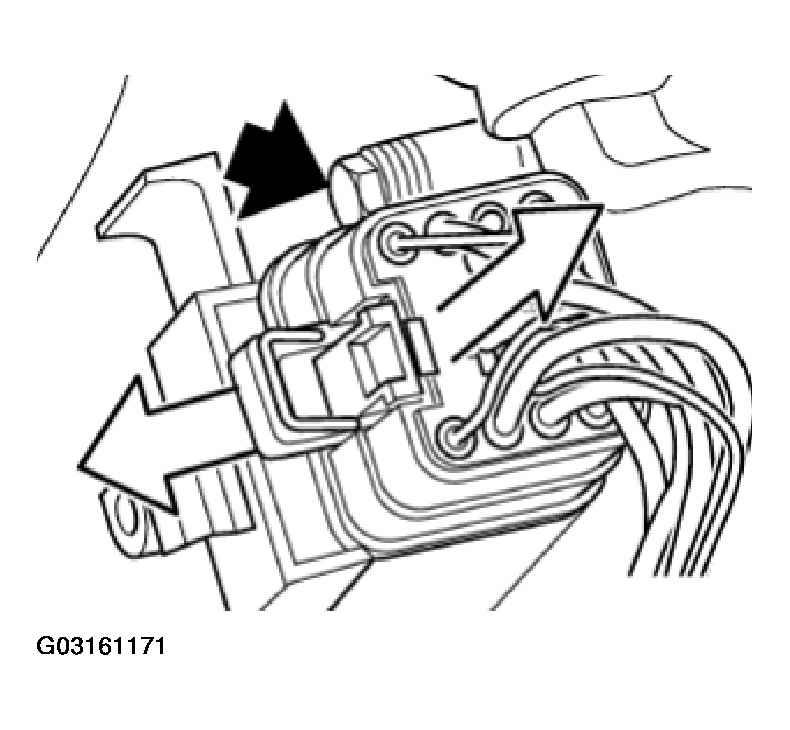

Fig 1: Removing Ignition Starter Switch Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective paint and unfasten grub screws. Remove ignition starter switch.

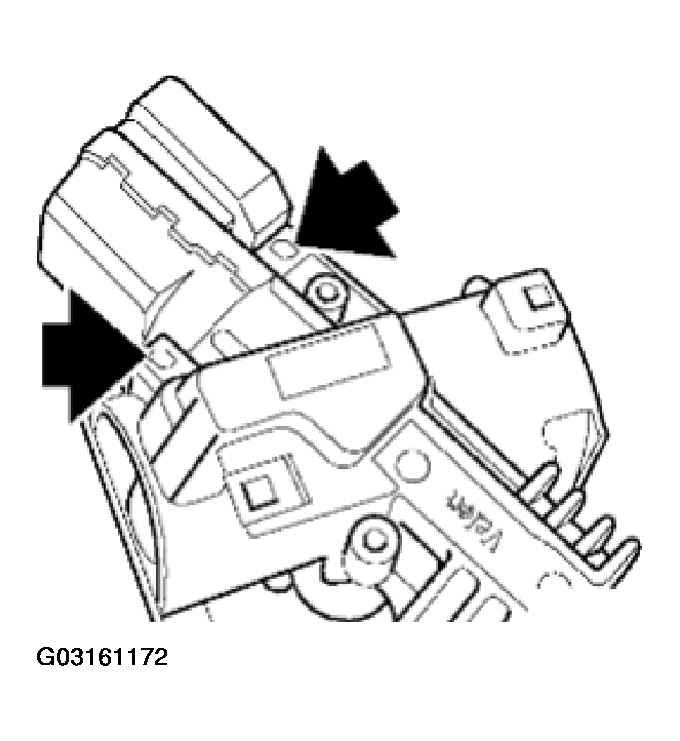

Fig 2: Removing Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note

Secure headless screws with varnish.
