61 31 005 Removing and installing/replacing fixture for steering column stalk

Necessary preliminary tasks:

• Remove steering wheel, refer to STEERING WHEEL .
• Remove lower section of steering column trim, refer to STEERING COLUMN LOWER TRIM SECTION .
• Remove top section of steering column casing, refer to STEERING COLUMN UPPER TRIM SECTION .

If necessary, disconnect plug connection (1) at mount for steering column stalk.

If necessary, disconnect plug connection (2) at stalk for steering column adjustment.

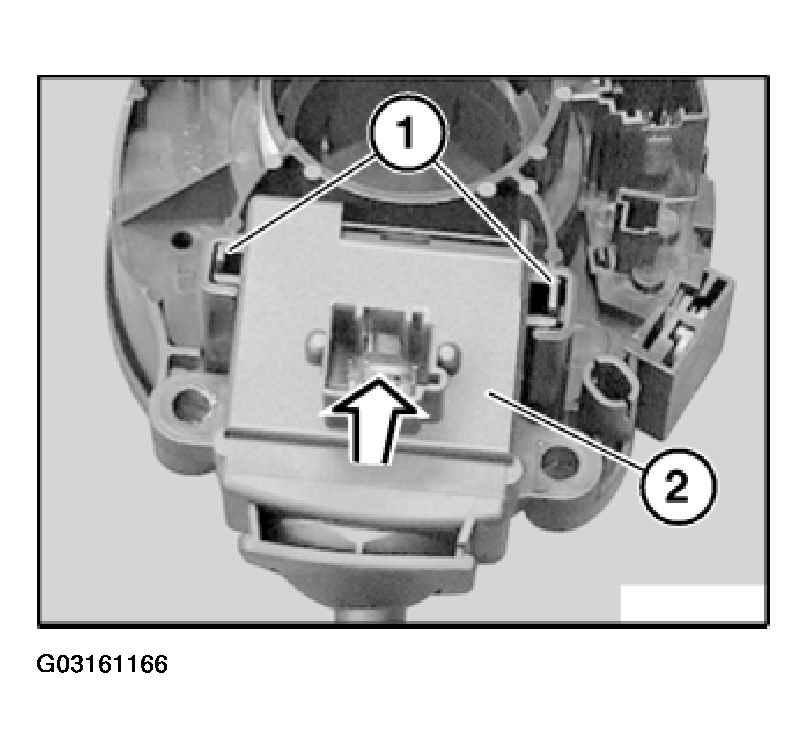

Fig 1: Disconnecting Plug Connection At Stalk For Steering Column Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on wiper switch.

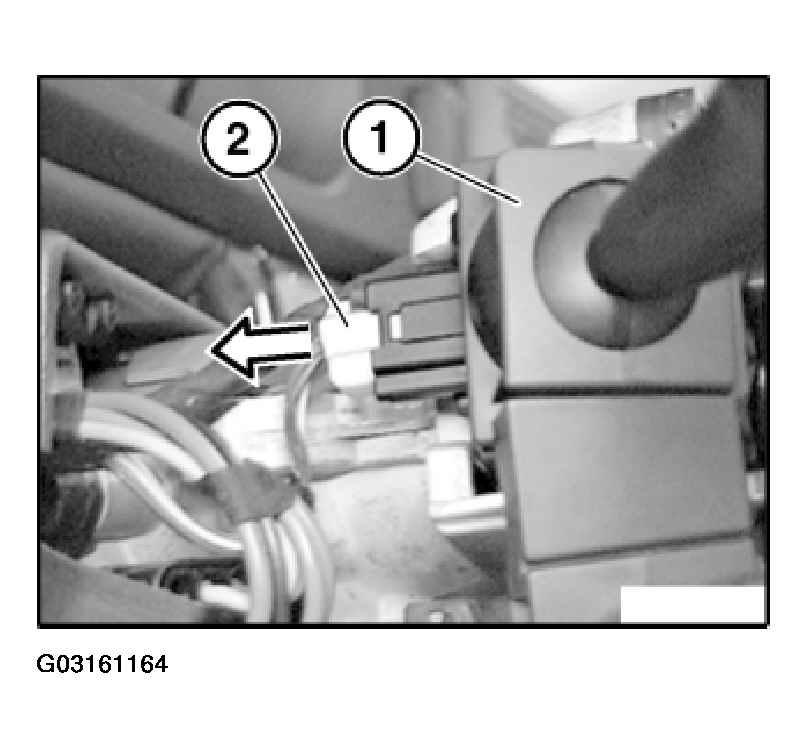

Fig 2: Disconnecting Plug Connection Of Wiper Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2) on turn indicator/dipping switch (1).

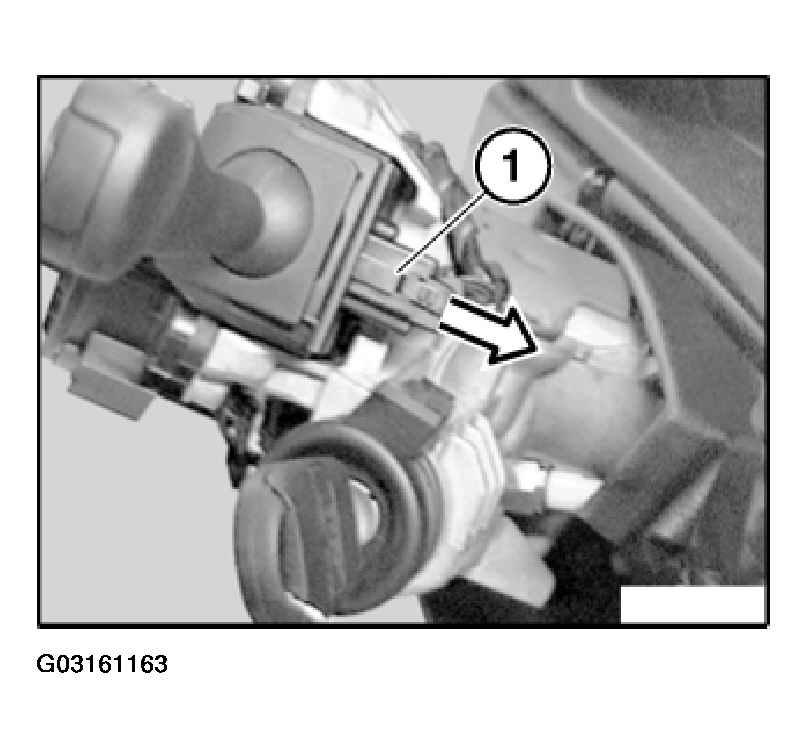

Fig 3: Disconnecting Plug Connection Of Turn Indicator/Dipping Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove fixture for steering column stalk (2).

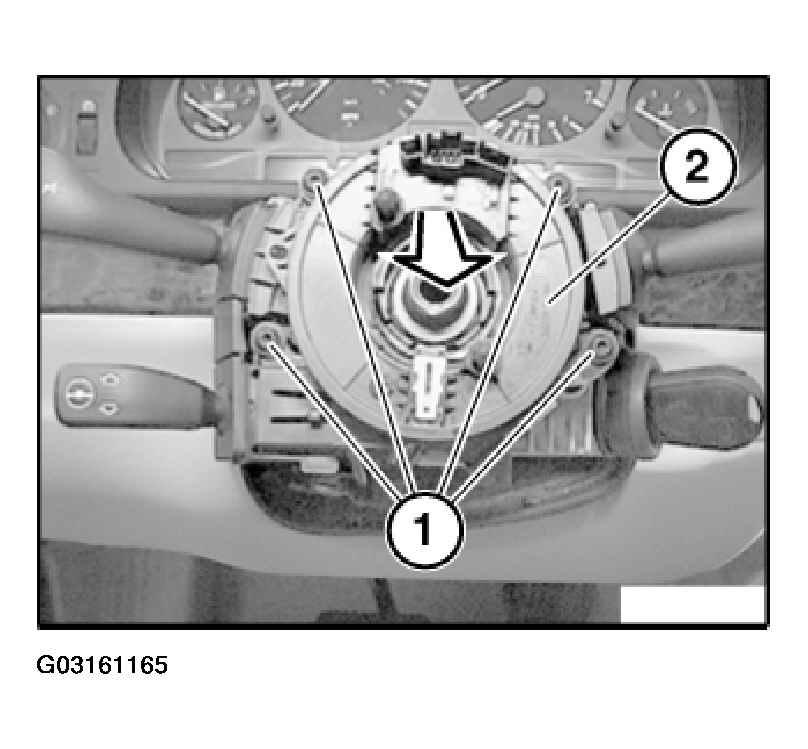

Fig 4: Removing Fixture For Steering Column Stalk

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainers (1) and pull out switch for windshield wipers (2) towards top.

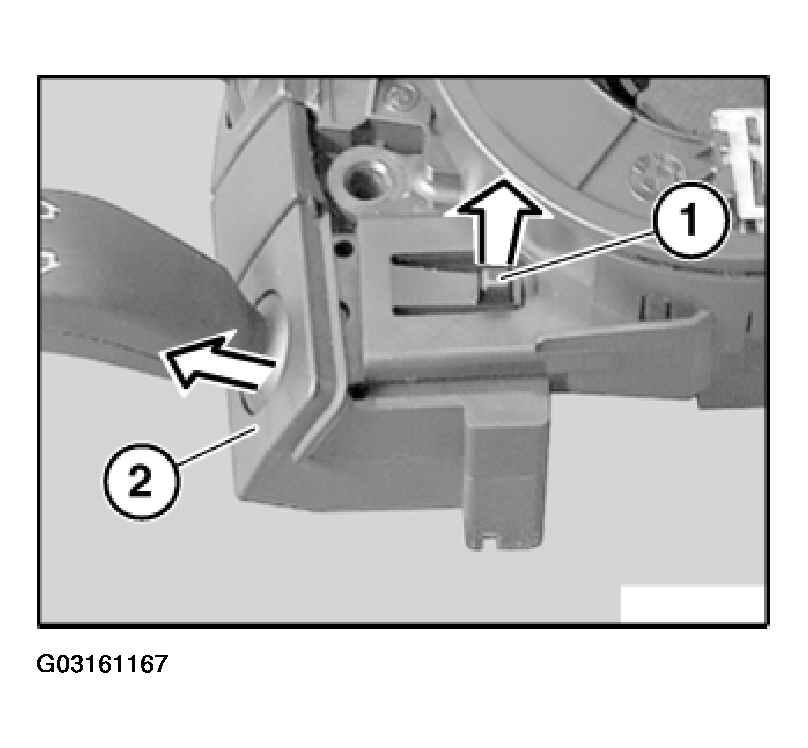

Fig 5: Removing Switch For Windshield Wipers

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove switch for steering column adjustment.

Raise lock (1) in direction of arrow and slide stalk for steering column adjustment (2) in direction of arrow.

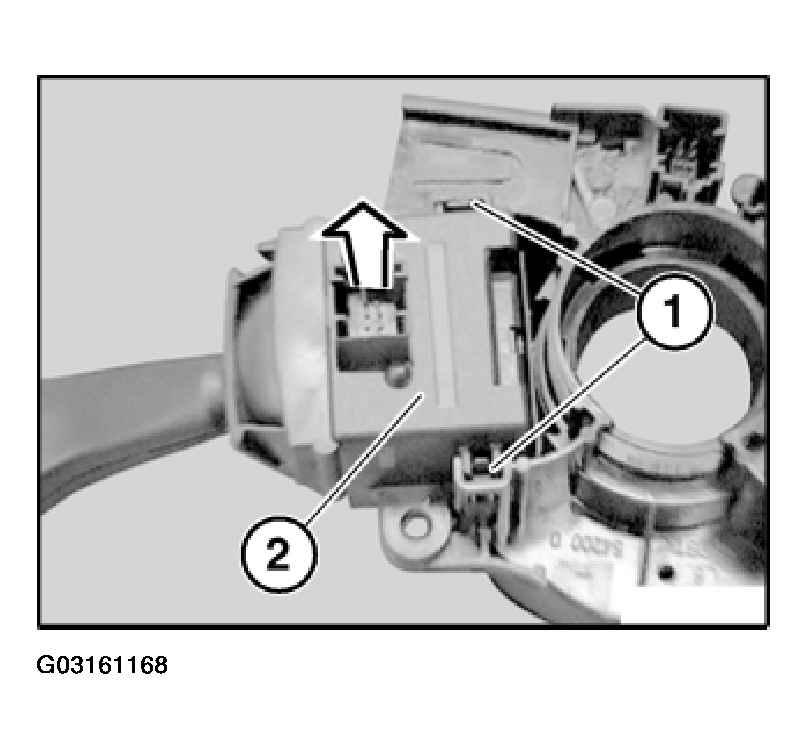

Fig 6: Removing Stalk For Steering Column Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainers (1) and pull outturn indicator/dipping switch (2) towards top.

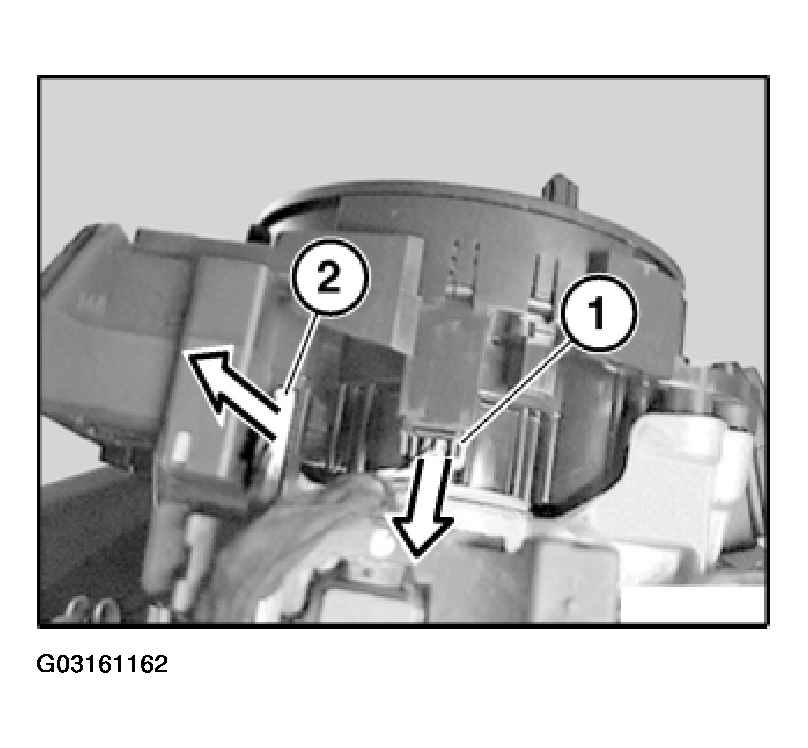

Fig 7: Removing Turn Indicator/Dipping Switch

Courtesy of BMW OF NORTH AMERICA, INC.
