61 13... Opening plug housings and removing contacts of different plug systems
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Abbreviations and what they mean:
ABBREVIATIONS
| MDK 3plus | Miniature double flat spring contact |
| JPT ELA | Junior Power Timer flat spring contacts with strand sealing |
| DFK ELA | Double flat spring contacts with strand sealing |
| Elo | Electronic contacts with and without strand sealing Manufacturer: Siemens |
| Elo Power | Electronic contacts for heavy loads with and without strand sealing Manufacturer: Siemens |
| MQS | Micro Quadlock System electronic contacts with and without strand sealing Manufacturer: AMP |
| MPQ | Micro Power Quadlock electronic contacts for heavy loads with and without strand sealing Manufacturer: AMP |
| D 1.5 / 2.5 | Round contacts of 1.5 mm or 2.5 mm diameter |
Ultrasonic-Welded Connectors:

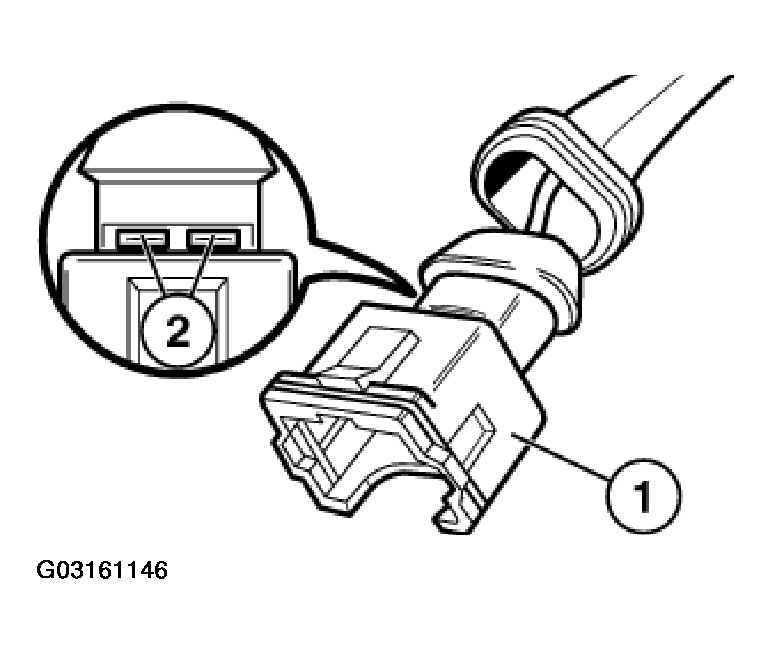

Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
The contacts of these connectors cannot be replaced. Replace plug completely.
NOTE:
Special tools referred to in the repair instructions below are contained in the following special tool kits:
Release and press-out tool 61 1 150
Release and press-out tool 61 1 150
