Stripping Insulation From Optical Fibre

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open pliers (1).

Open lever (2) in direction of arrow.

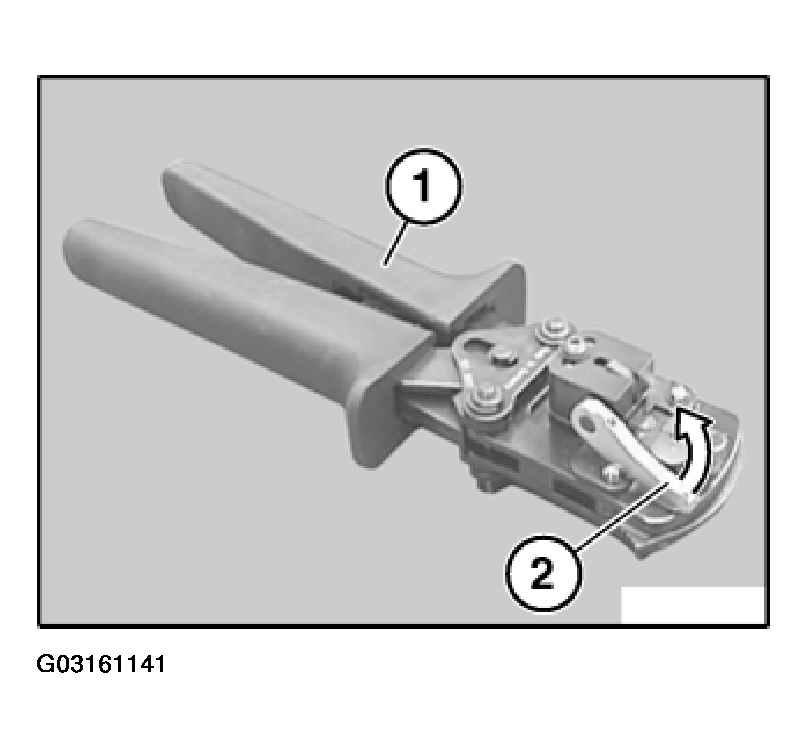

Fig 1: Opening Pliers And Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

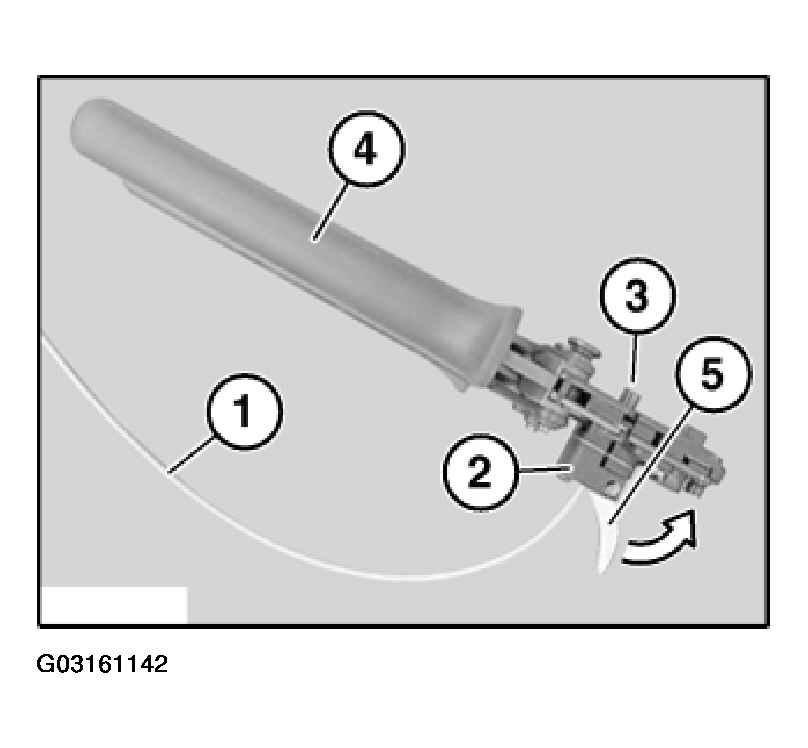

Fig 2: Stripping Optical Fibre Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A stripping replacement blade set is available under number 61 4 327.
