Cutting Off, Stripping Insulation And Cutting Optical Fibres To Length: Notes

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

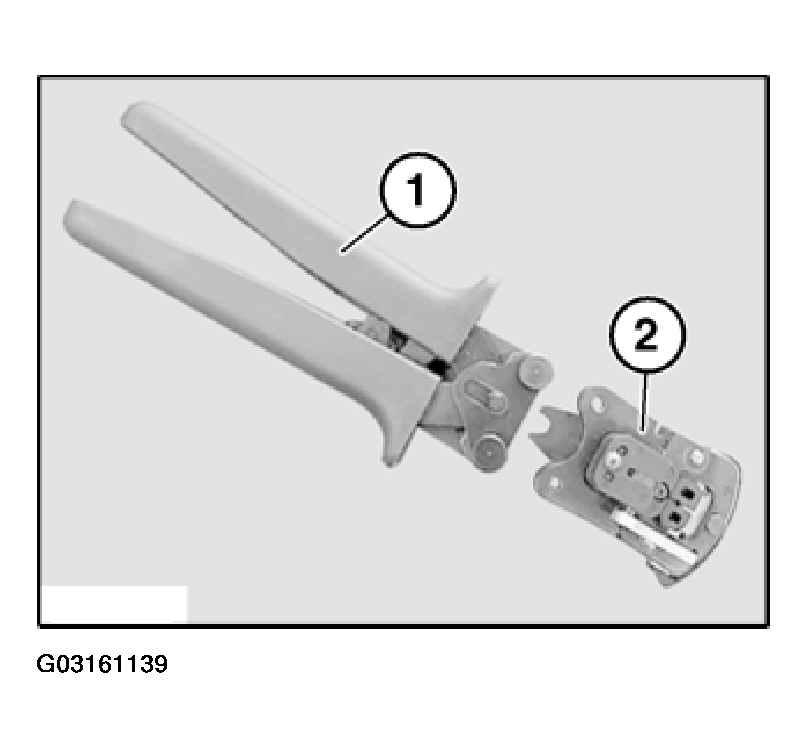

Fig 1: Identifying Pliers 61 4 321 And Crimping Head 61 4 323

Courtesy of BMW OF NORTH AMERICA, INC.
