Cutting Optical Fibre To Length

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

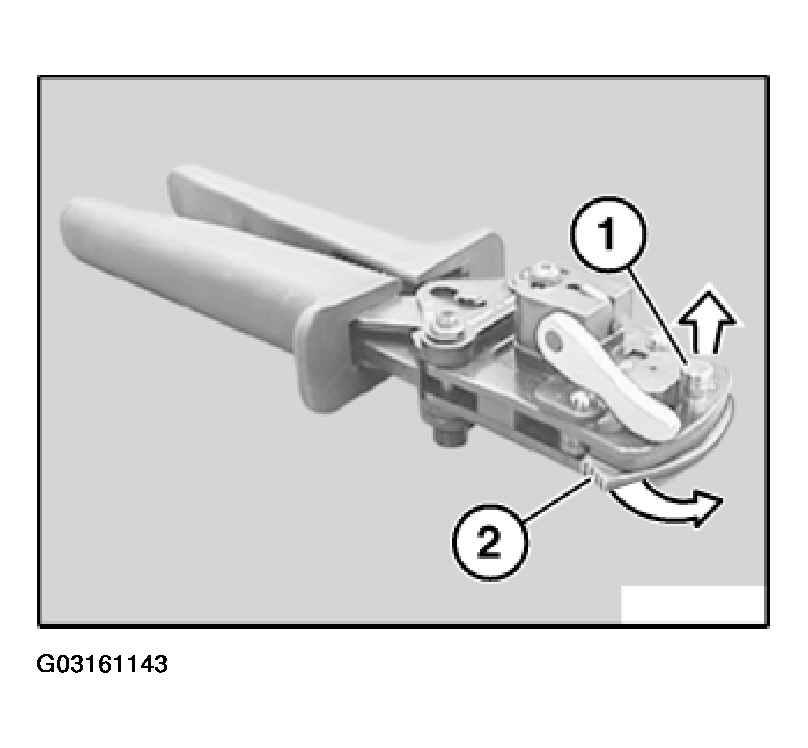

Fig 1: Preparing Cutting Tool

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Installation:

Make sure blade (1) is correctly seated on locating points (2).

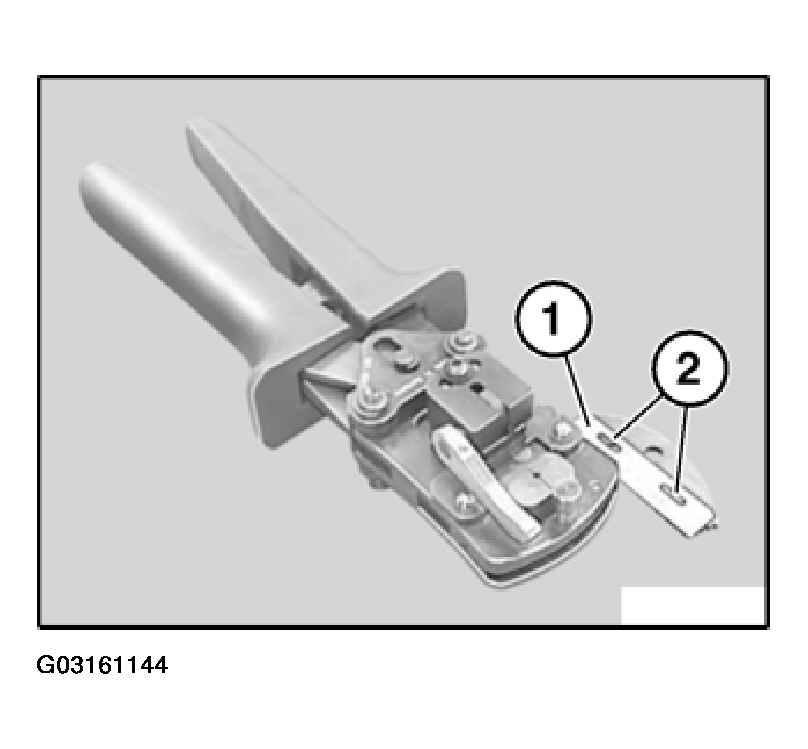

Fig 2: Installing Cutting Blade In Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

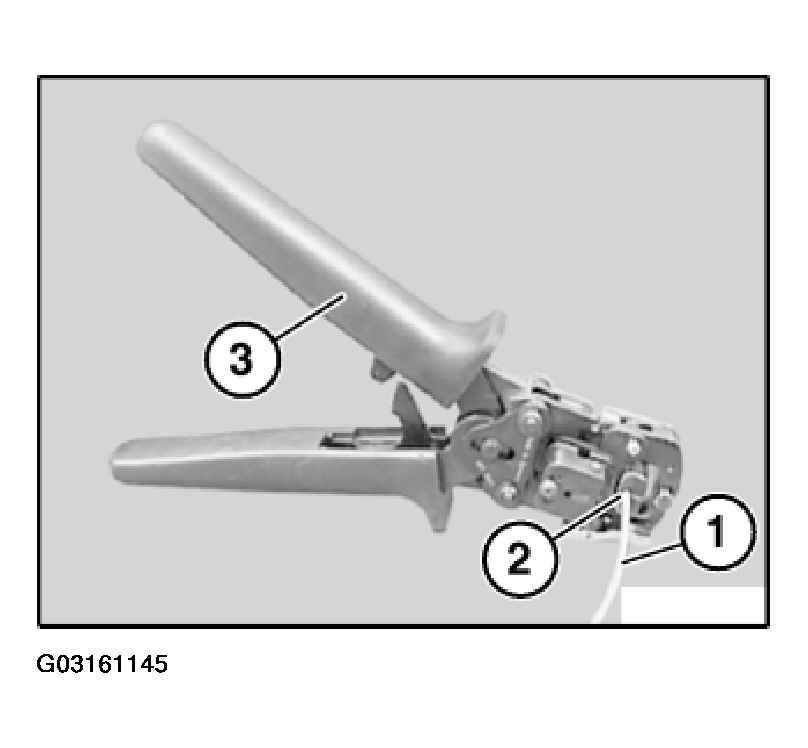

Fig 3: Cutting Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.
