61 13... Base of tab connector housings

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

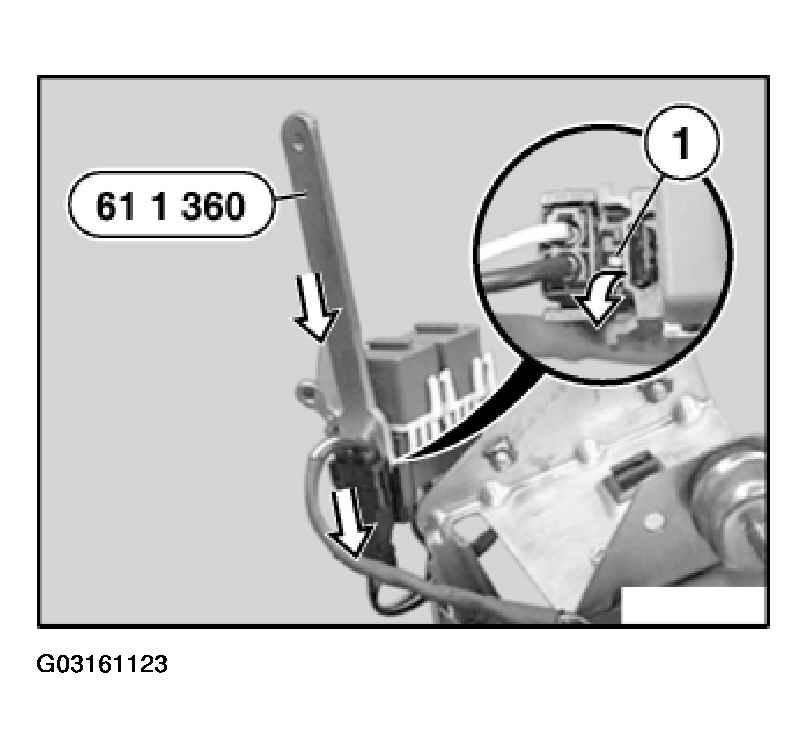

Fig 1: Disconnecting Base Tabs
G03161123Courtesy of BMW OF NORTH AMERICA, INC.
