61 13.. Unlocking and disconnecting different plug connections

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Examples of unlocking and disconnecting different plug connections.

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Identifying & Disconnecting Plug Connector (1 Of 9)

G03161078

Courtesy of BMW OF NORTH AMERICA, INC.

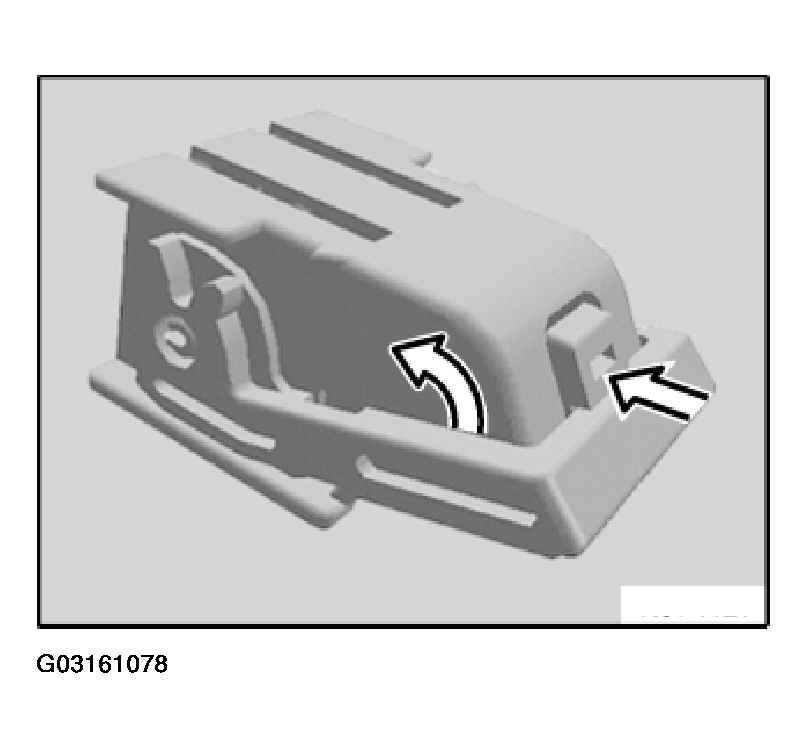

Press lock and open clip in direction of arrow.

Disconnect plug connection.

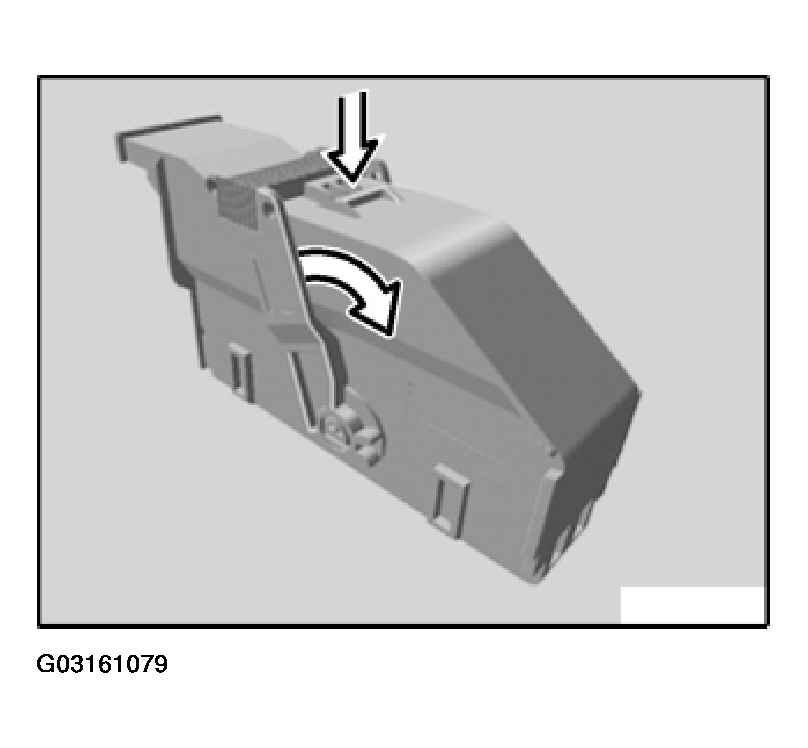

Fig 2: Identifying & Disconnecting Plug Connector (2 Of 9)

G03161079

Courtesy of BMW OF NORTH AMERICA, INC.

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

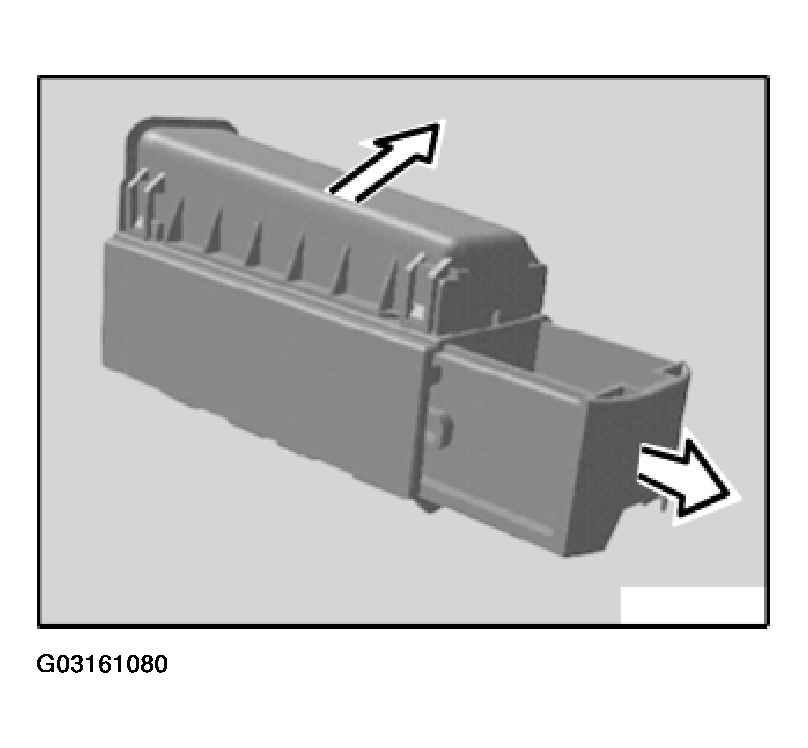

Fig 3: Identifying & Disconnecting Plug Connector (3 Of 9)

G03161080

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

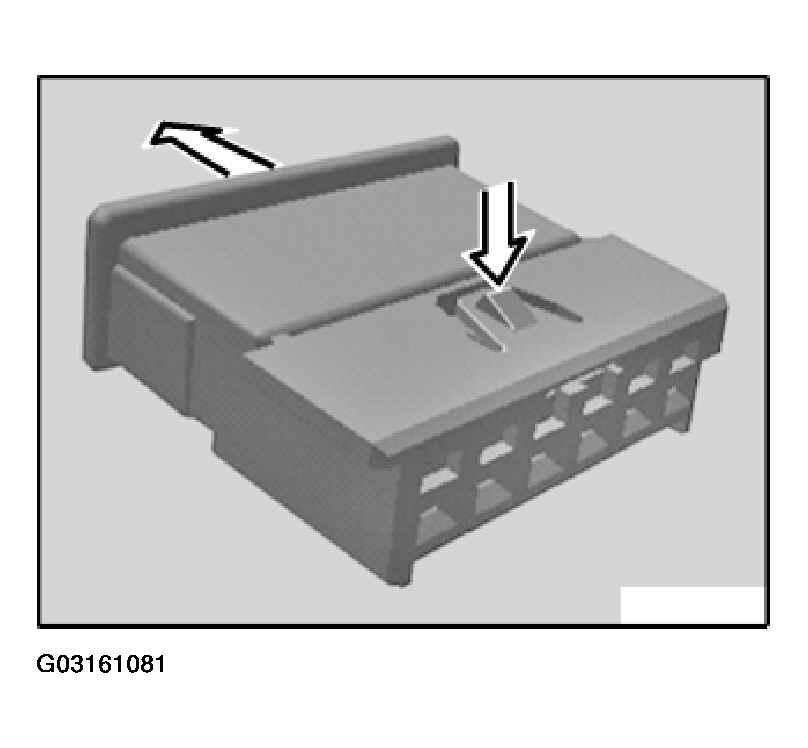

Fig 4: Identifying & Disconnecting Plug Connector (4 Of 9)

G03161081

Courtesy of BMW OF NORTH AMERICA, INC.

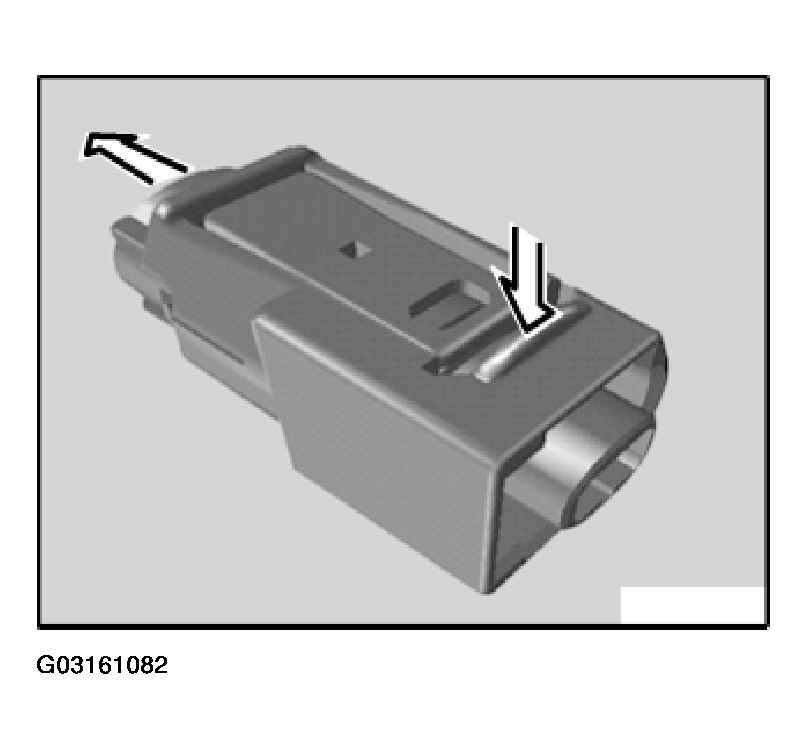

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Identifying & Disconnecting Plug Connector (5 Of 9)

G03161082

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

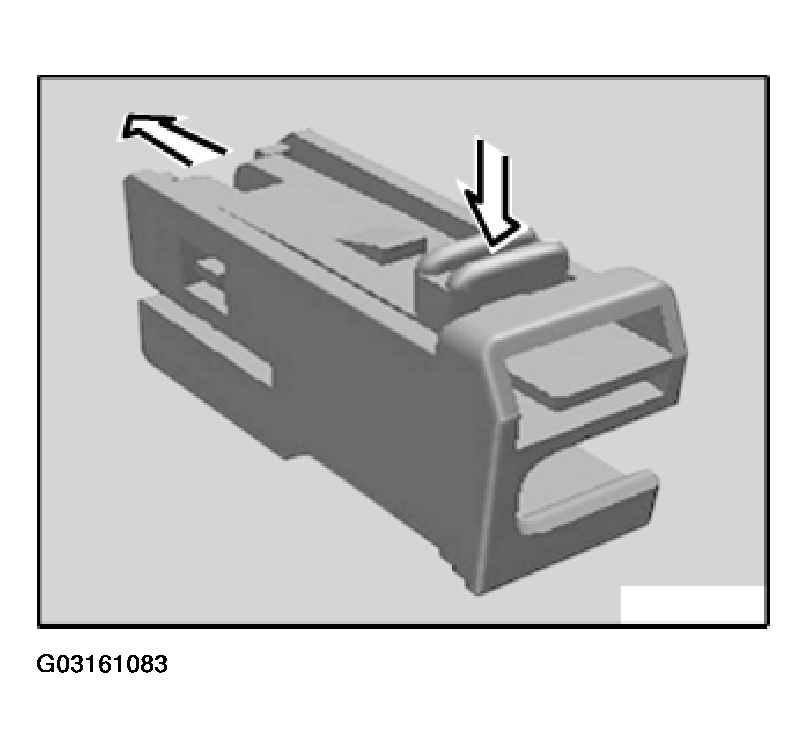

Fig 6: Identifying & Disconnecting Plug Connector (6 Of 9)

G03161083

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

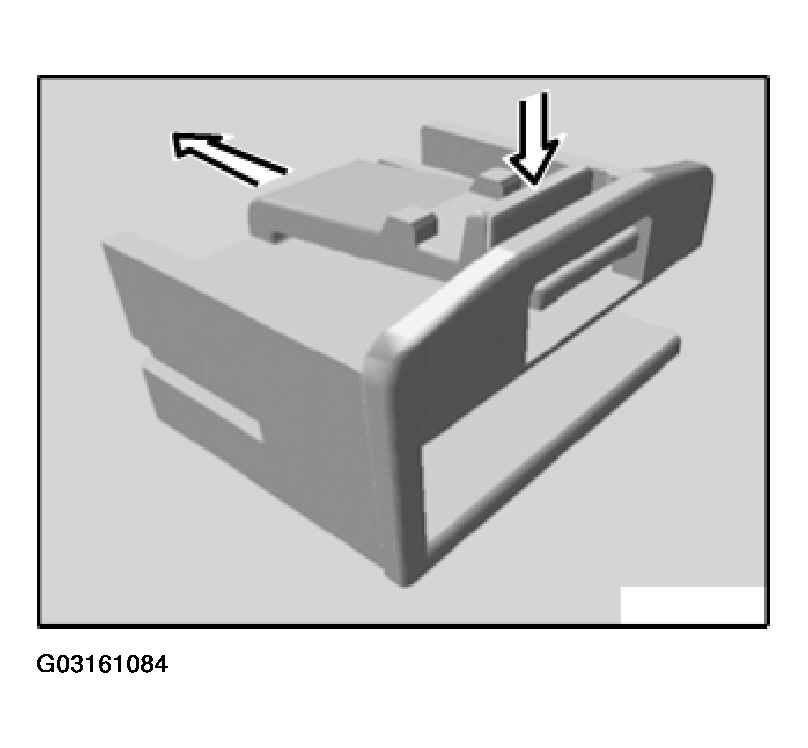

Fig 7: Identifying & Disconnecting Plug Connector (7 Of 9)

G03161084

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

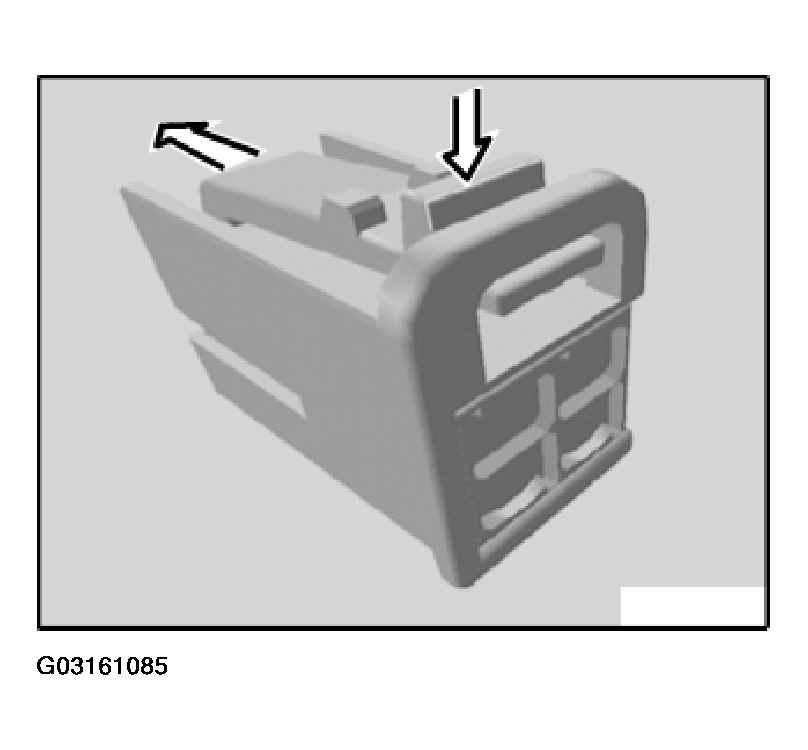

Fig 8: Identifying & Disconnecting Plug Connector (8 Of 9)

G03161085

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

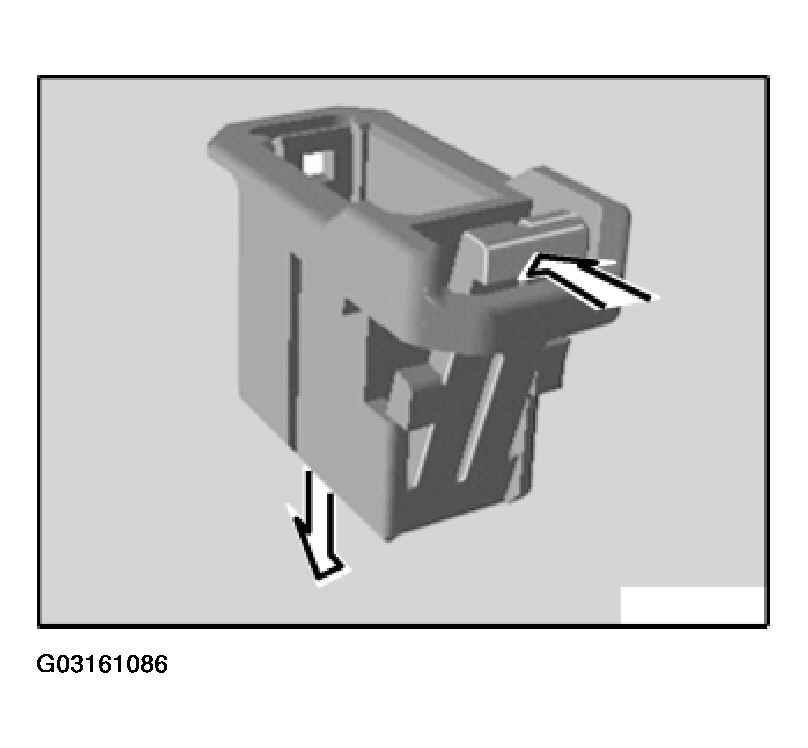

Fig 9: Identifying & Disconnecting Plug Connector (9 Of 9)

G03161086

Courtesy of BMW OF NORTH AMERICA, INC.
