61 67 040 Adjusting spray nozzles for headlight-cleaning system

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Spray jet contact point approx. in center of lower-beam headlamp.

Adjust spray jet contact point with special tool 61 6 200.

Fig 1: Adjusting Spray Jet Contact Point (Lower-Beam Headlamp)

Courtesy of BMW OF NORTH AMERICA, INC.

Spray jet contact point approx. in center of high-beam headlamp.

Adjust spray jet contact point with special tool 61 6 200.

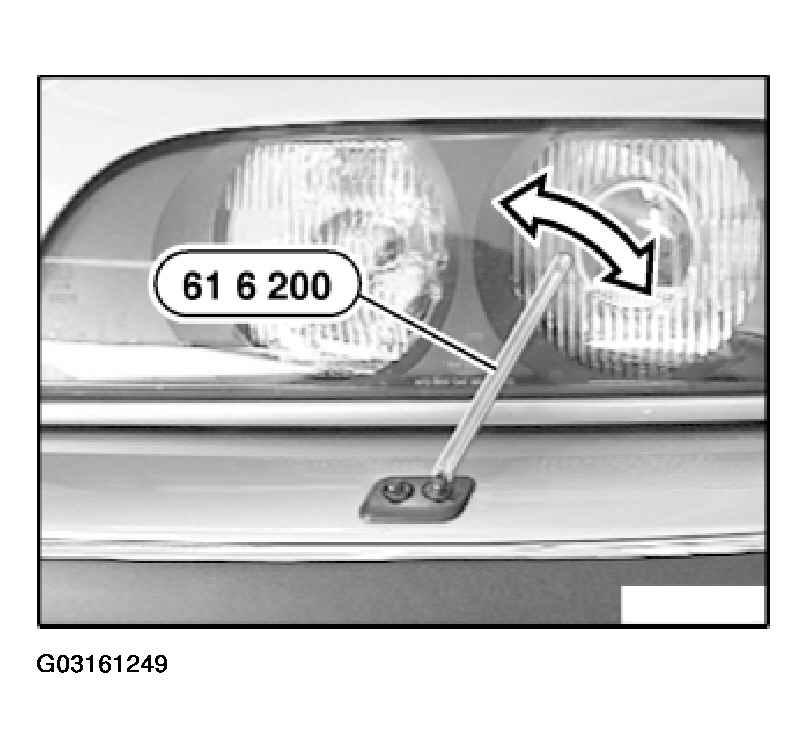

Fig 2: Adjusting Spray Jet Contact Point (High-Beam Headlamp)

Courtesy of BMW OF NORTH AMERICA, INC.
