61 35 900 Removing and installing/replacing ring antenna of electronic immobiliser

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

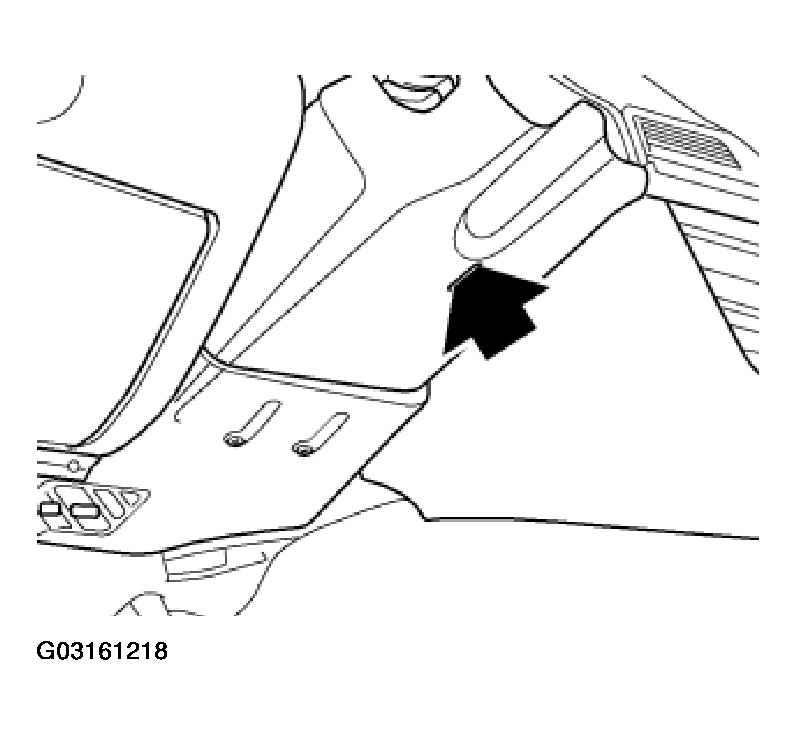

Unscrew screw.

Fig 1: Remove Lower Steering Column Trim Screw

G03161218

Courtesy of BMW OF NORTH AMERICA, INC.

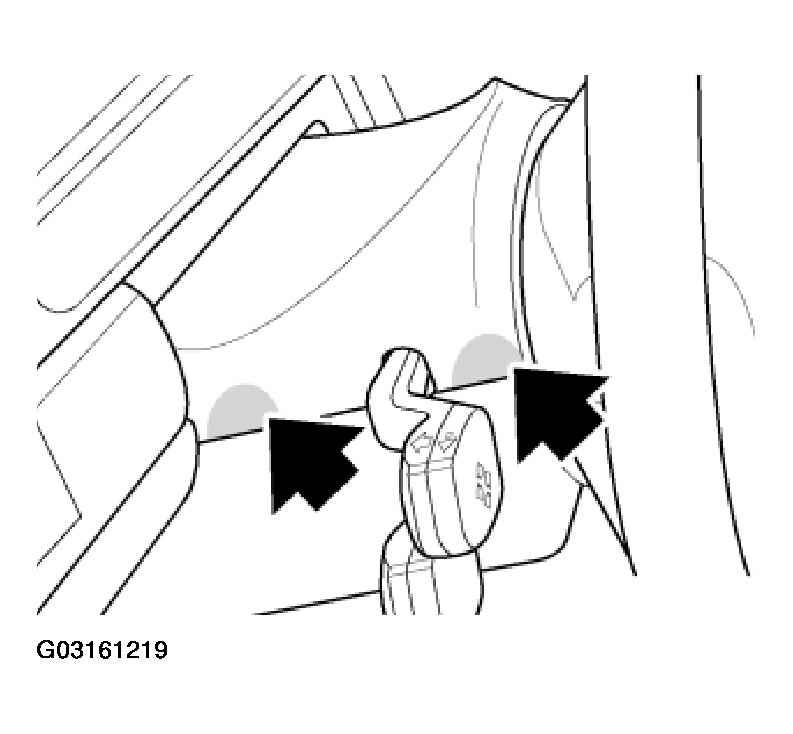

Press upper section of steering column trim inwards on both sides in areas shown, detach lower section from below and allow it to hang down.

Fig 2: Removing Lower Steering Column Trim

G03161219

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

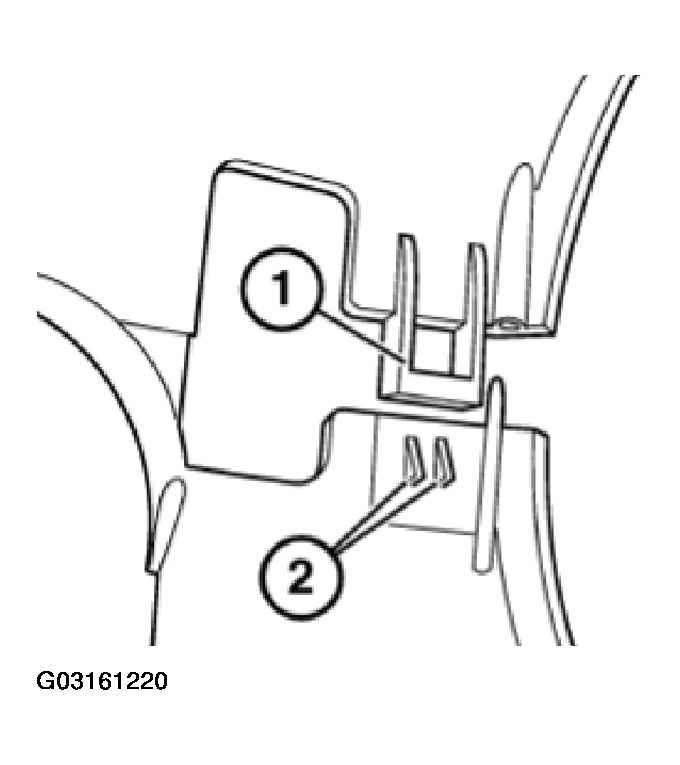

Locking unit (1) must locate in the hook (2).

Fig 3: Installing Lower Steering Column Trim

G03161220

Courtesy of BMW OF NORTH AMERICA, INC.

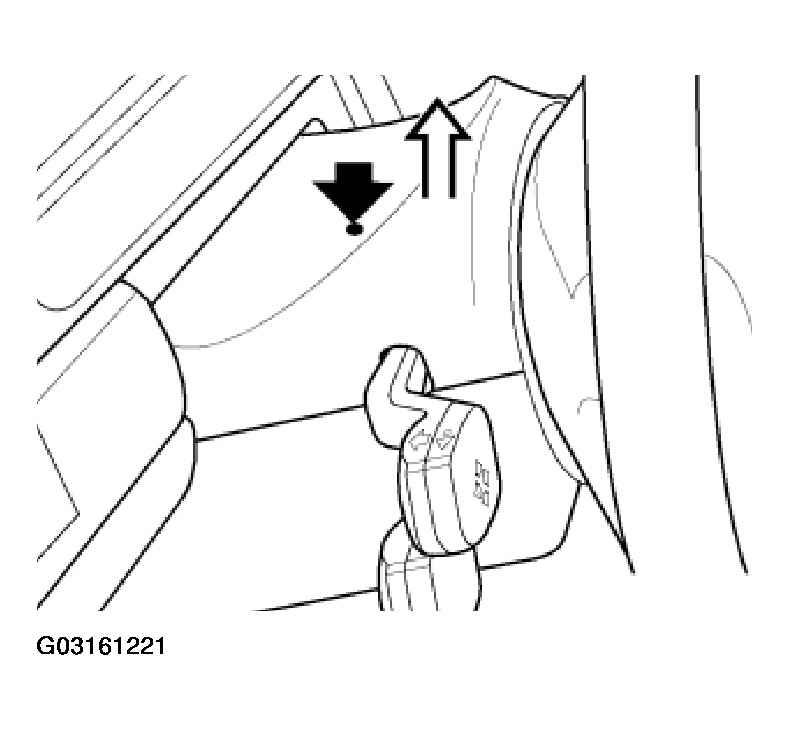

Release screw and raise upper panel.

Fig 4: Removing Upper Steering Column Trim

G03161221

Courtesy of BMW OF NORTH AMERICA, INC.

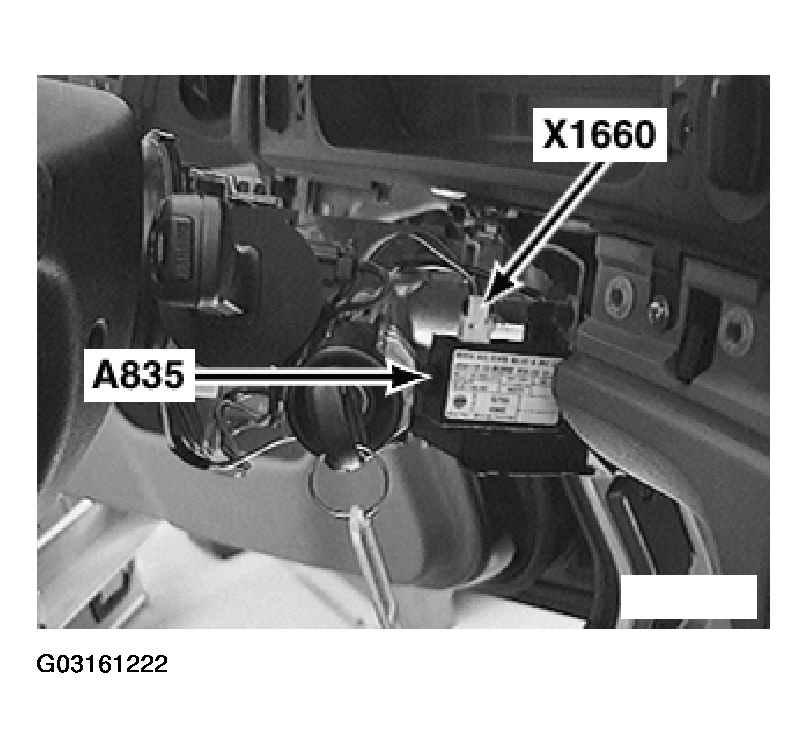

Remove transceiver module and disconnect plug.

Fig 5: Removing Transceiver Module And Disconnecting Plug

G03161222

Courtesy of BMW OF NORTH AMERICA, INC.

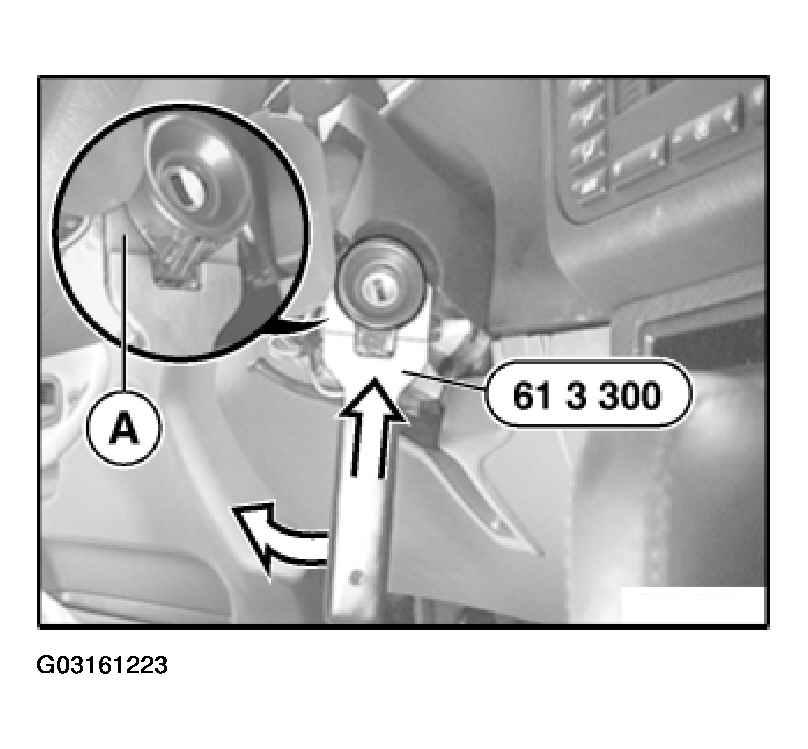

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.

Fig 6: Removing Electronic Immobiliser Ring Antenna

G03161223

Courtesy of BMW OF NORTH AMERICA, INC.
