54 12 496 Removing and installing or replacing wind deflector

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open slide/tilt sunroof.

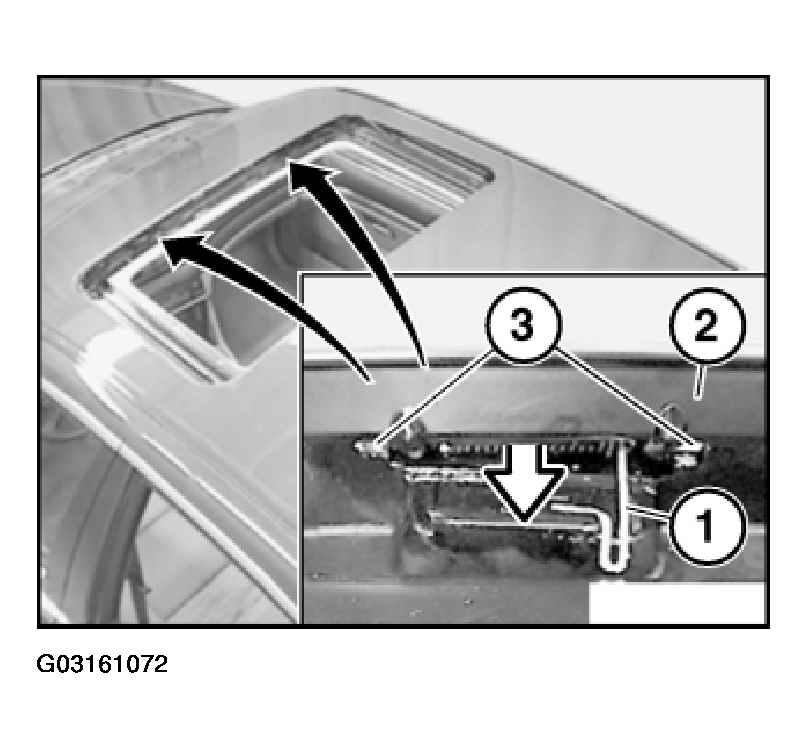

Lift out left/right spring (1) and pull wind deflector (2) backwards slightly to remove from mount (3).

Fig 1: Lifting Out Left/Right Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install spring (1) correctly.

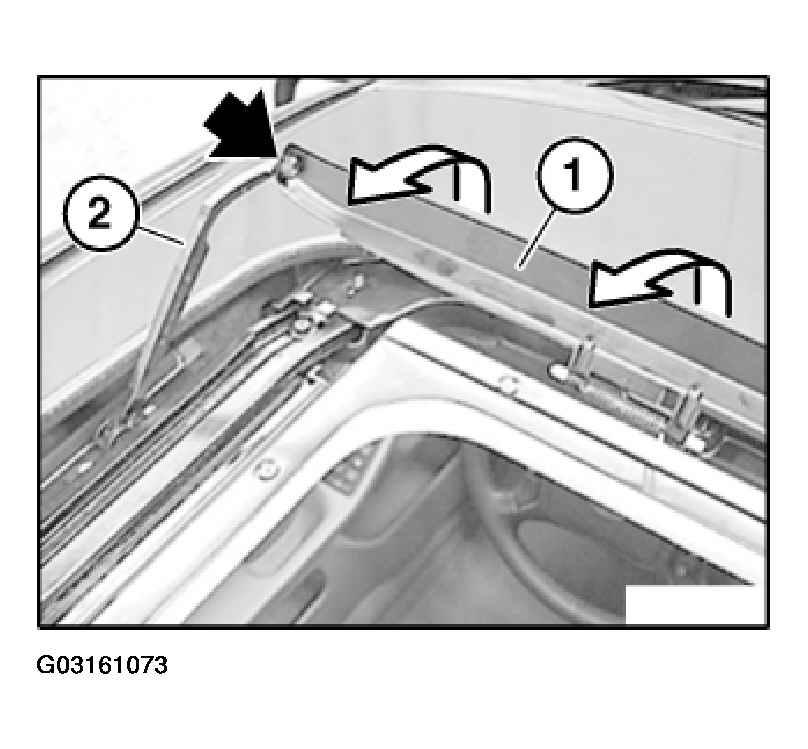

Raise wind deflector (1) slightly, turn and pull off left/right lever (2).

Fig 2: Removing Wind Deflector Levers

Courtesy of BMW OF NORTH AMERICA, INC.

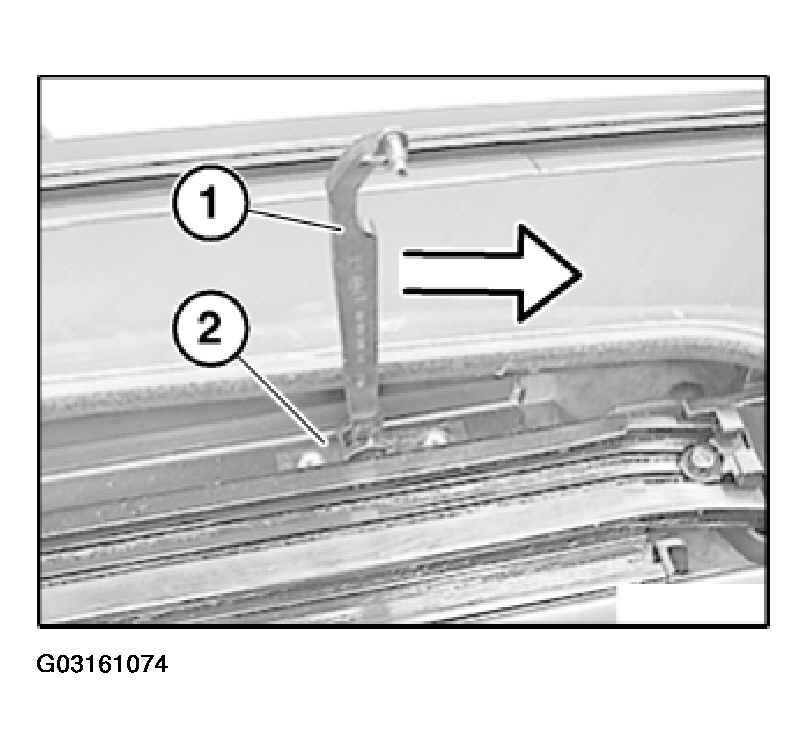

Move left/right lever (1) into vertical position and pull forwards off mount (2).

Fig 3: Removing Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function.
