54 12 120 Replacing seal for slide/tilt sunroof lid
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Observe note on repairing bonded seals on slide/tilt sunroof, refer to 54 0... REPAIR INSTRUCTIONS FOR BONDED SEALS .
Open slide/tilt sunroof completely.

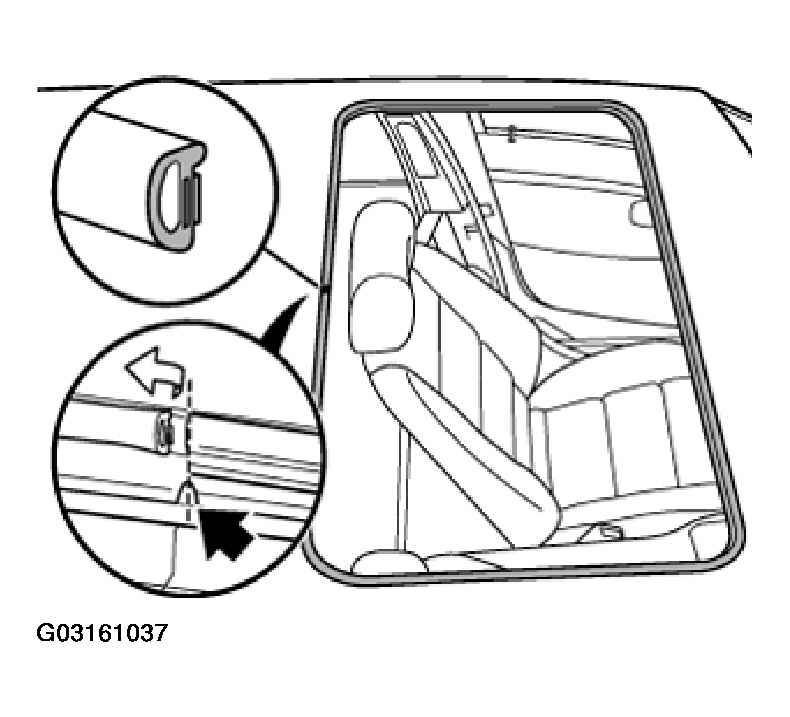

Begin removal at contact edge (mostly rear center):
- Peel Off Rubber Seal
- Clean Bonded Area
Installation:
Also begin at specified point of contact edge for installation:
- Stick On Rubber Seal In Sections
- Establish Seal Joint
- Press On Seal
