54 12 004 Adjusting sun roof

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not move floating roof liner with force.
Follow procedure precisely because otherwise mechanism (guide) on slide/tilt sunroof cassette can be damaged. It then has to be replaced.

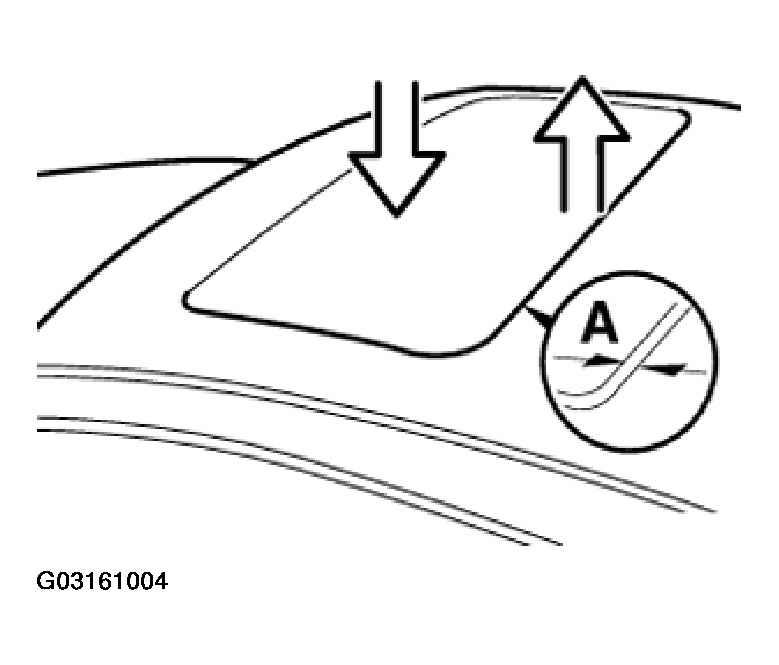

Ideal adjustment:

Gaps (A) between sunroof and front and back of roof of equal size.

Height:

Front - Flush To 1 Mm Deeper
Rear - Flush To 1 Mm Higher

Fig 1: Identifying Gap "A" Between Sunroof And Roof

Courtesy of BMW OF NORTH AMERICA, INC.

Initializing slide/tilt sunroof,

refer to 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE)

Closing slide/tilt sunroof lid (zero setting).

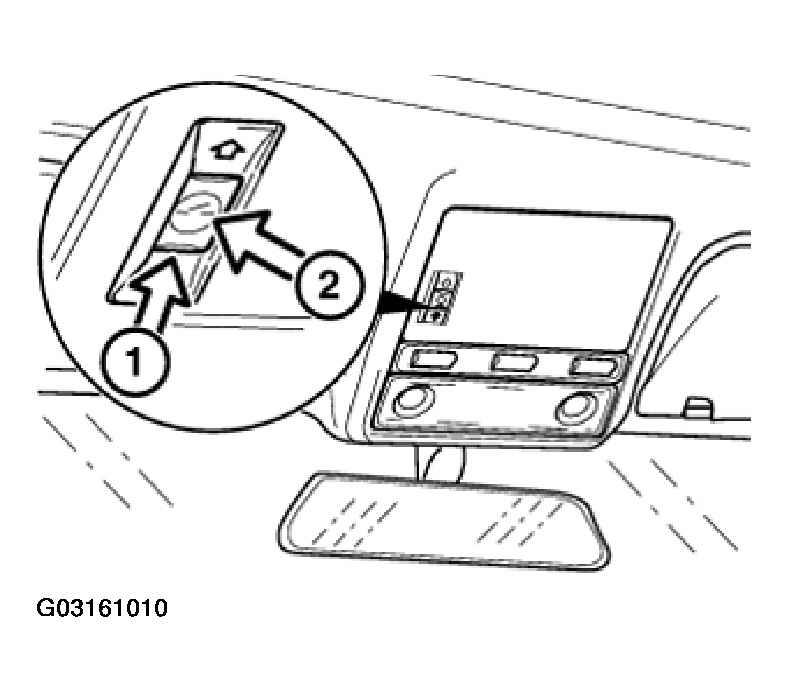

Press button to open roof briefly (1) then stop again (2) (inching function).

Fig 2: Identifying Sunroof Switch Positions

Courtesy of BMW OF NORTH AMERICA, INC.

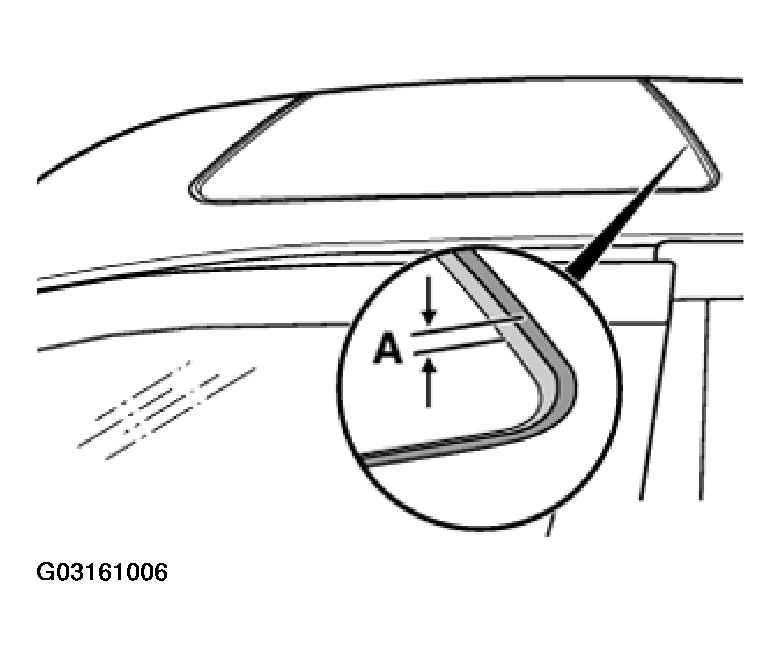

The slide/tilt sunroof lid must now lower at back by dimension (A).

(A) = 2-4 mm

Fig 3: Identifying Slide/Tilt Sunroof Lid Dimension "A"

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Swift movement of the slide/tilt sunroof can damage mechanism (guide) of the slide/tilt sunroof cassette. Do not move floating roof liner with force.

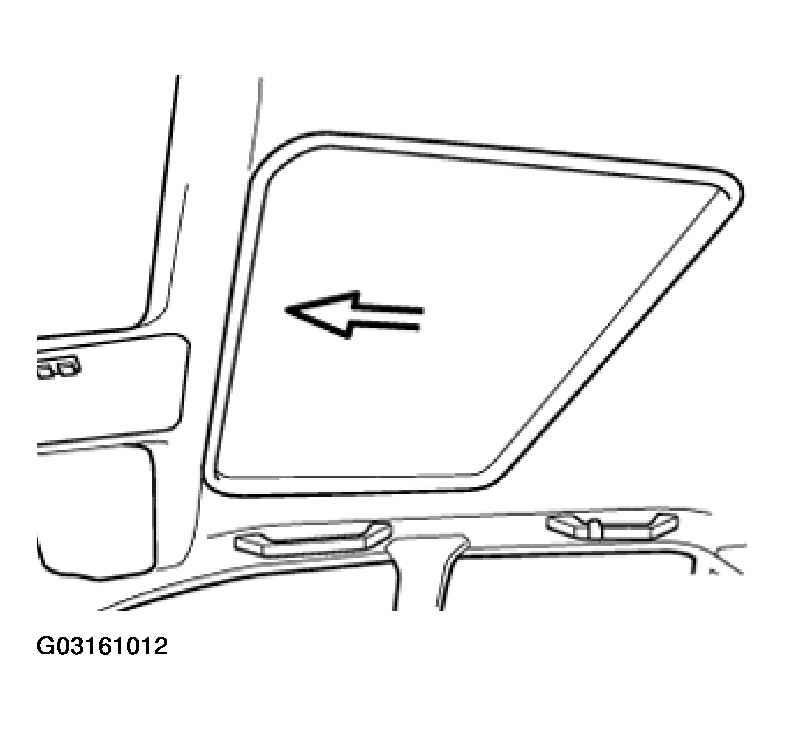

Slowly slide floating roof liner right back (with clean hands, or wearing protective gloves).

Fig 4: Sliding Floating Roof Liner Back

Courtesy of BMW OF NORTH AMERICA, INC.

Closing slide/tilt sunroof lid (zero setting).

CAUTION: It is now no longer possible to move slide/tilt sunroof lid backwards (damage to mechanism).

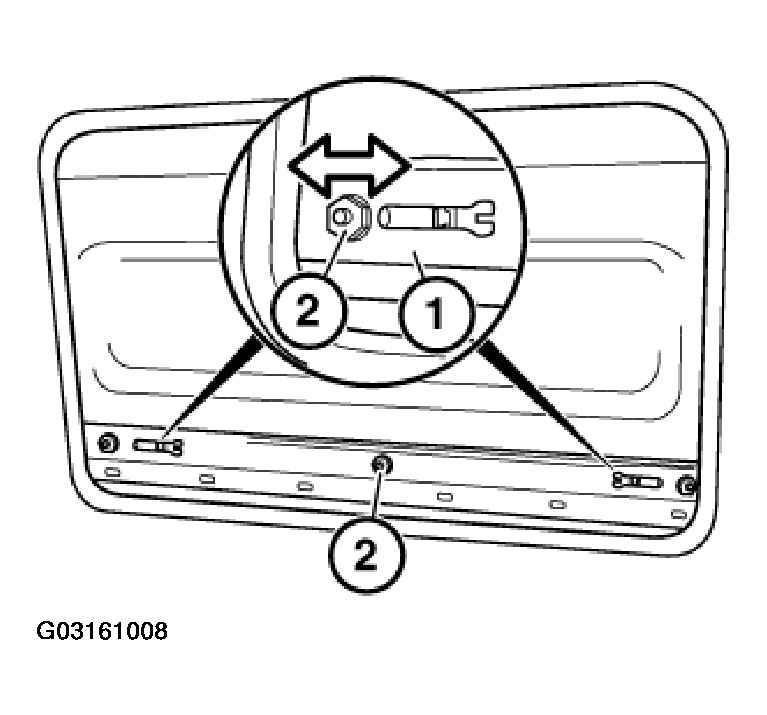

Rear Adjustment:

Unfasten nut (2) and replace.

Slide in adjusting wedges (1) on left and right until ideal setting is reached.

Press slide/tilt sunroof lid forwards, then tighten the outer nut (2) first of all.

Tightening torque, refer to 54 12 2AZ in SLIDE/TILT SUNROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

Fig 5: Slide/Tilt Sunroof Rear Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Front Adjustment:

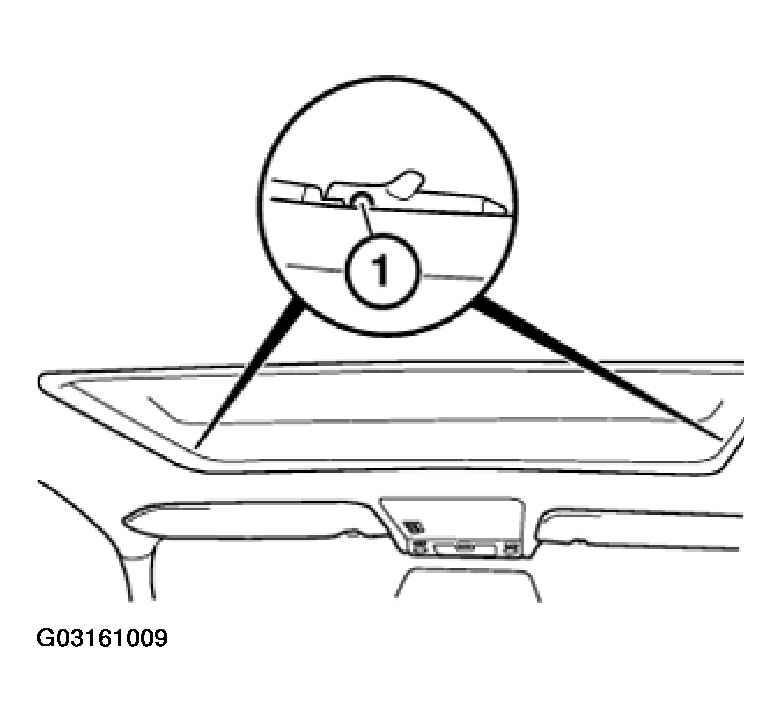

Loosen left/ right screws (1).

Push slide/tilt sunroof lid upwards or downwards until ideal setting is reached.

Tighten screws (1).

Installation:

Tightening torque, refer to 54 12 2AZ in SLIDE/TILT SUNROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

Replace removed screws (micro-encapsulation) or install old screws with Loctite 270.

Fig 6: Slide/Tilt Sunroof Front Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Press button to open roof briefly (1) then stop again (2) (inching function).

Fig 7: Pressing Sunroof Button

Courtesy of BMW OF NORTH AMERICA, INC.

The slide/tilt sunroof lid must now lower at back by dimension (A).

(A) = 2-4 mm

Fig 8: Identifying Slide/Tilt Sunroof Lid Dimension "A"

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Swift movement of the slide/tilt sunroof can damage mechanism (guide) of the slide/tilt sunroof cassette.

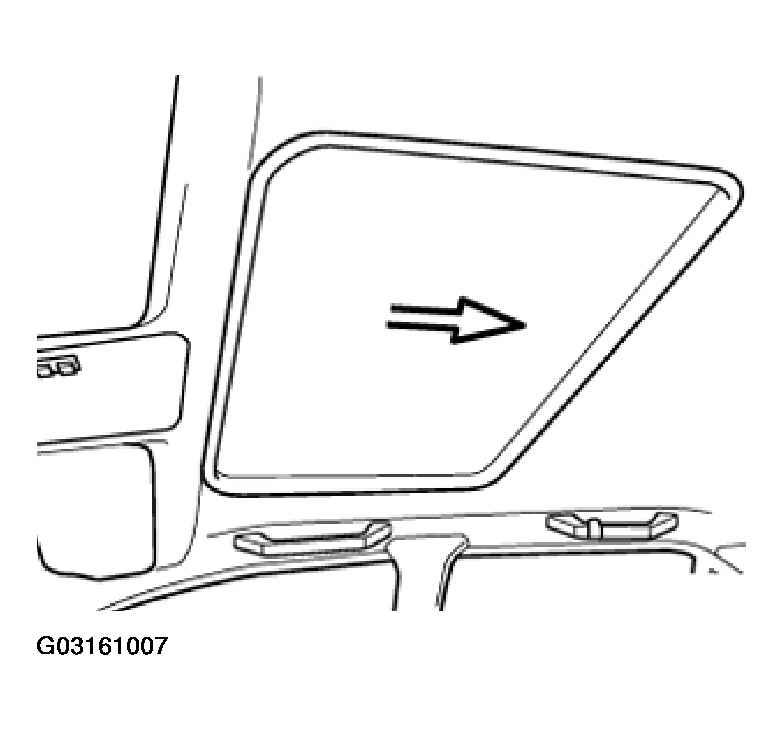

Pull floating roof liner forwards (with clean hands or wearing protective gloves).

Fig 9: Pull Floating Roof Liner Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function.
