54 12 003 Adjusting glass sliding/tilting sunroof lid: Procedure

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Initialize slide/tilt sunroof,

refer to 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE)

Ideal adjustment: Gaps (A) between sunroof and front and back of roof of equal size.

Slide special tool 00 9 340 between seal and lid. Checks (sliding out and in) must show special tool to display uniform resistance.

SUNROOF HEIGHT "A"

Height	front	flush or up to 1 mm lower
Height	rear	flush up to 1 mm higher

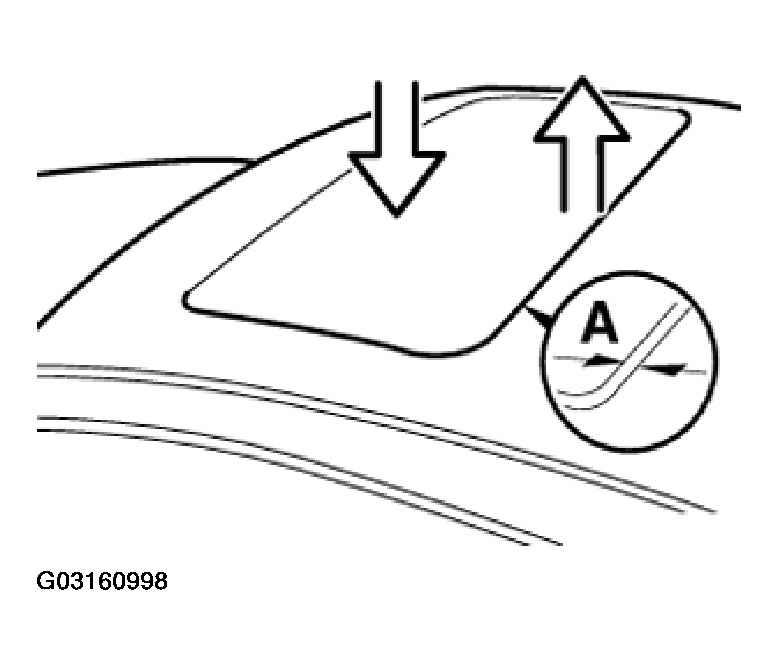

Fig 1: Checking Sunroof Height Dimension "A"

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly slide roof-lining frame towards rear up to dimension (A).

SLIDE ROOF-LINING FRAME DIMENSION

(A)	E38	80 mm
(A)	E39, E53	70 mm

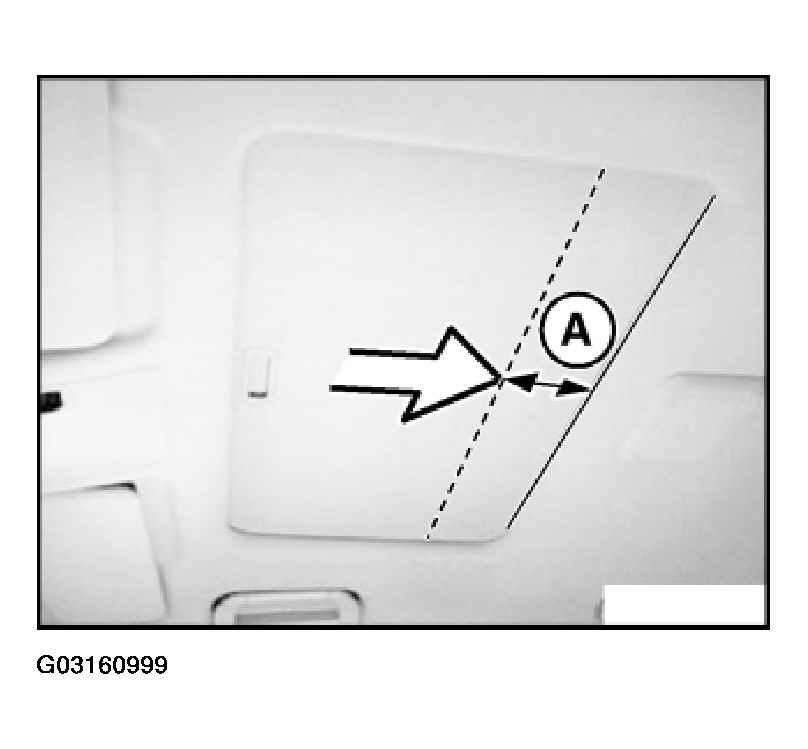

Fig 2: Slide Roof-Lining To Dimension "A"

Courtesy of BMW OF NORTH AMERICA, INC.

Press switch in direction of "raise position" (fan setting) until lid is raised to max. setting.

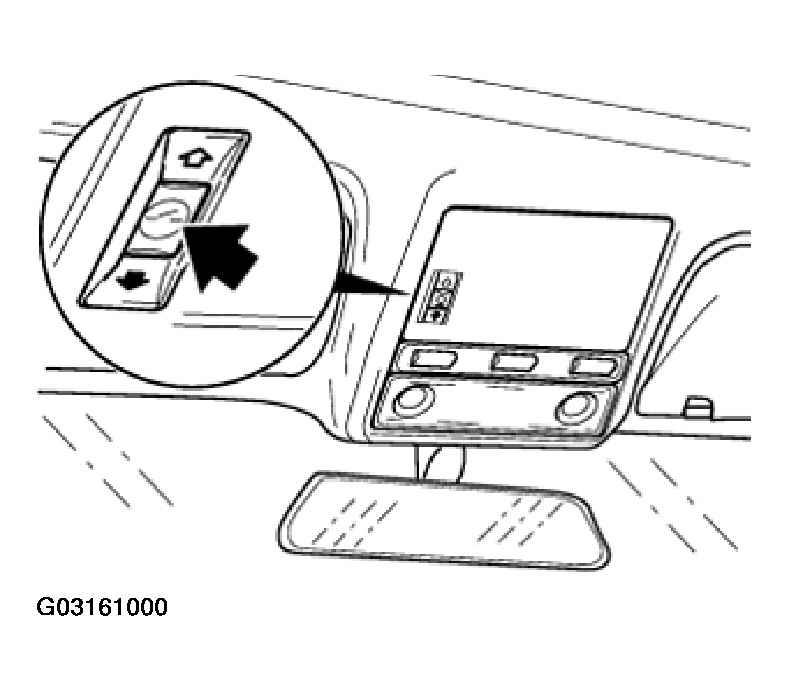

Fig 3: Pressing Sunroof Switch In Direction Of "Raised Position"

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Grasp the bellows by hand only at the first fold (1) (risk of damage).

Detach bellows starting from center (A) towards front and rear (B) from glass slide/tilt sunroof lid (2).

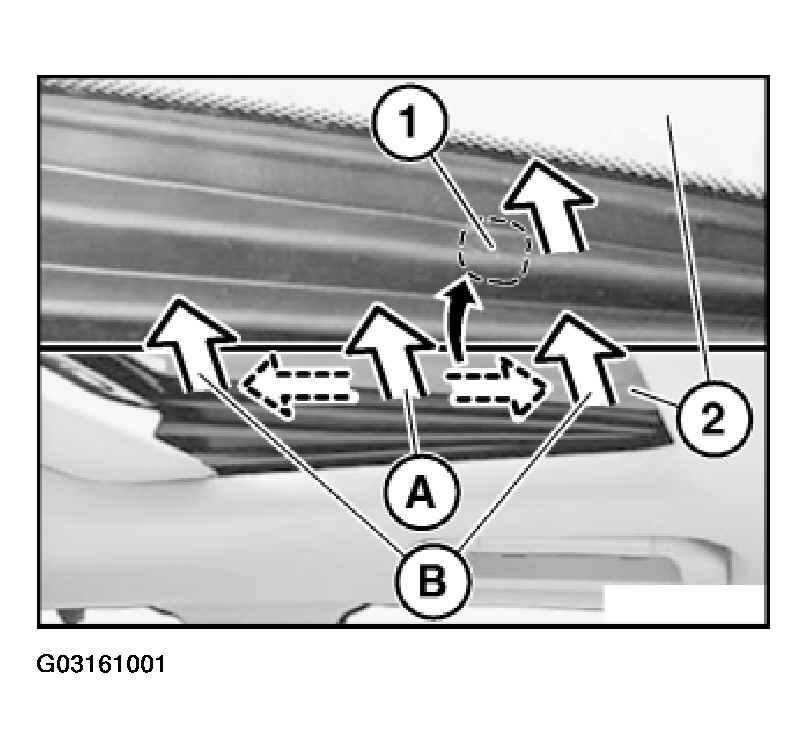

Fig 4: Detaching Bellows

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) and (2) with special tool 00 2 130.

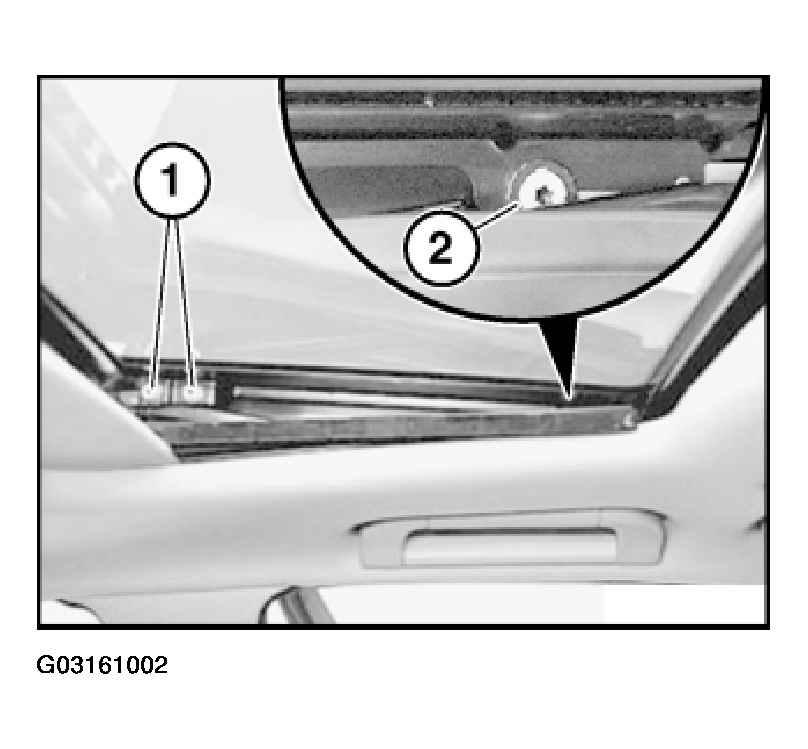

Fig 5: Slackening Bellows Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pull bellows down until screw (2) is accessible. Loosen screws only to the extent that the glass sunroof lid can only just be adjusted.

Close glass sunroof lid (zero position).

Press glass slide/tilt sunroof lid forwards, press downwards at front and rear until ideal position is achieved and tighten down screws.

Installation:

Tightening torque, refer to 54 12 2AZ in SLIDE/TILT SUNROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

Check function.

Slowly pull roof-lining frame completely forwards.

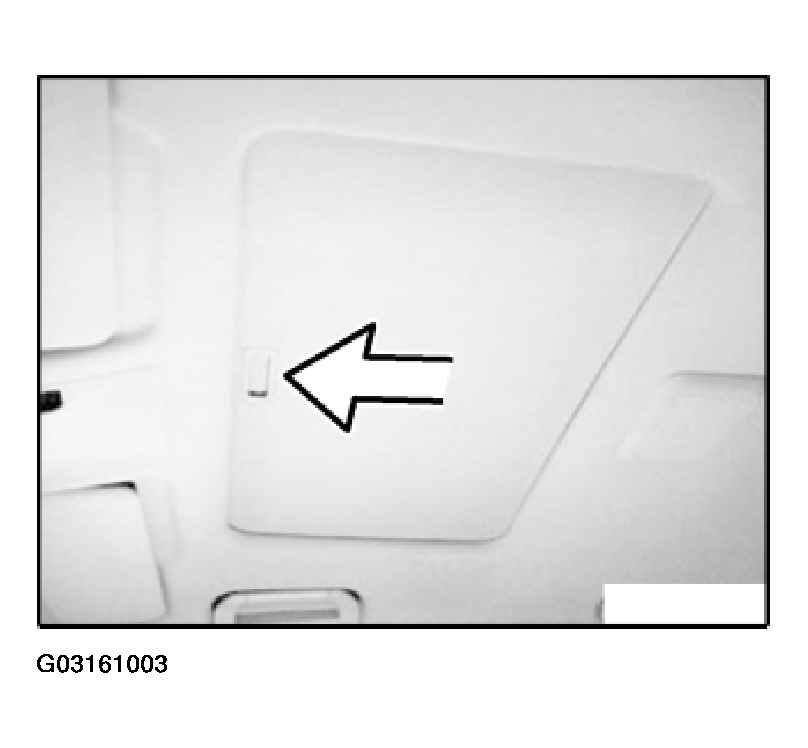

Fig 6: Pull Roof-Lining Frame Forwards

Courtesy of BMW OF NORTH AMERICA, INC.
