52 24 390 Removing and installing or replacing left or right rear headrest

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Move headrest up as far as possible.

Press lightly against guides in forward and backward direction and pull out in upward direction.

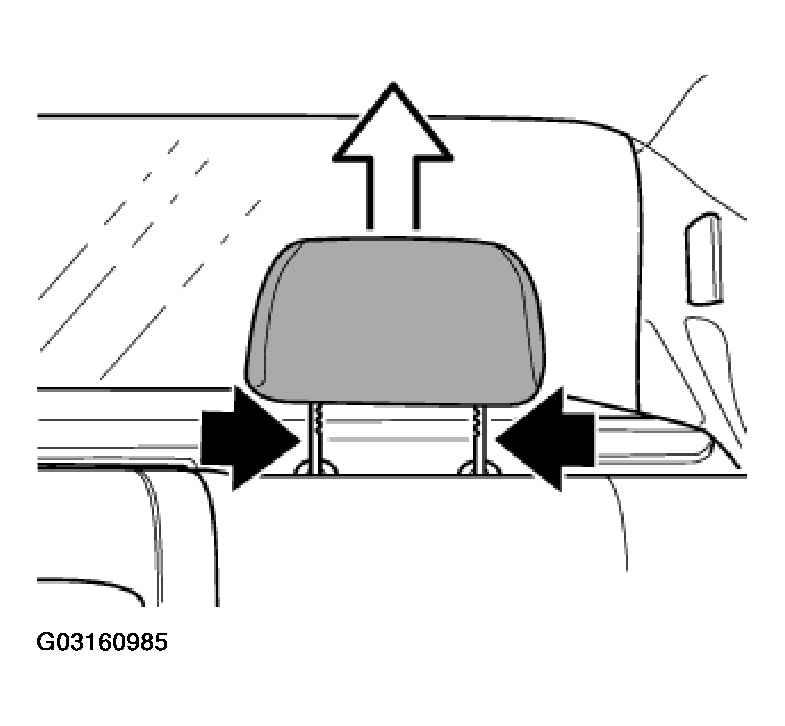

Fig 1: Removing Rear Headrest

Courtesy of BMW OF NORTH AMERICA, INC.

Twist and pull out guides.

Installation:

Notches must face each other.

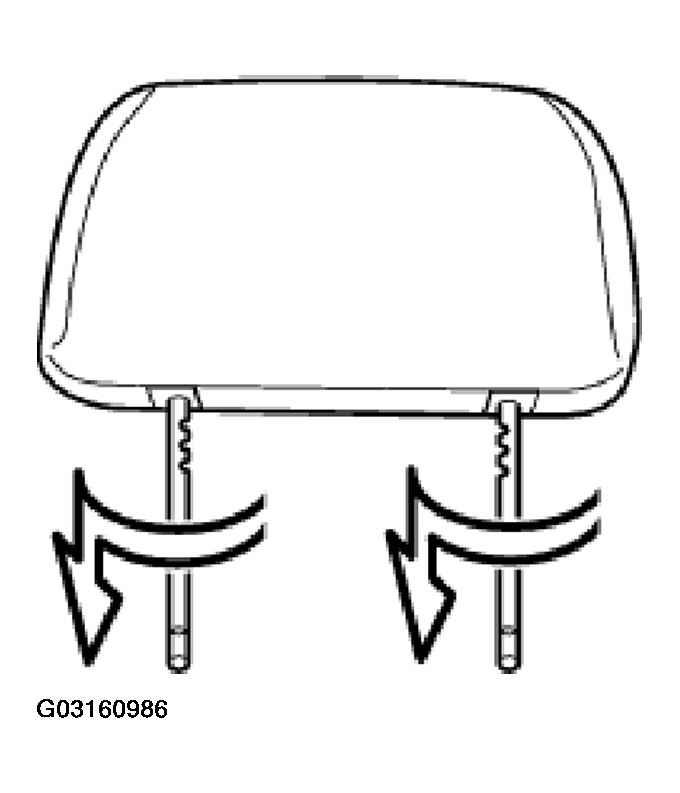

Fig 2: Installing Rear Headrest

Courtesy of BMW OF NORTH AMERICA, INC.
