52 26 305 Removing and installing/replacing lock cylinder for left/right rear seat backrest (through-loading)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

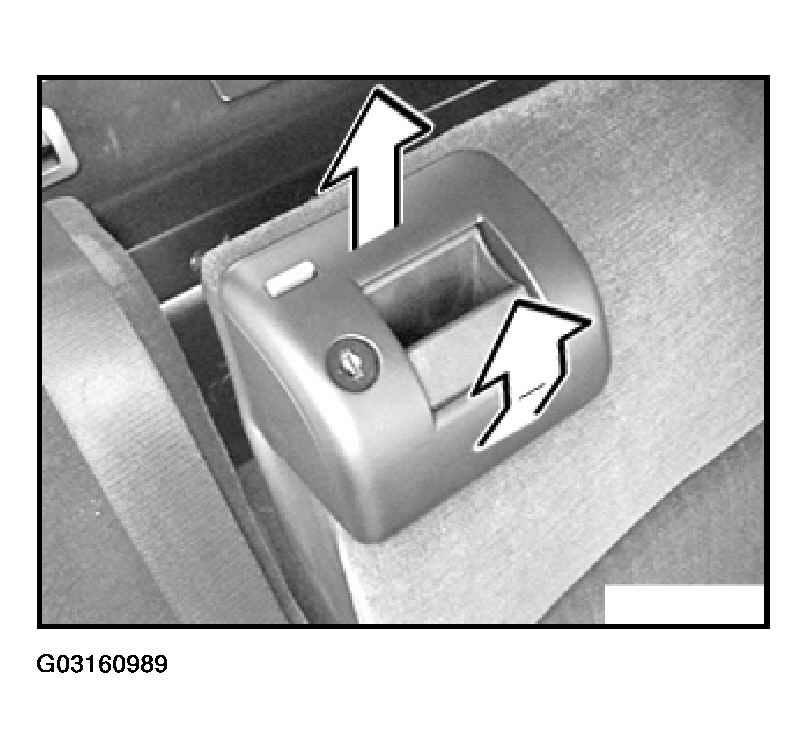

Unclip plate.

Fig 1: Removing Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect side of cover (1).

Fig 2: Removing Side Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

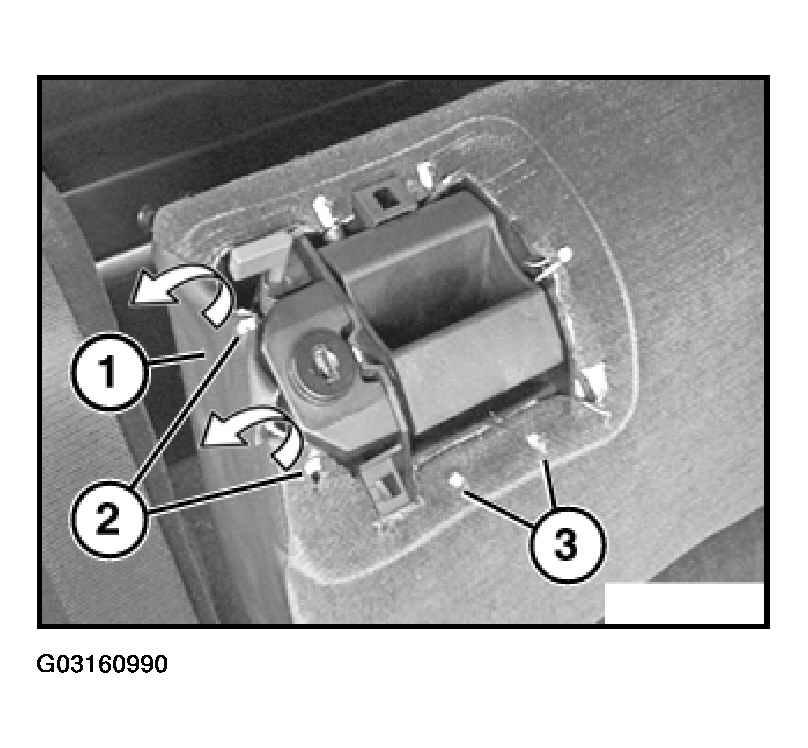

Version With Leather Cover:

If necessary, shorten cover clips (2) by approx. one half.

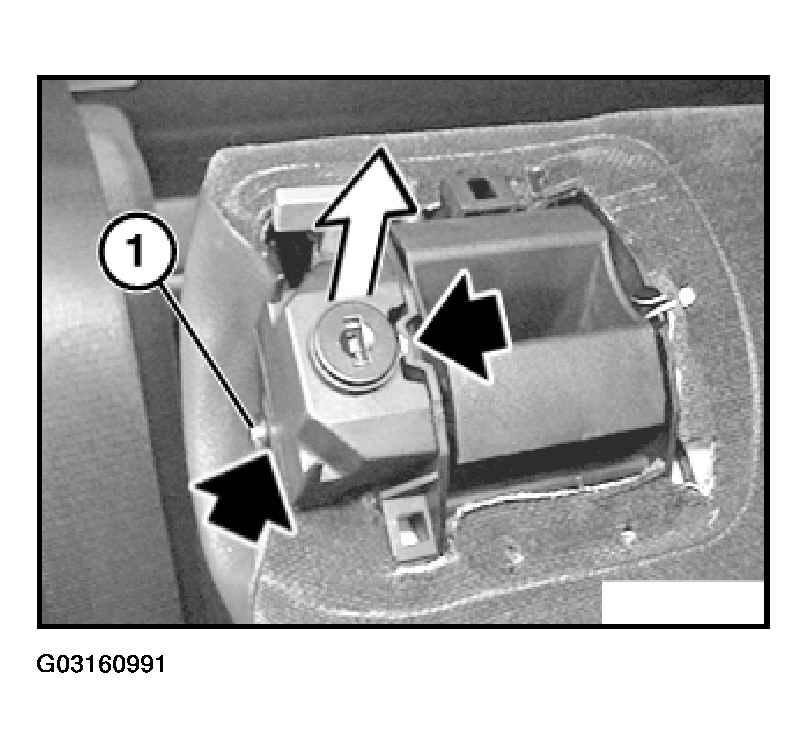

Unfasten retaining disc (1).

Unclip housing at side and top and pull out.

Fig 3: Removing Lock Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The cover must be attached correctly in the front of the cover clips (3).

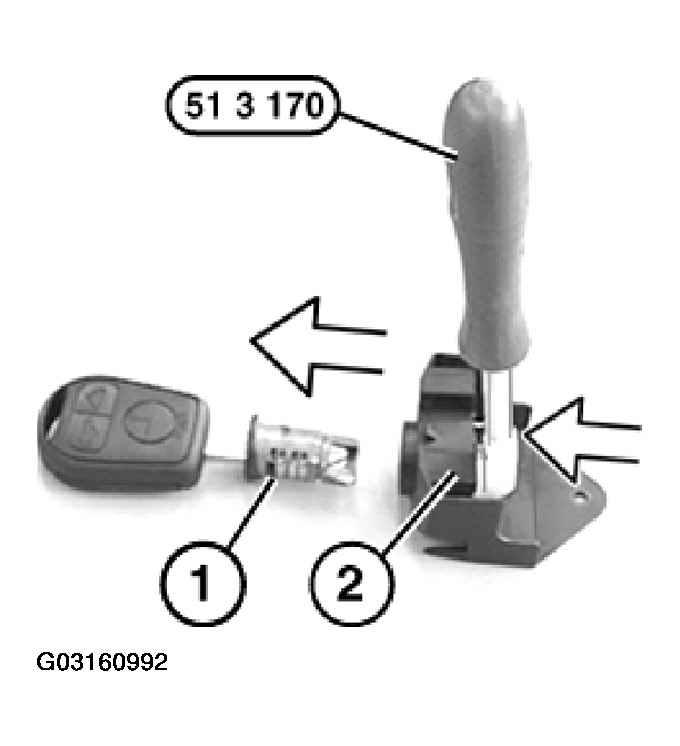

Insert vehicle key in lock cylinder (1).

Unlock lock cylinder (1) in housing (2) with special tool 51 3 170 and pull out with vehicle key.

Fig 4: Removing Rear Seat Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
