Replacement Of Support

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Cut through all clips and remove seat cover from support (foam rubber section).

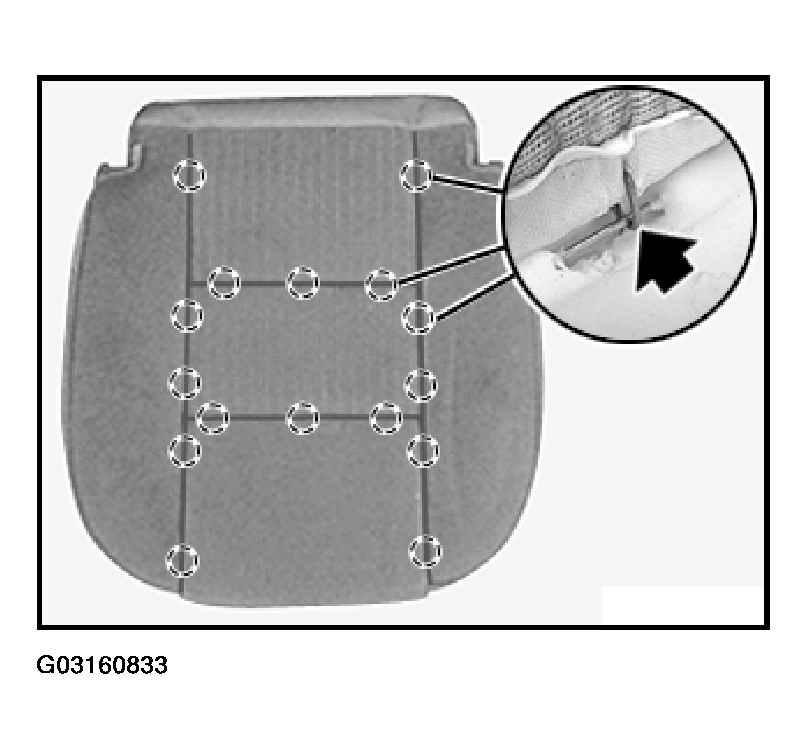

Fig 1: Removing Bottom Seat Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new clips (2) with special tool 52 0 050.

Support
Clip
Trim thread in support
Trim thread in cover
Cover

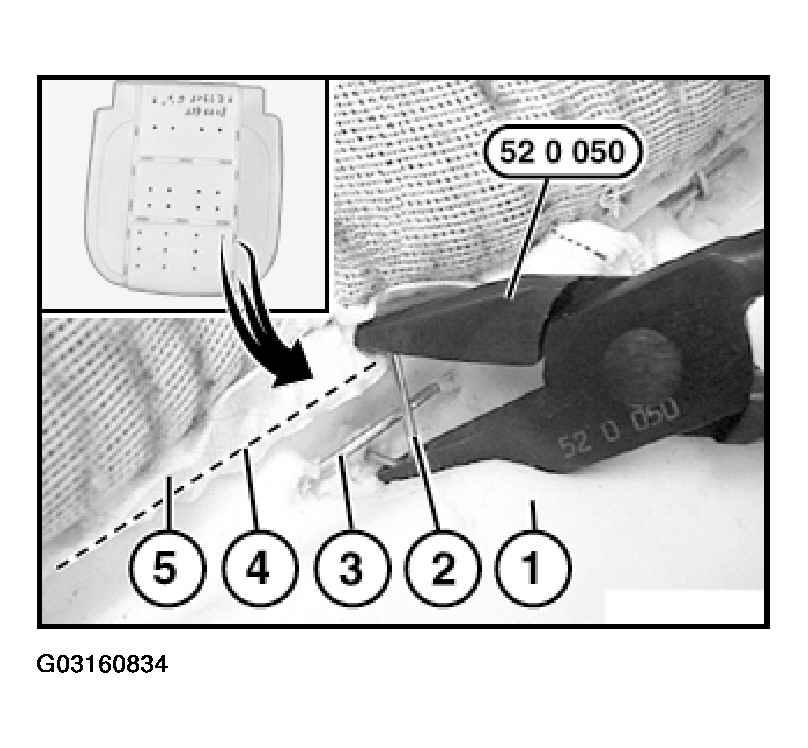

Fig 2: Installing Bottom Seat Support

Courtesy of BMW OF NORTH AMERICA, INC.

Only Passenger Seat (Replacement Of Support):

Installation:

Fit new sensor mat.

Mark out points (2) on sensor mat (1) for passenger seat allocation identification on liner and attach to foam rubber. Guide connector through the bore (3).

Folds as illustrated in diagram are not permitted!

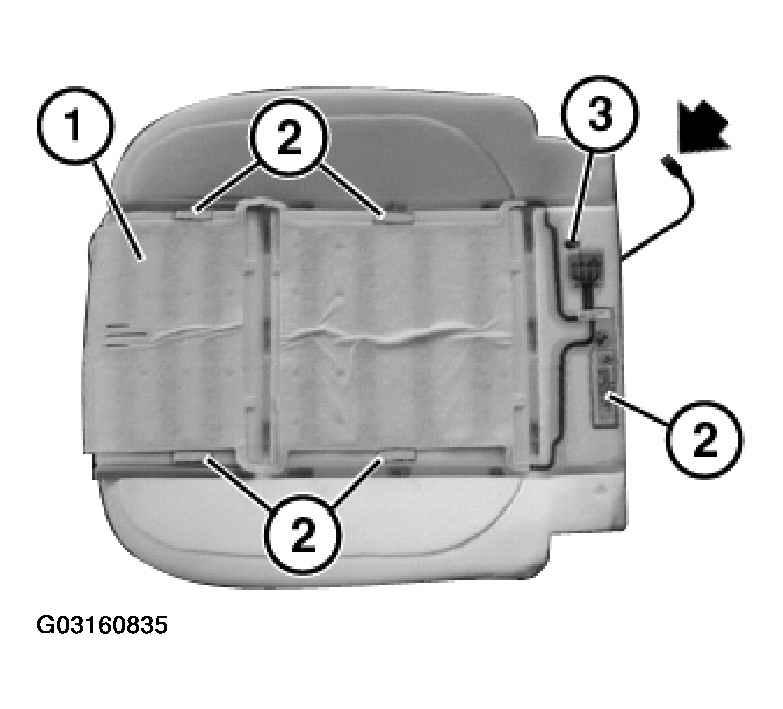

Fig 3: Fitting New Sensor Mat (Passenger Seat Only)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Replacing Support" ends here.
