Only Passenger Seat (Replacement Of Sensor Mat)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove sensor mat (1) for passenger seat allocation identification, ensuring that no large areas of foam at damaged marked points (2) (malfunction of passenger seat allocation identification). Guide connector through the bore (3).

Folds as illustrated in diagram are not permitted!

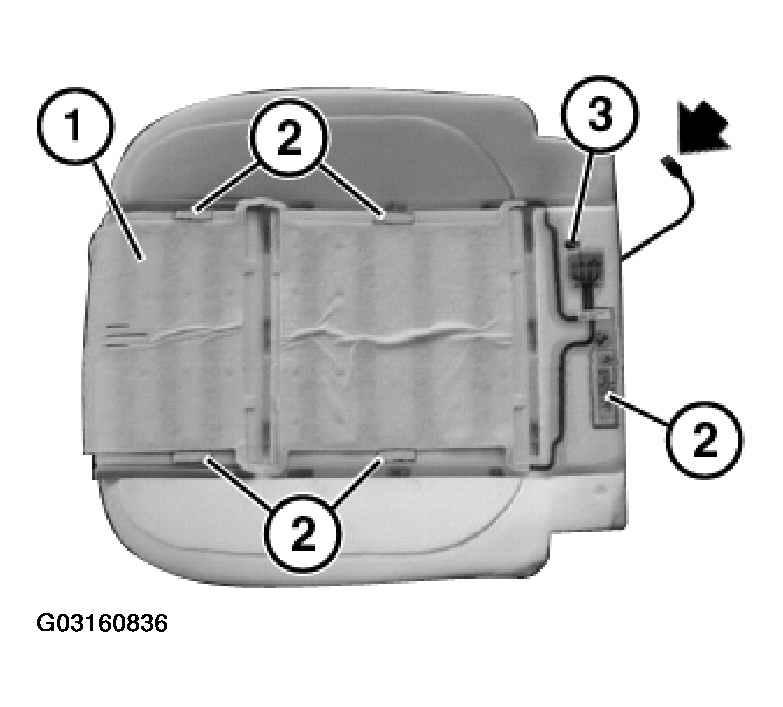

Fig 1: Removing Sensor Mat For Passenger Seat

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Replacing Sensor Mat" ends here.
