52 13 390 Removing and installing/replacing front headrest (normal/manual)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Pull headrest upwards firmly.

If necessary, pull headrest to the uppermost notch upwards and swing to and fro at the same time.

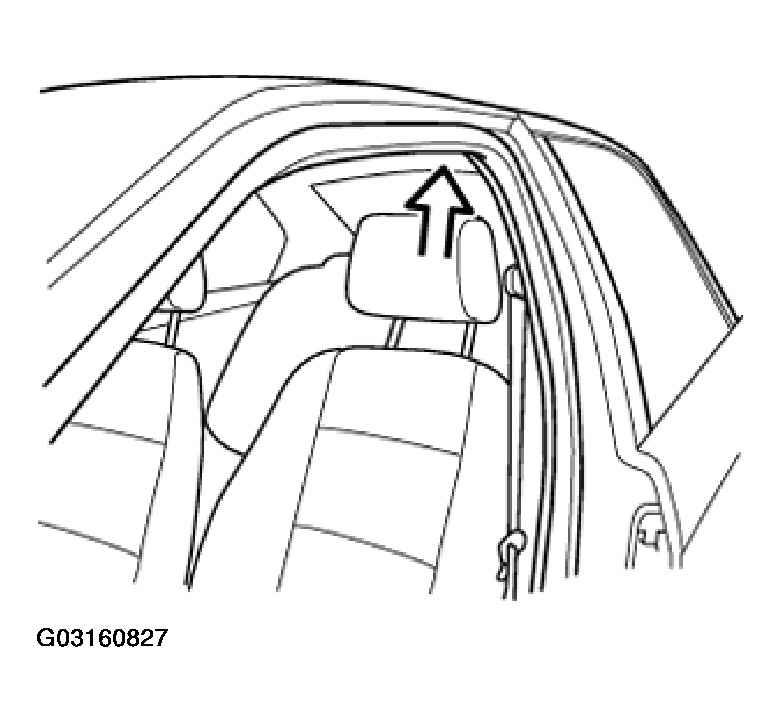

Fig 1: Removing Headrest

Courtesy of BMW OF NORTH AMERICA, INC.
